120w 0-10V dimmable led power supply IP67 aluminum 12v

120w 0-10V dimmable led power supply；12v 120w 0-10V dimmable led power supply；

item no.:
SMT-012-120VD
brand:
SMARTS
Input Voltage:
100-277VAC
Output Voltage:
120W
Output Current:
10A
Working Mode:
Constant Voltage
Certification:
CE SAA ROHS
Warranty:
3 years

inquiry now

product details

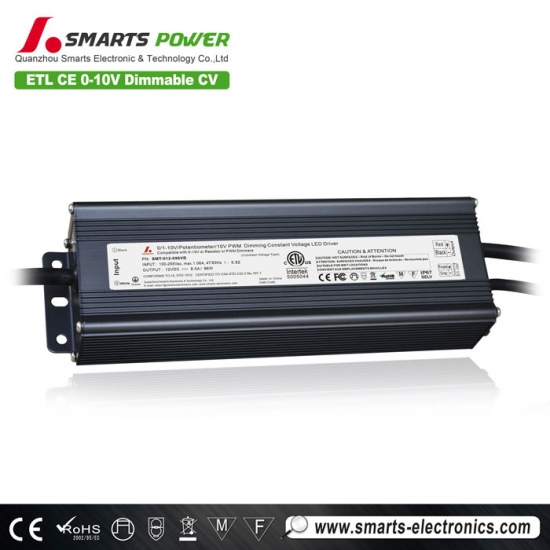

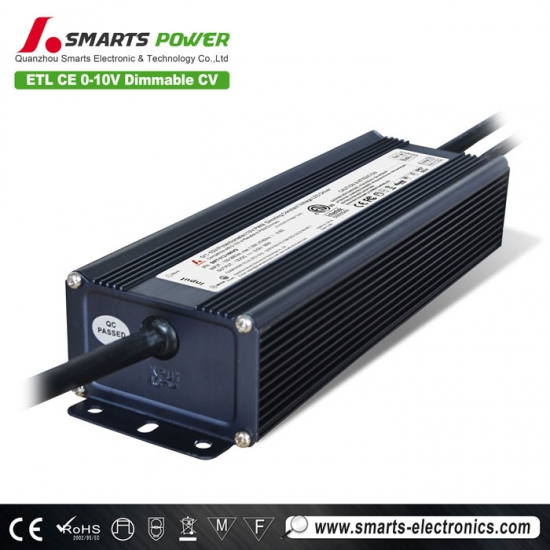

120w 0-10V dimmable led power supply IP67 aluminum 12v

Specifications
Dimming mode: 0/1-10v constant voltagedimmable led driver working mode : constant voltage type I/P: 100-265vAC/ 170-375vAC /47-63Hz Ambient temp.:-20 degree~40 degree full load overload,over heat, over voltage, short circuit protection We give 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Product parameters

Model		SMT-012-120VD		SMT-024-120VD		SMT-036-120VD
Output	DC Voltage	12V		24V		36V
	Voltage Accuracy	±0.5V
	Rated current	0-1.0A	0-5.0A			0-3.33A
	Rated power	120W	120W			120W
	Ripple&noise Max.	200mVp-p 350mVp-p	250mVp-p 400mVp-p			290mVp-p
Input	Voltage Range	100-130VAC，170-265VAC
	Frequency Range	47～63HZ
	Power Factor ( Typ.）	>0.90@110V ,220VAC			>0.90@110V,220V
	Full Load Efficiency（Typ.）	>88%			>88%
	AC Current（Typ.）	1.263A/120VAC 0.891A/170VAC 0.689A/220VAC 0.572A/265VAC
	Leakage current	﹤0.25mA/110V,220VAC
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	≦315VAC
	Over temperature	100℃±10℃ shut down o/p voltage, re-power on to recover
Environment	Working TEMP.	-40～+60℃
	Working Humidity	20～95%RH,non-condensing
	Storage TEM.,Humidity	-40～+80℃，10～95%RH
	TEMP.coefficient	±0.03%/℃（0～50℃）
	Vibration	10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-2-13. IP67
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≧50%Load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level （surge4KV）
Others	Weight	1.32Kg
	Size	23068.543mm（LWH）
	packing	329279176mm/10pcs
	Notes	1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation .

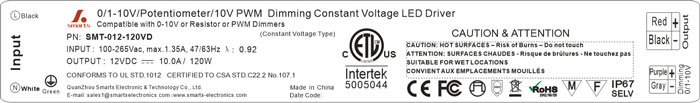

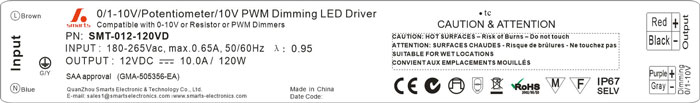

label

Packaging & Shipping

120w 0-10V dimmable led power supply IP67 aluminum 12v
Net weight (g)	Gross Weight/ctn	Qty/ctn	Carton size(mm)
1300 g	15 kg	10 pcs	329279176mm
