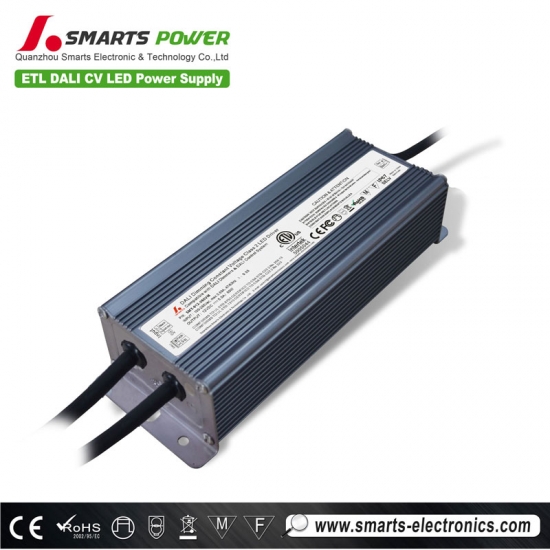

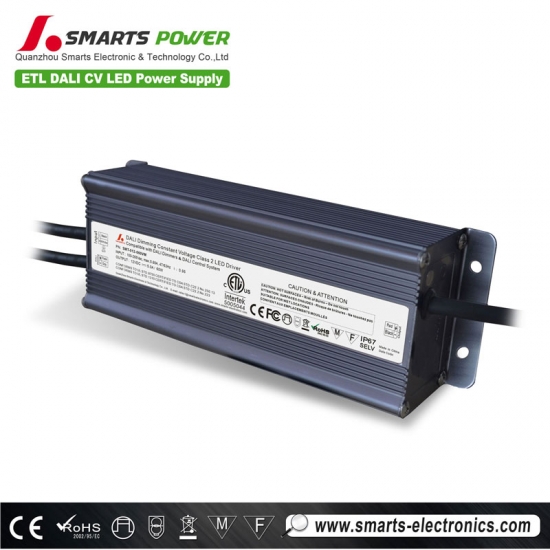

12V 24V 36V constant voltage 60W DALI dimmable led driver
SMT-012-060VM is the 3 year warranty ETL FCC CE 12V 24V 60W DALI & Push-Dim 2 in 1 dimmable LED driver whcih Compliance to worldwide safety regulations for lighting and Suitable for dry/damp/wet locations.
Environment of 60w dimmable led driver:
- Working TEMP. -40~+50℃
- Working Humidity 20~95%RH,non-condensing
- Storage TEM.,Humidity -40~+80℃,10~95%RH
- TEMP.coefficient ±0.03%/℃(0~50℃)
- Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Protection
- Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
- Waterproof rate: IP67
- Over Current: <1.4*Iout
- Over temperature: 100℃±10℃ shut down o/p voltage, re-power on to recover
Safety&EMC
- Safety standards EN61347-1 EN61347-2-13
- Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
- EMC EMISSION Compliance toEN55015,EN61000-3-2 (>50%load)
- EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
Others
- Weight 1Kg
- Size 210*69*45mm(L*W*H)
- packing 355*215*215mm/10pcs/CTN 220*70*50 mm for inner box
60W DALI dimmable driver Mechanical Specification
- Input Rubber cable H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
- Input with Live Wire(L) Neutral Wire (N)
- Output LED SEC (LED+),(LED-)
- Signal Dimming (DA1), (DA2) DALI Non polar!
-
Dimming Operation of dali led driver 12v:
- Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address*Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
