Non-dimmable LED Driver

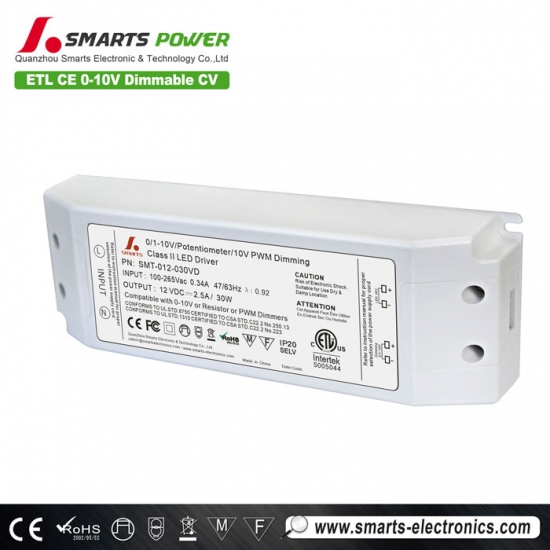

12v 30w Constant Volatge 0-10v/PWM dimming led driver

SMT-012-030VD is the 12v 30w Constant Voltage 0-10v dimmable led driver which is compatible with most 0-10v/1-10V/PWM analog dimmers from; Lutron, Clipsal, Dynalite, etc. Each unit is backed by our 3 years warranty, ETL FCC CE RoHS approved and allows you the extra benefit of flicker free dimming.
  • item no.:

    SMT-012-030VD
  • brand:

    SMARTS
  • Input Voltage:

    100-265V
  • Output Voltage:

    30W
  • Output Current:

    2.5A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL FCC
  • Warranty:

    3 Years
inquiry now
product details

12v 30w Constant Volatge 0-10v/PWM dimming led driver



SMT-012-030VD is the dimmable constant voltage led driver. This transformers is compatible with most 0-10v/1-10V/PWM analog dimmers from; Lutron, Clipsal, Dynalite, etc. Each unit is backed by our 3 years warranty,ETL FCC CE RoHS approved and allows you the extra benefit of flicker free dimming.

  30W dimmable driver Mechanical Specification


Model

SMT-012-030VD

SMT-024-030VD

Output

DC Voltage

12VDC

24VDC

voltage Accuracy

±3%

Current

2.5Amp

1.25Amp

Rated power

30W

30W

Input

Voltage Range

100265VAC

Frequency Range

4763HZ

PF(Typ.

PF>0.90

Full Load

EfficiencyTyp

>88%

>88%

AC Current (Typ.

0.34A

0.17A

Leakage current

0.7mA/110-220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environme

Working TEMP.

-40+50℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13. IP40

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Others

Weight

0.4Kg

Size

180*60*35mmL*W*H

packing

355*215*215mm/20pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110v~220VAC input ,

   rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

   pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

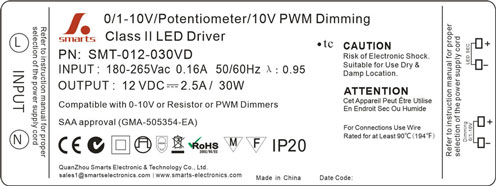

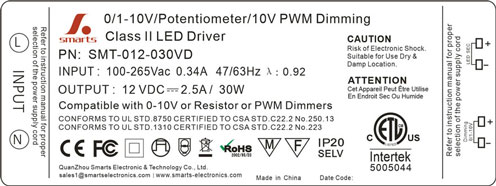

  Label

12v 30w Constant Volatge 0-10v/PWM dimming led driver

0-10v/PWM dimming led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



led driver 12v 30w



※Input with Live Wire(L)  Neutral Wire (N)

※Signal Dimming (0/1-10V)(DIM+), (DIM-)

※Output LED SEC (LED+),(LED-)



 Dimming Operation 0-10v dimming driver


※Built-in 3 in 1 dimming function, IP40 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-

※Reference resistance value for output current adjustment (Typical)



 We have 7 kinds of led drivers or led power supply


Constant Voltage LED Driver;
Constant Current LED Driver;
Triac CC&CV Dimmable LED Driver
0-10v  CC&CV Dimmable LED Driver
DALI CC&CV Dimmable LED Driver
Power Adapter

Switching Power Supply

All of our drivers are got CE ROHS listed .OEM Welcome.



 Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
