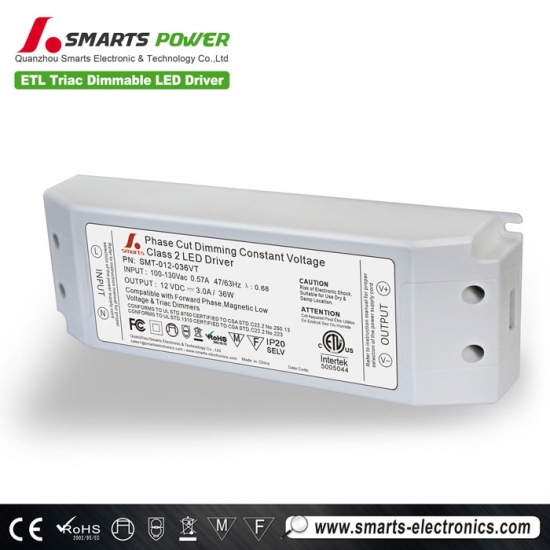

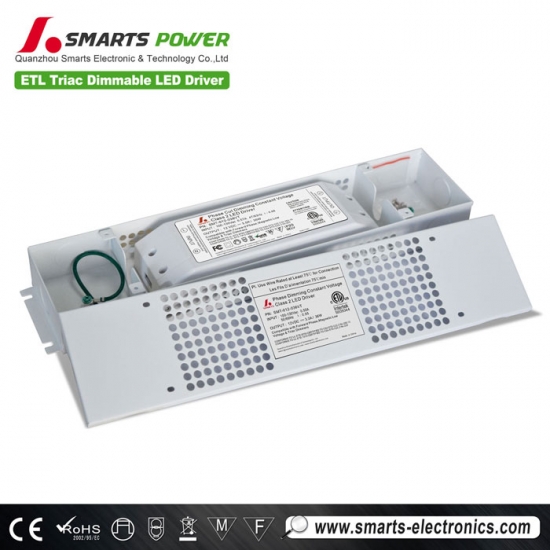

SMT-012-036VT is the 12v 36w Constant Voltage Triac Dimmable Power Supply, which is suitable for leading edge and trailing edge TRIAC dimmers and lighting systems.Compatible with Forward phase, Triac,MLV Dimmers or Reverse phase,Triac,dimmer.LUTRON,CLIPSALI,DYNALITE,LEVITON,VARILIGHT,BTICINO.PHILIPS,CRESTRON,RAKO,JUNG,V-PRO,BUSCH-JAEGER,BERKER,GIRA,ELKO,EPV,etc. brand of dimmer are all sitable for the type triac dimmable led driver.

model		SMT-012-036VT	SMT-024-036VT	SMT-036-036VT
Output	DC Voltage	12VDC	24VDC	36VDC
	Voltage Accuracy	±5%	±5%	±5%
	Rated current	3.00Amp	1.50Amp	1.00Amp
	Rated power	36W	36W	36W
Input	Voltage Range	90-135VAC / 180'250VAC
	Frequency Range	47'63HZ
	Power Factor ( Typ.)	PF>0.92/110V ; PF>0.93/220V ; PF>0.935/250V
	Full Load Efficiency(Typ.)	>84%	>84%	>84%
	AC Current(Typ.)	0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
	Leakage current	<0.27mA/110VAC; <0.25mA/220VAC
Lablel

 30W,36W dimmable power supply Mechanical Specification

• Input AC (L),AC(N)
• Output(DIM+),(DIM-)

 Dimming Operation of dimmable power supply

• Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
• Compatible with Leading edge or tailing edge triac dimmers.
• please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

 Derating Curve

• Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

 Connecting Diagram

 Simple Connection Diagram
