24 volt low voltage lighting electrical transformers

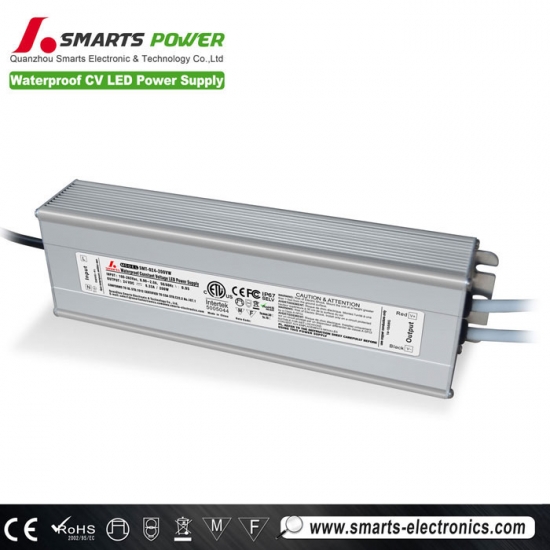

Smarts Electronics' 24 volt transformer has robust cover and waterproof connections and cables, it is your best option to power any LED Strip or any outside LED lighting applications. It also includes two drilling holes to allow screwing it to a wall for a sturdier installation.
The 120V AC input has 3 wire connections: one for the live wire, one for the neutral wire and one for the ground. The 24V DC output features 4 connections: two positive and two negative, provided with 18 gauge wire.
Compliant with worldwide safety regulations for lighting, the Smarts Electronics hard wired power supply has been the electrician’s choice for several years!
This Low Voltage Transformer lets you safely supply power to popular low voltage lighting systems like recessed can lights, pendant lights and outdoor light fixtures.
|
Features of electrical transformers
●IP67 design for indoor or outdoor installations
● High PF>0.95, High Efficiency>0.91
● Input Voltage: 100-265VAC , 47~63Hz
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through ETL CE,RoHS Certification
● 2 years warranty
|
| SPECIFICAION | |||||
| MODEL | SMT-012-200VW | SMT-024-200VW | SMT-036-200VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 16.67A | 8.33A | 5.55A | ||
| CURRENT RANGE | 0~16.67A | 0~8.33A | 0~5.55A | ||
| RATED POWER | 200W | 200W | 150W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110VAC, 220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | ||||
| INPUT | VOLTAGE RANGE | 90~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | >0.95@110VAC ; >0.98@220VAC | ||||
| EFFICIENCY(Typ.) | ﹥91% | ||||
| AC CURRENT(Typ.) | 2.10A@110VAC; 1.01A@220VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||

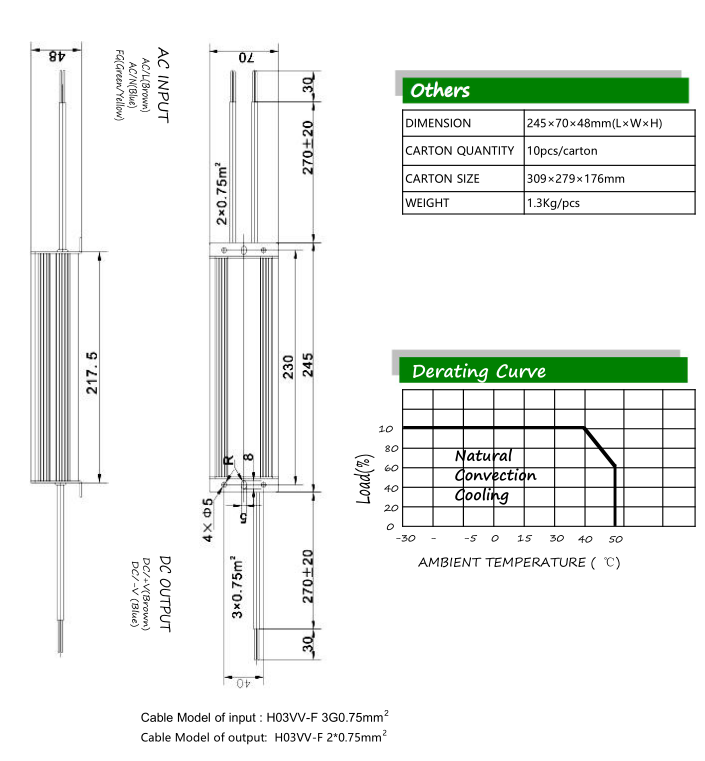

| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC IP-GND:3.0KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
