24volt 20w constant voltage led driver

24volt 20w constant voltage led driver

24volt 20w Constant Voltage Led Driver is IP67 design for indoor or outdoor installations

 SPECIFICAION of 20w led transformer

SPECIFICAION
MODEL		SMT-012-020WW	SMT-024-020VW	SMT-036-020VW
OUTPUT	DC VOLTAGE	12V	24V	36V
	RATED CURRENT	1.66Amp	0.83Amp	0.55mp
	CURRENT RANGE	0~1.66A	0~0.83A	0~0.55A
	RATED POWER	20W	20W	20W
	RIPPLE&NOISE(max)	150mV	150mV	150mV
	CURRENT TOLERANCE	±0.5V	±0.5V	±0.5V
	SETUP RISE TIME	80ms/110,220VAC	81ms/110,220VAC	82ms/110,220VAC
	HOLD UP TIME(Typ.)	60ms/110-220VAC	60ms/110-220VAC	60ms/100-220VAC
INPUT	VOLTAGE RANGE	100~265VAC
	FREQUENCY RANGE	50~60Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	>83%	>83%	>83%
	AC CURRENT(Typ.)	3.5A/110,220VAC	2.0A/110,220VAC	1.5A/110,220VAC
	INRUSH CURRENT (Typ.)	COLD START 50A/110~220VAC
PROTECTION	Short circuit	Protection type:recovers automatically after condition is removed
	Overload	overload protected@145-160% above peak rating
	Over temperature	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20~99% RH non-condensing(Waterproof)
	STORAGE TEMP.,HUMIDITY	-40~+80℃,10~99%RH
SAFETY&EMC	SAFETY STANDARDS	UL/ROHS/CE Mark(EMC,LVD),IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
		EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE	1.All parameters NOT specially mentoned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
	3.Tolerance:includes set up tolerance,line regulation and load regulation.

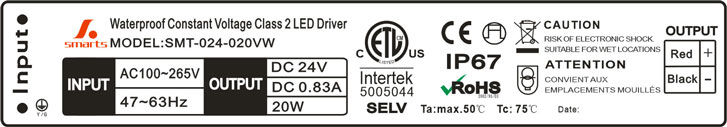

Label

 Feature of 20w led driver

• IP67 design for indoor or outdoor installations
• Protections:Short circuit/Overload/Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Suitable for LED lighting
• Products through,CE,RoHS Certification
• 24 Months warranty

 NOTE of constant voltage led driver

• All parameters NOT specially mentoned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
• Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
• Tolerance:includes set up tolerance,line regulation and load regulation.

 Mechanical Specification

 What Service we can supply?

1. All inquiries will be replied within 24 hours


2.  Professional manufacturer,welcom to visit our website


3. OEM/ODM avaliable:
   A.Print logo on our product;
   B. Customized specification;
4. After Sales-Service:
   A. All products will have 100% burn-in test and strictly quality test before shipping;
   B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
