Non-dimmable LED Driver

3 years warranty 2400mA 80w triac dimmable LED power supply

triac dimmable constant current LED driver ; 2400mA 80w triac dimmable LED power supply ; switching power supply
  • item no.:

    SMT-034-2400CT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
inquiry now
product details

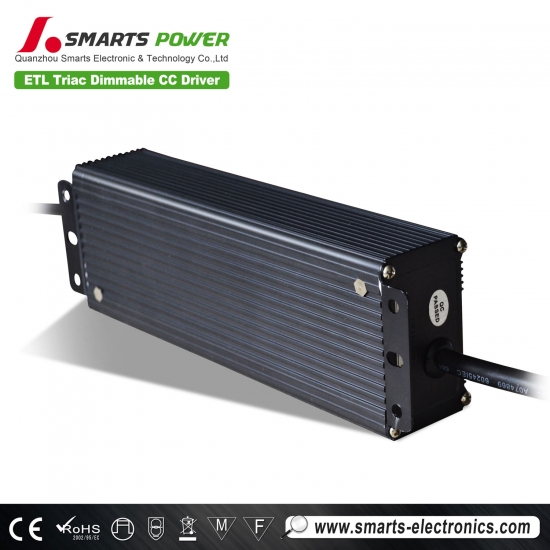

3 years warranty 2400mA 80w triac dimmable LED power supply


  Product parameters


 Model

Input

voltage(AC  V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power

(DC W)

Working Temp.

Protection grade

SMT-115-0700CT

  90-135V/
    170-265V

47~63HZ

 80~115V

0-700mA

     80W

-25~50°C

IP67

SMT-090-0900CT

90-135V/
    170-265V

47~63HZ

70-90V

0-900mA      80W

-25~50°C

IP67

SMT-080-1050CT

90-135V/
    170-265V

47~63HZ

55-80V

0-1050mA      80W

-25~50°C

IP67

SMT-067-1200CT

90-135V/
    170-265V

47~63HZ

    40-67V 0-1200mA     80W

-25~50°C

IP67

SMT-058-1400CT

90-135V/
    170-265V

47~63HZ

40-58V

0-1400mA     80W

-25~50°C

IP67

SMT-040-2000CT

90-135V/
    170-265V

47~63HZ

25-40V

0-2000mA     80W

-25~50°C

IP67

SMT-034-2400CT

90-135V/
    170-265V

47~63HZ

15-34V

0-2400mA      80W

-25~50°C

IP67


Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Protection & Environment& Safety & EMC

IP67 triac ELV dimmable led drivers 1400ma/2400ma




  Specifications

  • Dimming mode: triac dimmable
  • working mode:constant current type
  • PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
  • Full Load Efficiency (Typ.):  >85%
  • AC Current(Typ.): 0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC
  • Leakage current:  < 0.27mA/110VAC;  < 0.25mA/220VAC
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

  Features

  • High efficiency,save energy ,protected environment
  • Output constant current
  • Input range :90-135VAC / 170-265VAC
  • Built-in PFC function,PF >0.9
  • Efficiency > 85%
  • Protections:Short circuit/over Voltage
  • Fully isolated plastic case
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Meet to safety standard and EMC.
  • 100% full load burn-in test.
  • Brand electrotronic components.
  • ROHS material.

  Environment

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

  Safety

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

  Applications

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
