Non-dimmable LED Driver

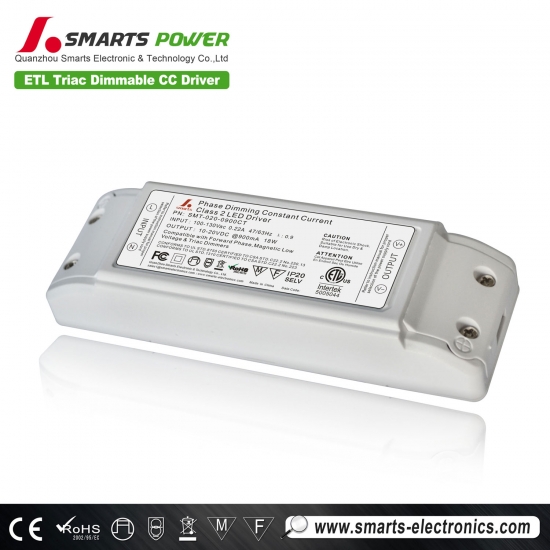

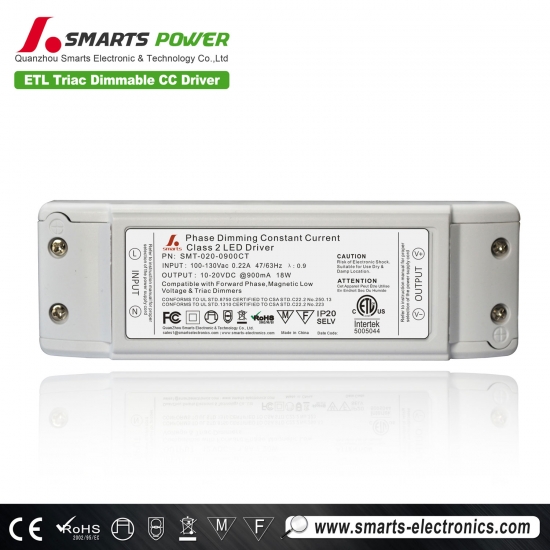

3 years warranty constant voltage dimming led driver 18watt 900ma LED transformer

SMT-020-0900CT is our best selling constant voltage dimming led driver with 3 years warranty
  • item no.:

    SMT-020-0900CT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
inquiry now
product details

3 years warranty constant voltage dimming led driver 18watt 900ma LED transformer



  Product parameters


Model

Input voltage(vAC)

Working Frequency (Hz)

Output voltage

(vDC)

Output Current (A)

Output power (W)

Working Temp.

Protection grade

SMT-060-0320CT

90-135V/

170-265V

47~63Hz

45-60vDC

320mA

19W

-25~50°C

IP20

SMT-030-0500CT

90-135V/

170-265V

47~63Hz

15-30vDC

500mA

15W

-25~50°C

IP20

SMT-050-0350CT

90-135V/

170-265V

47~63Hz

30-50vDC

350mA

17.5W

-25~50°C

IP20

SMT-040-0500CT

90-135V/

170-265V

47~63Hz

20-40vDC

500mA

20W

-25~50°C

IP20

SMT-025-0700CT

90-135V/

170-265V

47~63Hz

10-25vDC

700mA

17.5W

-25~50°C

IP20

 SMT-020-0900CT

90-135V/

170-265V

47~63Hz

10-20vDC

900mA

 18W

-25~50°C

IP20

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

  Specifications

  1. RippleI & Noise (max.) : 150mVp-p
  2. Voltage Tolerance : ±5%
  3. Line Regulation : ±1%
  4. Load Regulation : ±2%
  5. Case material:  Plastic housing
  6. Produt cord:connecting terminal(IP20) / 18AWG*20CM
  7. 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

  Features

  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant current
  5. Protections:Short circuit/Overload/Over temperature
  6. Cooling by free air convection
  7. 100% full load burn-in test.
  8. Suitable for LED lighting
  9. Brand electrotronic components.
  10. ROHS material.

  Environment

  1. Working temp: -30~+50℃ (Refer to output load derating curve)
  2. Working humidity: 20~99% RH non-condensing(Waterproof)
  3. Storage temp. humidity:  -40~+80℃,10~99%RH

  Safety

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  Application
  1. Indoor LED illuminating lights
  2. LED Neon, LED urban Decoration
  3. LED Lighting Advertising,LED Display
  4. Safety Protection Apparatus,
  5. Telecommunications, Networks
  6. Vehicle Lights, Controller Panels

900ma 18w triac dimmable led puck /panel light/strips driver
