Non-dimmable LED Driver

500mA 50W 0-10V/PWM dimmable Constant Current LED driver

50w 0-10v dimmable driver 500ma;500ma constant current dimming led driver
  • item no.:

    SMT-100-0500CD
  • brand:

    SMARTS
inquiry now
product details

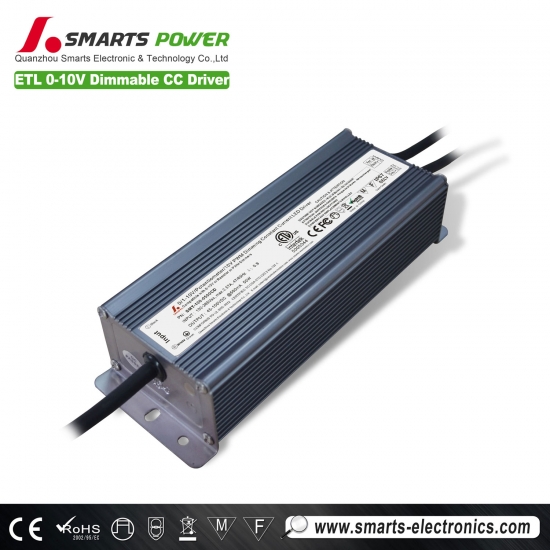

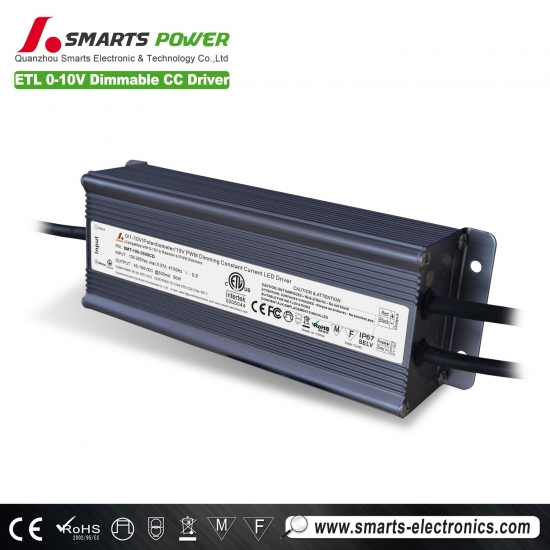

500mA 50W 0-10V/PWM dimmable Constant Current LED driver

  Product Description

 ul ip67 dimming 50w power led and driver

  Product parameters


               Model

No.

Input

voltage(vAC)

Working

Frequency

(Hz)

Output

voltage

(vDC)

Output

Current

(mA)

Output

power
(Watt)

Working

Temp.

IP rate
SMT-036-0900CD 100-265vAC 47~63Hz 20-36V 0-900mA 32.4W -40~50°C IP67
SMT-120-0350CD 100-265vAC 47~63Hz 60-120V 0-350mA 42W -40~50°C IP67
SMT-100-0500CD 100-265vAC 47~63Hz 45-100V 0-500mA 50W -40~50°C IP67
SMT-065-0700CD 100-265vAC 47~63Hz 30-65V 0-700mA 45W -40~50°C IP67
SMT-050-0900CD 100-265vAC 47~63Hz 20-50V 0-900mA 45W -40~50°C IP67
SMT-040-1050CD 100-265vAC 47~63Hz 15-40V 0-1050mA 42W -40~50°C IP67
SMT-040-1200CD 100-265vAC 47~63Hz 20-40V 0-1200mA 48W -40~50°C IP67

  • 3 years warranty
  • (We promise to replace new ones to you if there is any defective happen during the warranty period)

  Features


  • Constant current design with high accuracy.
  • International wide input voltage.
  • Wattage: 15w-200w
  • 8Hrs and 100% full load burn-in test.
  • High reliability designing solution
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency and decrease light attenuation
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Passed high ,low temperature testing.
  • Integrity protection,over loading, over voltage over current

If you want to buy Cheap 50 watt Led Driver, choose 50 watt led driver from smarts-electronics.com. We endeavors to provide the products that you want.


  Environment


  • Working Temperature : -40 ~ +50°C
  • Working Humidity : 20 ~ 95% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes

  Safety


  • Safety Standards :   EN61347-1 EN61347-2-13. IP40
  • Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
  • EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
  • EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

  Application


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

We offer a wide of 500mA Led Drivers. Buy here for best prices.

ul ip67 dimming 50w power led and driver

  Packaging & Shipping


Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
500mA 50W 0-10V/PWM dimmable Constant Current LED driver
900g/pcs 11kg/ctn 10pcs 324*298*188mm
