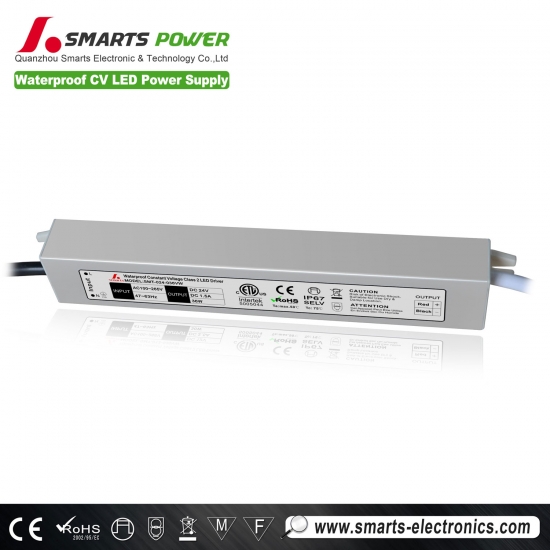

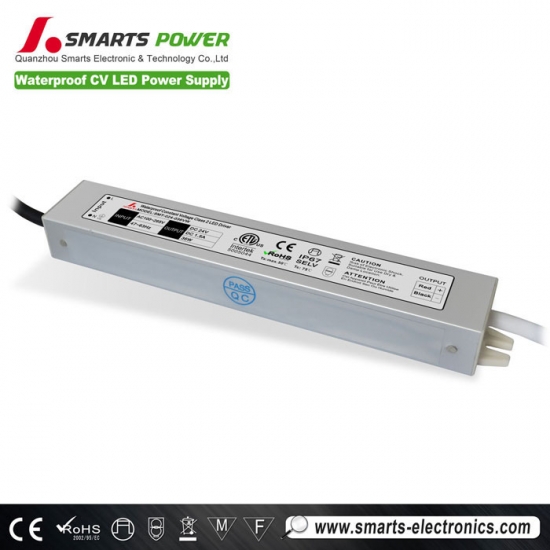

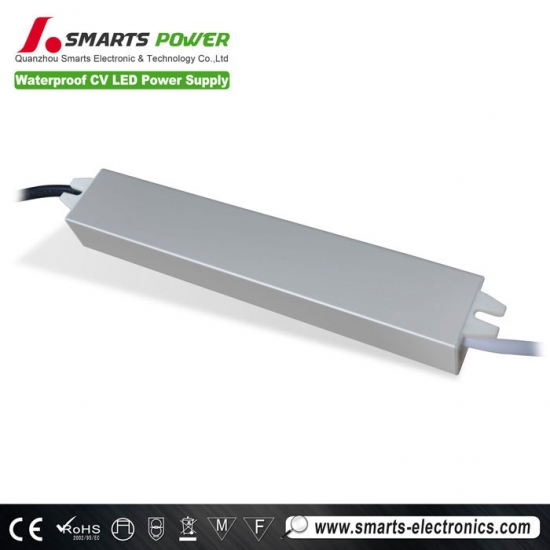

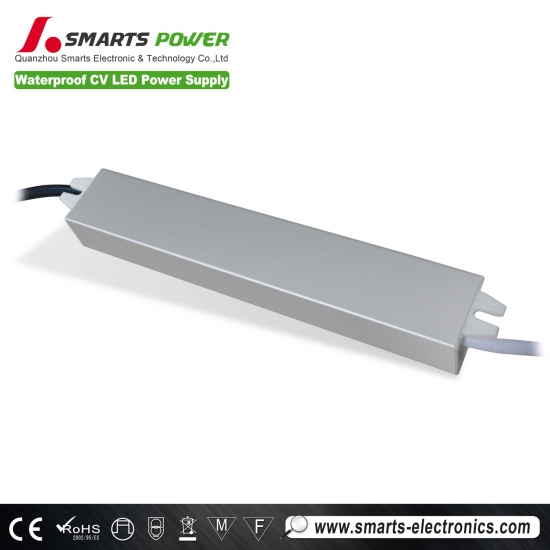

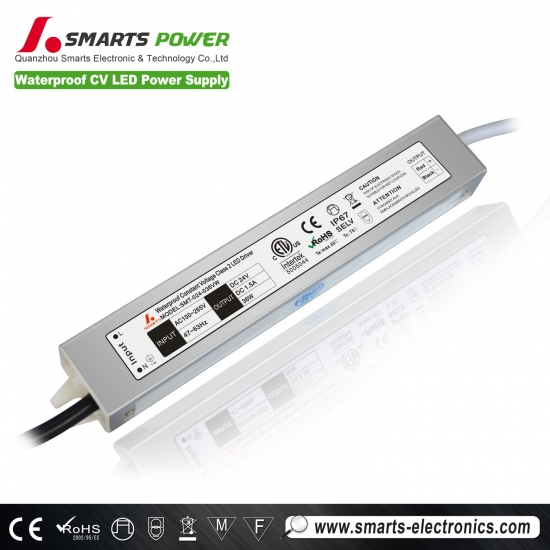

ac to dc 24v 36w ce Constant Voltage LED electronic Transformer for halogen
| SPECIFICAION | |||||
| MODEL | SMT-012-036WW | SMT-024-036VW | SMT-036-036VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 3.0Amp | 1.5Amp | 1.0Amp | ||
| CURRENT RANGE | 0~3.0A | 0~1.5A | 0~1.0A | ||
| RATED POWER | 36W | 36W | 36W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110-220VAC | 60ms/110-220VAC | 60ms/110-220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >84% | >84% | >83% | ||
| AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | ETL/ROHS/CE Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

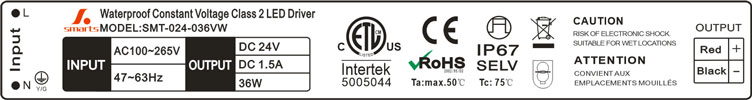

| Label |
 |
||||
 |
 |
 |
 |
Features
High efficiency,save energy ,protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC
Assure LED stability long lift and light efficiency by constant voltage.
Integrity protection,over loading, over voltage ,over current.
8Hrs and 100% full load burn-in test.
Our Service
2.Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe
3.Price is negotiable if you have large quantity demand100% QC inspection Before Shipping
4.Best Quality & Best Service with Competitive price
5.Shipping will be the most economical for you and freight cost is informed in advance
6.consideration.decision for the shipping terms will be made according to your requirements
7.We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution
8.Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
9.OEM design & OEM packing welcome
10.Samples will be ready within 7 working days
