Non-dimmable LED Driver

CE ETL approved 12v 60 watt led driver strip light adapter

Smarts' 60w led adapter 12v is a class 2, constant voltage, LED plug-in driver (power supply) for use with 12V LED fixtures. Driver is suitable for dry location use only.
  • item no.:

    SMT-012-060VP
  • lead time:

    about 7 working days for sample order
  • product orgin:

    china
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $7.3
  • Input Voltage:

    100-240vac
  • Output Voltage:

    12vdc
  • Output Current:

    5a
  • Working Mode:

    constant voltage
  • Certification:

    ETL,CE,ROHS
  • Warranty:

    2 years
inquiry now
product details

CE ETL approved 12v 60 watt led driver strip light adapter

Smarts’ plug-in 12 volt 60 watt led driver convert line voltage to 12 volts, allowing 12 volt electronic products to be powered, and have a plug for connecting into an outlet. They are cETL, CE, and ROHS certified, have an efficiency rate of 85%. This plug-in led light adapter is suitable for use with our LED Modules, LED Strips , LED under cabinet lights, and other 12 volt LED lighting products.


Features of led strip light adapter 12v 60w

1) Electrical Performance
• Max load 60W (output)
• Open and Short circut protection
• Over voltage protection
• 12V DC output


2) AC Input Details
• AC input voltage range: 100-240V
• AC input current: 1.5A
• Input frequency range: 50/60Hz
• Power factor: ≥0.5
• No load power consumption: 0.5W
• Leakage current: <0.25mA
• Effi ciency: 84%
• Input cable: 1.2m



3) DC Output Details

• DC current: 5A
• Working effi ciency:
* 80% @ 115V AC
* 80% @ 230V AC
• Output cable: 1.2m



4) Environmental Requirements
• Working temperature: 0-40°C
• Storage humidity: 5-90% RH


5) Linkage
• The LED driver is equipped with a DC 2.1 jack and 24 AWG SPT cord on the output side for linking 24V LED products.
• When used with outdoor LED fixtures, the driver must be installed indoors or enclosed in a watertight box.



6) Compatibility

The overall wattage load of the product should not exceed 80% of 60W (48W) , Overloading the LED power
supply may affect the longevity, overall performance and void the warranty.


Specification of 12v 60 watt led driver adapter :

 Amperage  5a
 Application

 LED Undercabinet , cove, strip, puck light

,display,module etc

 Certification  CETL/ETL ,CE, ROHS
 Classification  Class II
 Colour  Black
 Dimming  No
 Link Connector  DC 2.1
 Max. Op. Temp.  40°C (104°F)
 Min. Start Temp.  0°C (32°F)
 Power Factor   ≥0.5
 Power Supply Type  Constant Voltage
 Plug-in Voltage  100-240V AC
 Primary Voltage  24V DC
 Warranty  3 Years
 Wattage  60w

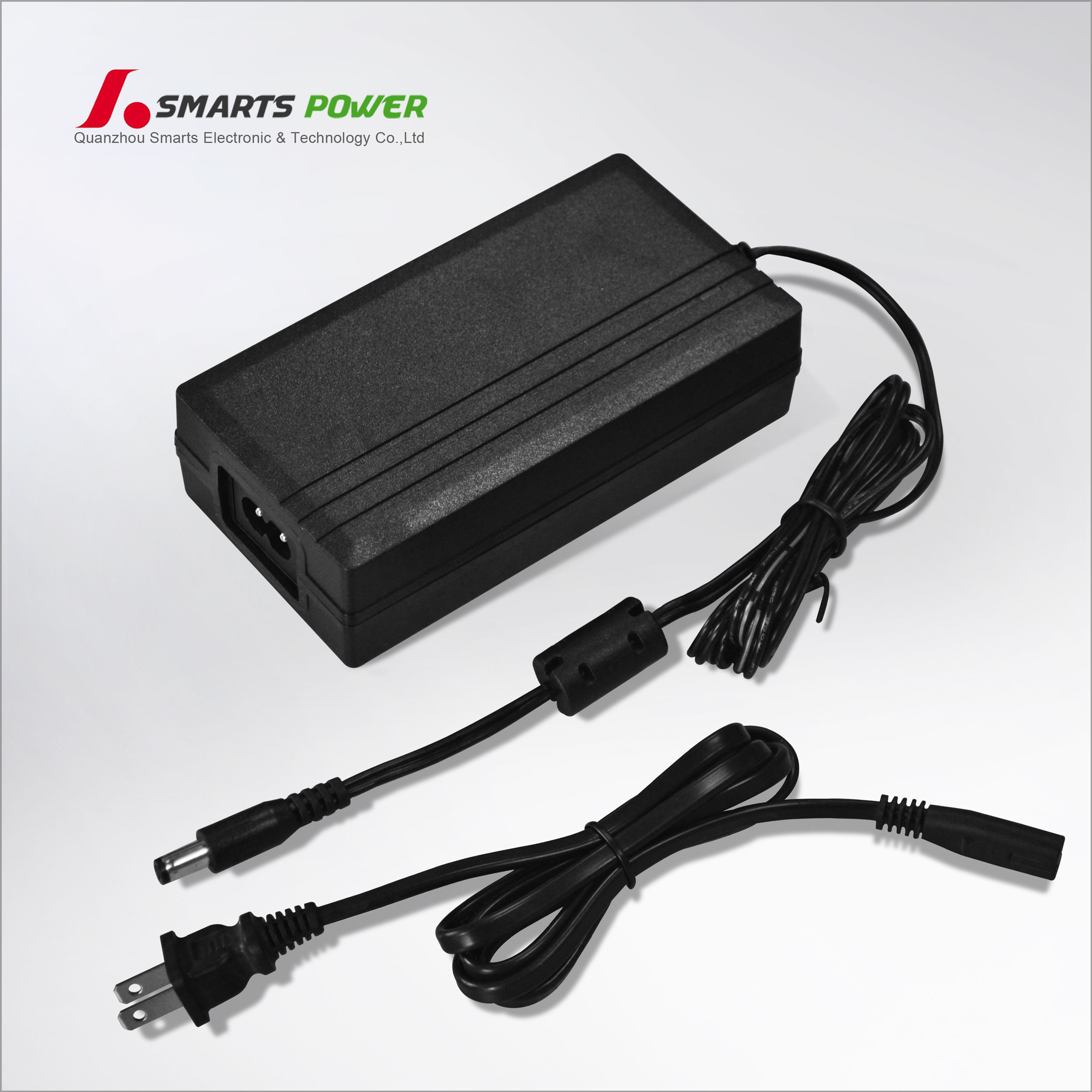

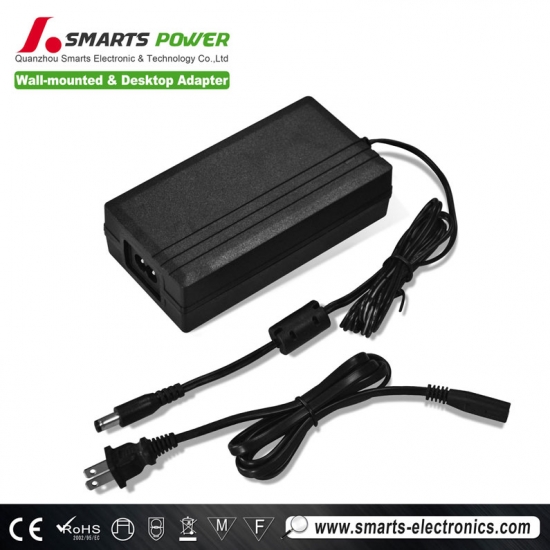

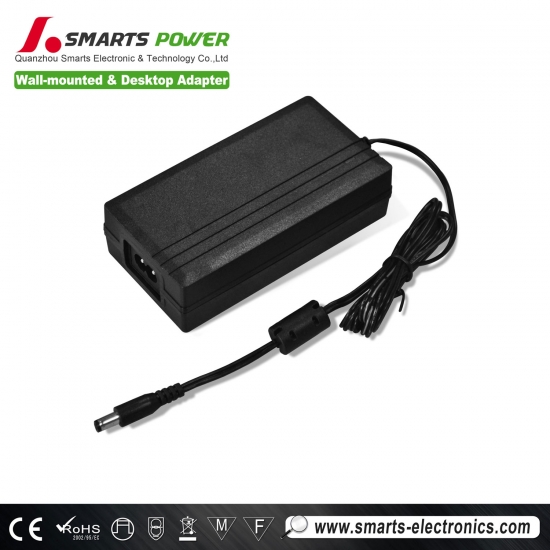

Image of led adapter 12v 60w :

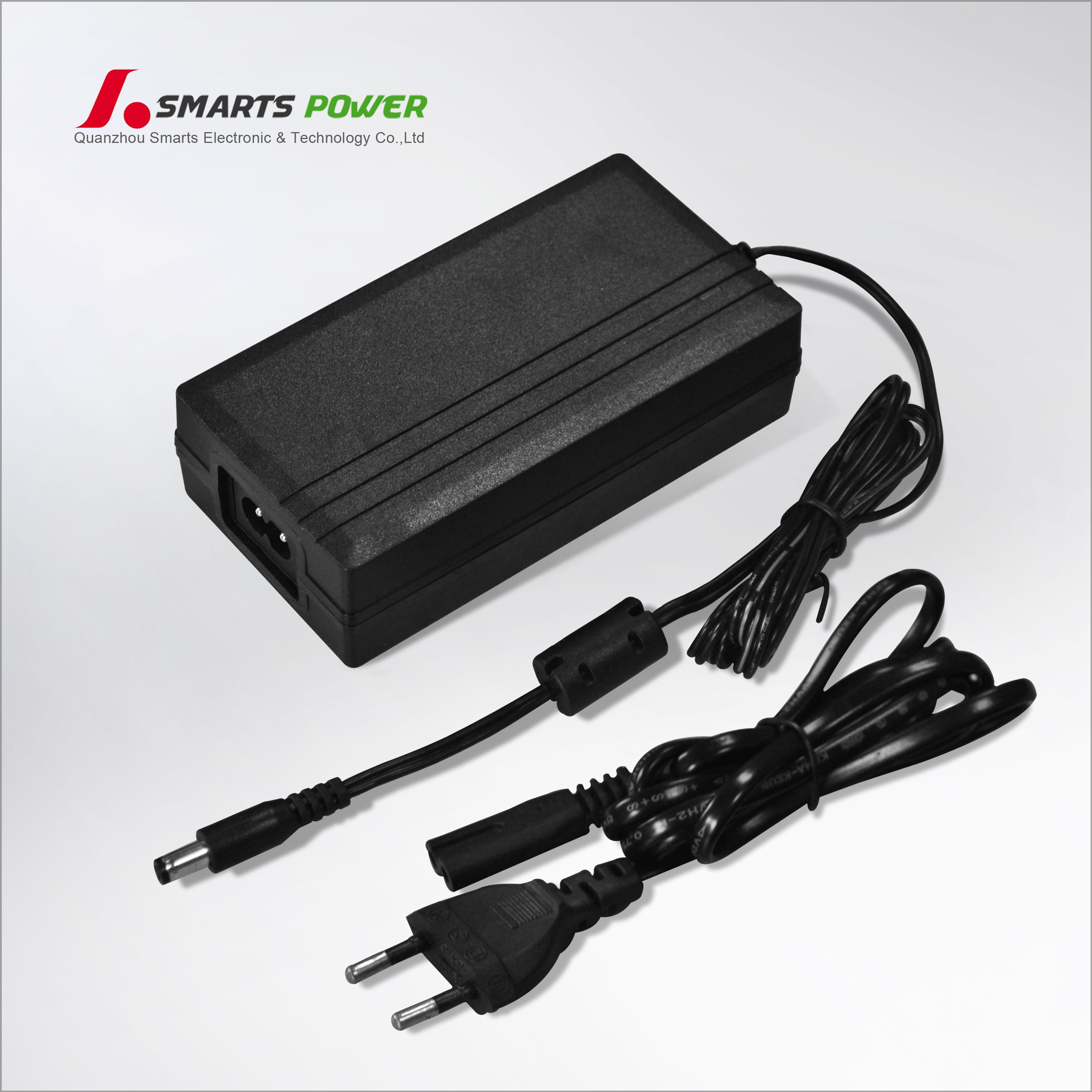

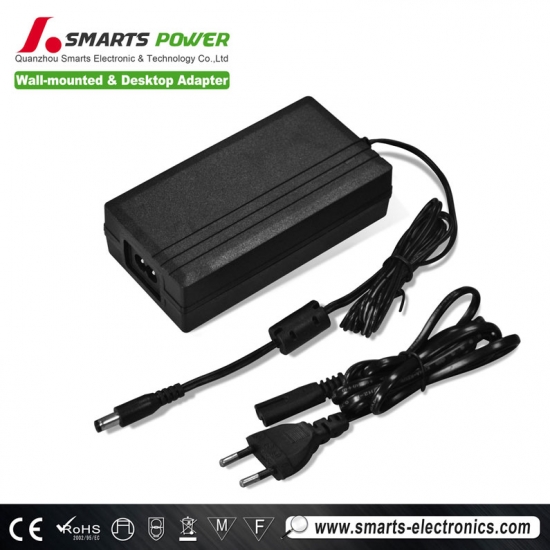

( EU plug )

led adapter 12v


(US plug)

60 watt led driver


Payment and shipping method :

MOQ: 1 PCS
Payment : T/T Western union Paypal Credit Card
Delivery : 7 working days for sample order , 13 working days for 500pcs
Shipping term : FedEx DHL UPS TNT, Air / Sea transportat
