Non-dimmable LED Driver

Class 2 single output IP20 aluminum case 12v 5a cctv power supply

Class 2 single output IP20 aluminum case 12v 5a cctv power supply is a reliable cctv power supply with high quality material, safety in use. Universal AC input/full range, Full load burn-in test.
  • item no.:

    SMT-012-060SA
  • lead time:

    7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T. western union, paypal, credit card
  • market price:

    $7.5
inquiry now
product details

Class 2 single output IP20 aluminum case 12v 5a cctv power supply

Class 2 single output IP20 aluminum case 12v 5a cctv power supply is a reliable switching power supply with high quality material, durable and safety in use. A new style CCTV Power Supply which can keep the voltage stability. Great Class 2 power supply for home appliances. Universal AC input/full range,Full load burn-in test.


Specification :

class 2 cctv 12v 60w power supply
Size : 111*78*36mm

AC 100-240V to DC 12V

Case Material : Aluminum

Main Color : Silver Tone

IP rate : IP20

Protections: overload/ over voltage/ short circuit /Cooling by free air convection(Not suggest for use in bathroom) 5A is rated current. The unit can work long hours at this current and good cooling environment , The actual output current depends on circuit loads.

Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 90% of rated current.



Wiring connection :

L, N, GND: AC power input

+V: DC power output "+"

-V: DC power output "-"
+V / ADJ: fine adjustment of output voltage

Working Temperature: -25~55℃

Store Temperature: -40~80℃

Humidity: 5~95% Non-Condensation
Note: IN-DOOR USE ONLY!
No installation instruction, wiring cable, on/off switch, or screws come with.

Professional installation of qualified electrician is highly recommended.


Function :

overcurrent,overvoltage,overheat,short curcuit protection:Auto-recovery

Start,raise,stable time:  500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC

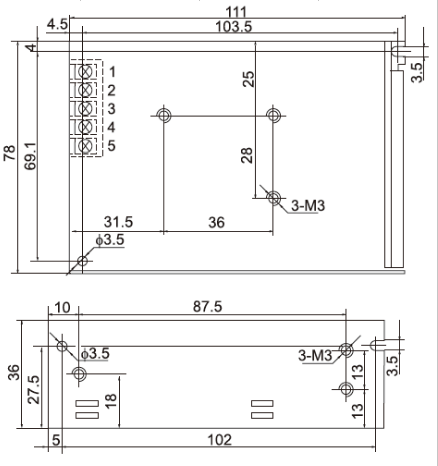

Figure:

cctv power supply

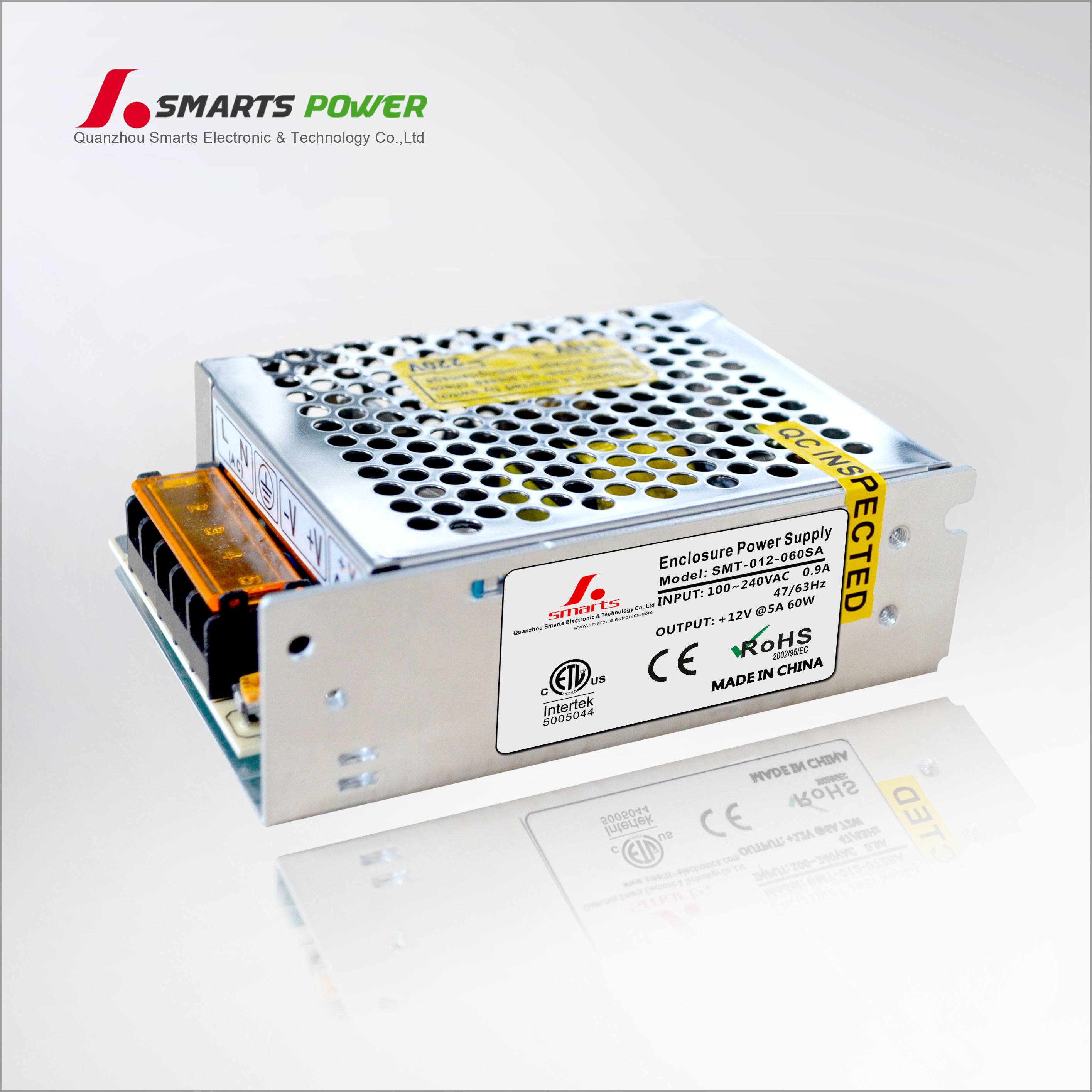

Image :

class 2 power supply


Shipping :
• Samples checking: sending by Express (DHL / UPS / FEDEX / TNT/EMS)

• Bulk production: sending out by cargo shipping / air freight / Express

12v 60w power supply

Payment Terms :
T /T ( Bank Transfer)
Credit Card ( Visa , Master Card )

Paypal , western union


Send Us An Inquiry

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
