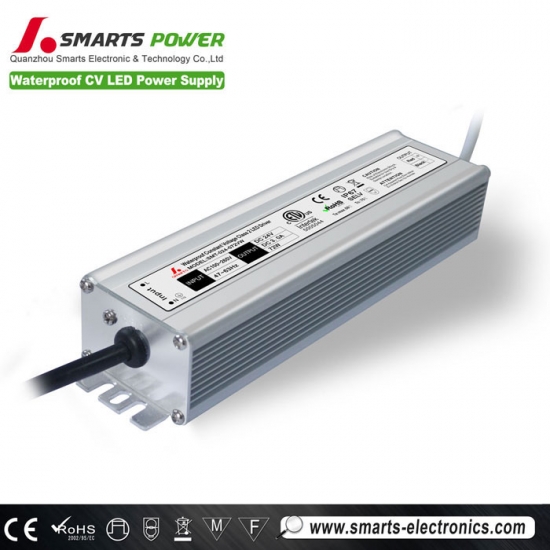

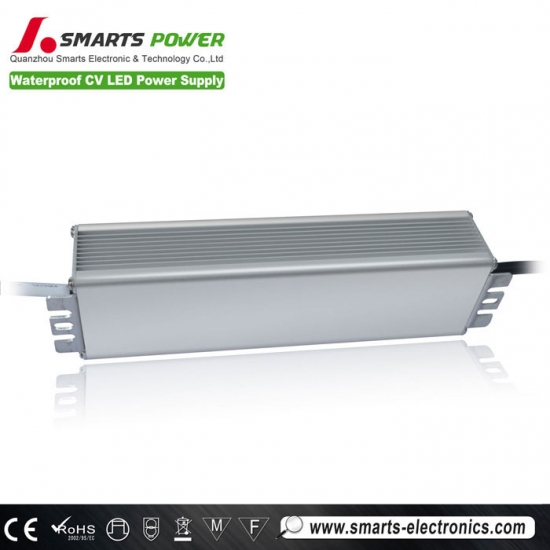

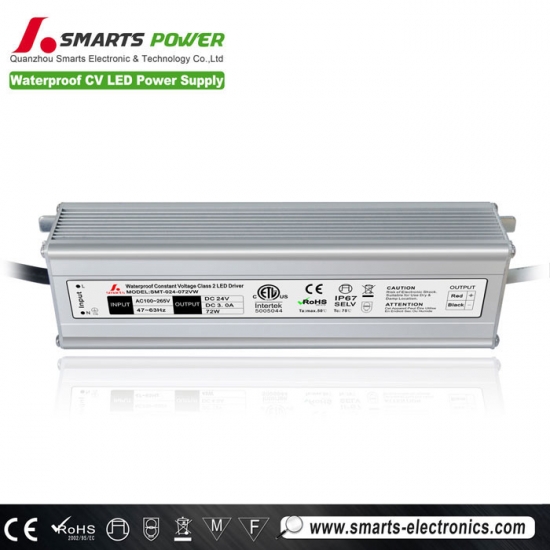

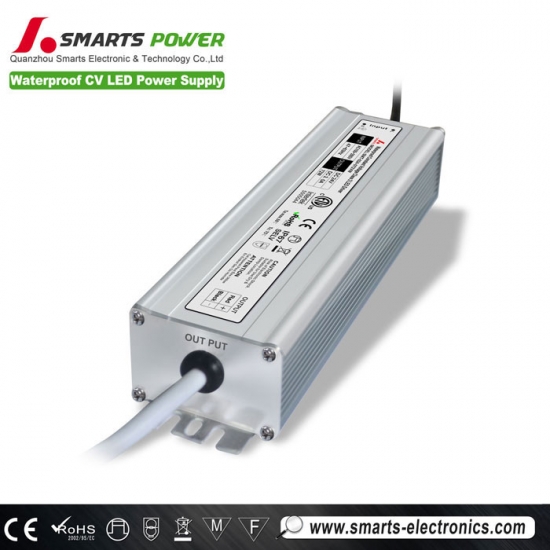

constant voltage led waterproof power supply 220v to 24v 3a is High efficiency,save energy ,protected environment, 8Hrs and 100% full load, burn-in test, Assure LED stability long lift and light efficiency by constant voltage.led driver.
| SPECIFICAION | |||||
| MODEL | SMT-012-072VW | SMT-024-072VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 6.0A | 3.0A | |||
| CURRENT RANGE | 0~6.0A | 0~3.0A | |||
| RATED POWER | 72W | 72W | |||
| RIPPLE&NOISE(max) | 1.2V | 1.2V | |||
| voltage TOLERANCE | 12V±5% | 24V±5% | |||
| SETUP RISE TIME | 80ms/110,220VAC | 80ms/110,220VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110,220VAC | 60ms/110,220VAC | |||
| INPUT | VOLTAGE RANGE | 90~135/170~265Vac | 90~135/170~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | |||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | ﹥84% | ﹥84% | |||
| AC CURRENT(Typ.) | 0.5A/110V,220VAC | 0.5A/110V,220VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 30A/110,220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | UL, CE Mark(LVD, EMC), IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
 |
|
Input volt.:100~265vAC
Efficiency>82%
Warranty: 2 years
CE,ROHS approval
Size: 190*48*34mm
Net weight: 550g/pc
Case material:aluminum housing
Waterproof rate: IP67
Features of led power supply 24v
High efficiency,save energy ,protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC
Assure LED stability long lift and light efficiency by constant voltage.
Integrity protection,over loading, over voltage ,over current.
8Hrs and 100% full load burn-in test.
Safety
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters of 24v 3a power supply
Model
Input voltage(AC V)
Working Frequency
Output voltage
Output Current
Output power(DC W)
Working Temp.
Protection grade
SMT-012-072VW
100-265V
47~63HZ
12
6.0A
-25~50°C
IP67
SMT-024-072VW
100-265V
47~63HZ
24
3.0A
-25~50°C
IP67
100-265V
47~63HZ
12
2.50A
90W
-25~50°C
IP67
SMT-024-090VW
100-265V
47~63HZ
24
1.88A
90W
-25~50°C
IP67
(Hz)
(DC V)
Applications
indoor LED illuminating lights,
LED Neon,
LED urban Decoration
LED Lighting Advertising,
LED Display,
Safety Protection Apparatus,
Telecommunications,
Networks,
Vehicle Lights,
Controller Panels, etc.
