Non-dimmable LED Driver

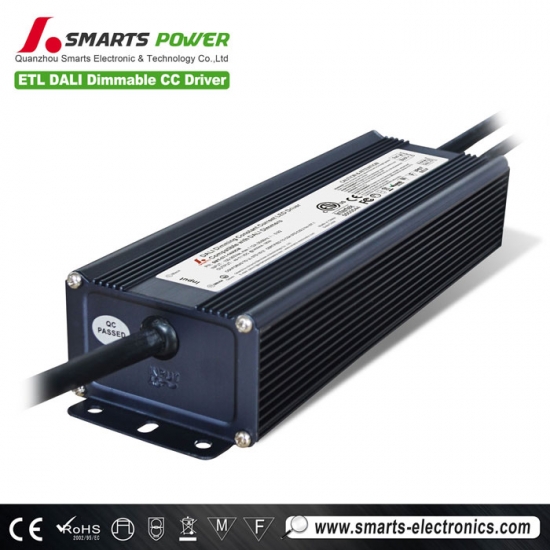

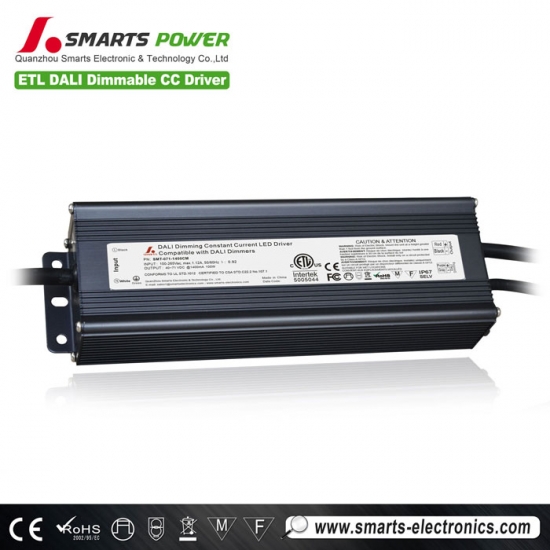

DALI dimmable 1400ma 100w waterproof dimmable electronic led power supply

DALI constant current dimmable led driver
  • item no.:

    SMT-071-1400CM
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $25
inquiry now
product details
DALI dimmable 1400ma 100w waterproof dimmable electronic led power supply



Model

SMT-100-1050CM

SMT-071-1400CM

SMT-060-1750CM

SMT-050-2000CM

Output

DC Voltage

50~100V

40~71V

40~60V

30~50V

Voltage Accuracy

±0.5V

Rated current

0~1050mA

0~1400mA

0~1750mA

0~2100mA

Rated power

105W

98W

105W

100.8W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/100V, 220V

Full Load Efficiency(Typ.)

>89%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC

Current(Typ.)

0.960A(110,220V)

1.042A(110,220V)

1.031A(110,220V)

1.038A(110,220V)

Leakage current

<0.75mA/110, 220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Over Current

<1.4*I out

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

1.3Kg

Size

230*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN    240*70*50 mm for inner box

Not

es

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and  25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .



Features :

  • Voltage Range 100-265VAC
  • Built-in PFC function, PF>0.92
  • Efficiency>88%
  • Protections:short circuit/over current/over temperature
  • Cooling by free air convection
  • IP67 design for indoor or outdoor installation .
  • Dimming function:better compatibility DALI dimming
  • Suitable for LED lighting applications by PWM output
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry/damp/wet locations
  • 3 years warranty

100W dimmable driver Mechanical Specification

DALI dimmable 1400ma 100w waterproof dimmable electronic led power supply

  • Input Rubber cable  H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or White with AC(N)
  • Input with Live Wire(L)  Neutral Wire (N)
  • Output LED SEC (LED+),(LED-)
  • Signal Dimming (DA1), (DA2)

Dimming Operation

  • Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address

Derating Curve

  DALI dimmable 1400ma 100w waterproof dimmable electronic led power supply

  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.


What Service we can supply??

  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applications, let us know freely.

Frequently Asked Questions

Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
