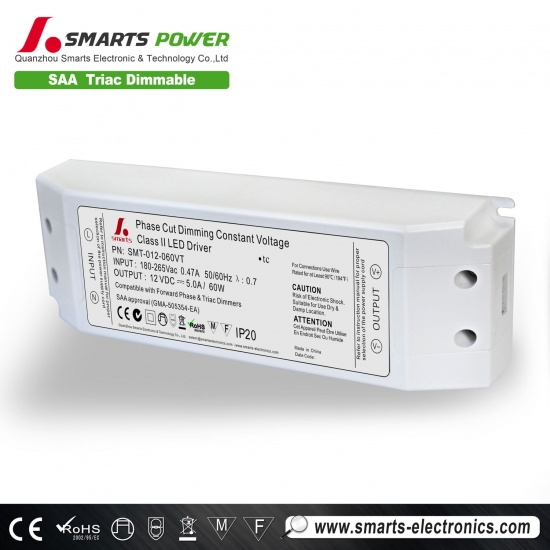

etl 12v 60w constant voltage dimmable led strip light driver
|
model |
SMT-012-060VT |
SMT-024-060VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
5.00A |
2.50A |
|
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
90~135V AC/170~265V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.95/110V,PF>0.96/170V,PF>0.95/220V,PF>0.93/265V |
||
|
Full Load Efficiency(Typ.) |
>85% |
>85% |
|
|
AC Current(Typ.) |
0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC |
||
|
Leakage current |
<0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
About 1.0Kg |
|
|
Size |
210*68.5*43mm(L*W*H) |
||
|
packing |
324*298*176mm (L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

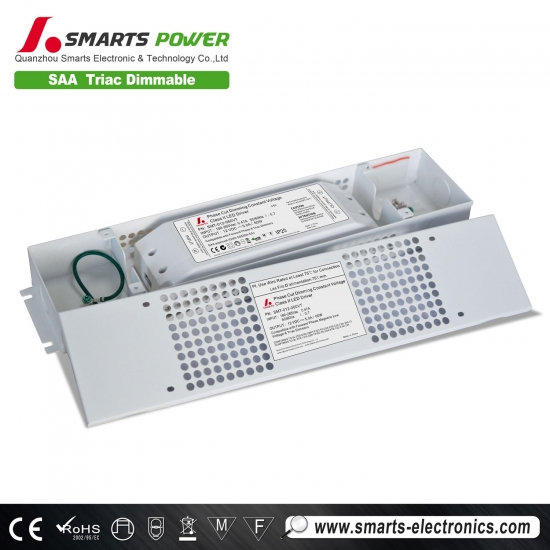

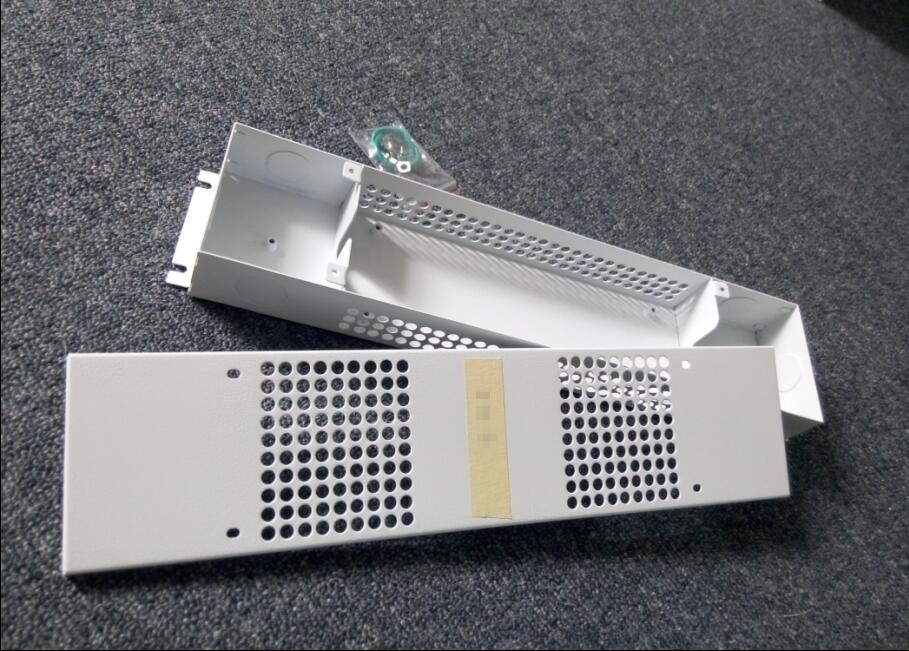

60W triac dimmable driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.
Connecting Diagram
Simple Connection Diagram
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
All of our drivers are got ETL CE ROHS listed .OEM Welcome
