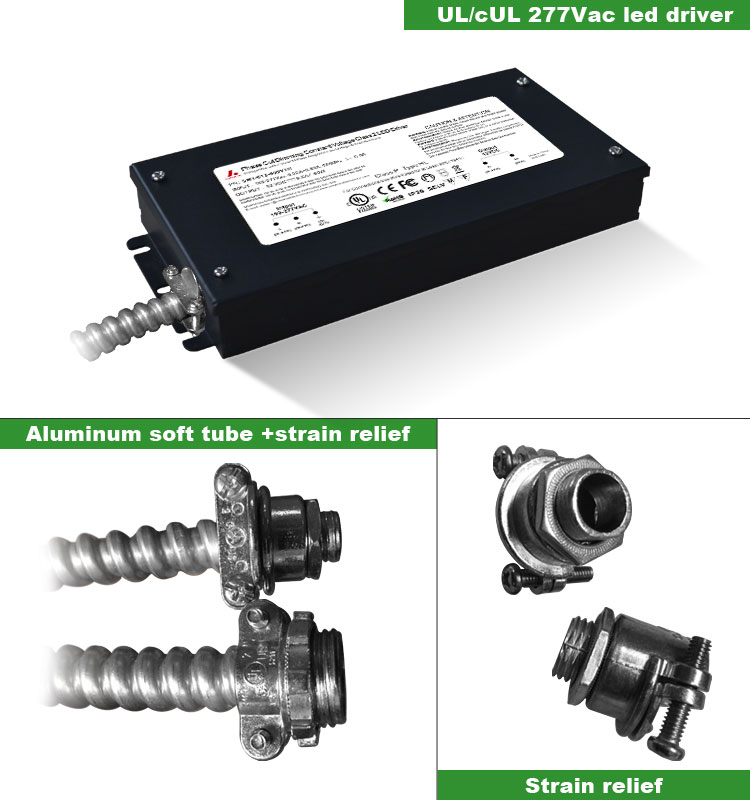

277vac to 12v dc dimmable led strip power supply
Features of dimmable led power supply
SMT-012-2000VTH-(12v 200w 16.66a) / Constant Voltage type / Triac dimmable
Dimmable with any standard 277VAC MLV TRIAC dimmer switch
high PFC> 0.98 , high efficiency> 97%
Size:260*103*44.5mm
UL listedCertified to CSA Standard
Commercial Use
flicker-free
IP67 type for Outdoor & Indoor Use
Model
SMT-012-200VTH
SMT-024-200VTH
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Voltage Tolerance
±0.5V
Load Regulation
±2% ±1%
±1%
Rated current
16.67A
8.33A
Rated power
200W
Input
Voltage Range
100-277VAC
Frequency Range
47～63HZ
Power Factor（Typ.）@ full load
0.96@120VAC 0.97@277VAC
0.97@120VAC 0.95@277VAC
THD（Typ.）@ full load
<20%
Inrush Current （Typ.）
15A, 50%, 1.4ms
Full Load
Efficiency（Typ.）
>88%
>88%
AC Current（Typ.）
2.3A@110VAC 1.76A
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over load
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Current
≤1.4*I out
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥50%load)
EMC IMMUNITY
EN61000-4-2,3,4,5,6,11（Surge 4KV）
Others
Weight
1.8Kg
Size
260*103*46mm (L*W*H)
packaging
10PCS/CTN 385*335*200mm 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.

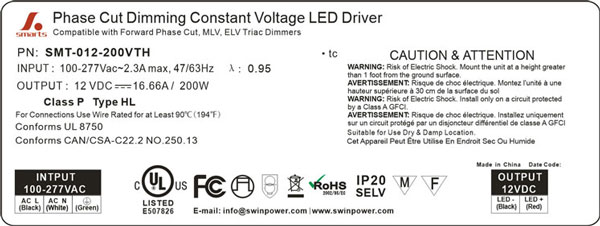

Label
 |
 |
 |
 |
