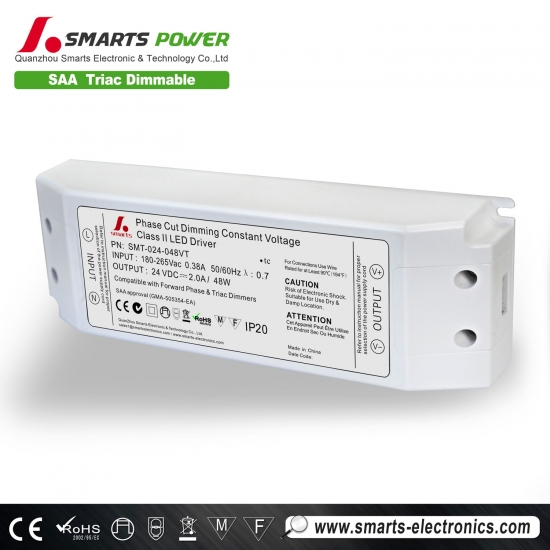

ETL listed class 2 dimmable triac led driver



Smarts Electronics offters 24w 48w 60w 80w 96w CLASS 2 Traic dimmablne electroic driver 12v.

They are all no min load limitation.



  • 48W 24V , class 2 led driver, Dimmable led driver from 120V TRIAC
  • Input range from 100~130V AC, 47-63Hz, PF > 0.70
  • Dimmable DC Output: 24V, 48W, Suitable for dimmer Lutron Lumea LG-600H, Lutron Skylark SLV-603P, Lutron Diva DLVL-600PH
  • Protection: Short-Circuit / Over Current / Over Temperature and Auto-recovery Mode
  • IP20 Indoor operation, Cooling by free air convection -20C to +45C, full load, max case 60C, 20 to 95% RH NC
  • Terminal Screw Connection (Input: N, L. Output: +V, GND)
  • Approvals: ETL, CE, FCC, RoHS
  • 5 year warranty

  Specification:

Model

SMT-012-048VT

SMT-024-048VT

Certificates

ETL,CETL,CE,ROHS

ETL,CETL,CE,ROHS

output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

4.00A

1.25A

2.00A

Rated power

48W

input

Voltage Range

100~130VAC / 170~265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≥0.65

Efficiency(Typ.)

>83%

84%

>84%



AC Current(Typ.)

0.84A @120VAC, 0.4A@220VAC

0.4A

0.83A @120VAC, 0.39A@220VAC



Leakage current

<0.70mA/110VAC , <0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

≤1.4*I out

Over Loading

≤120%

Over temperature

100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic







Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1500KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

others

Net. Weight

0.45Kg

Size

178*61*24mm(L*W*H)

packing

350*195*180mm  30PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC / 220VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3.Loading should be 5-100%.

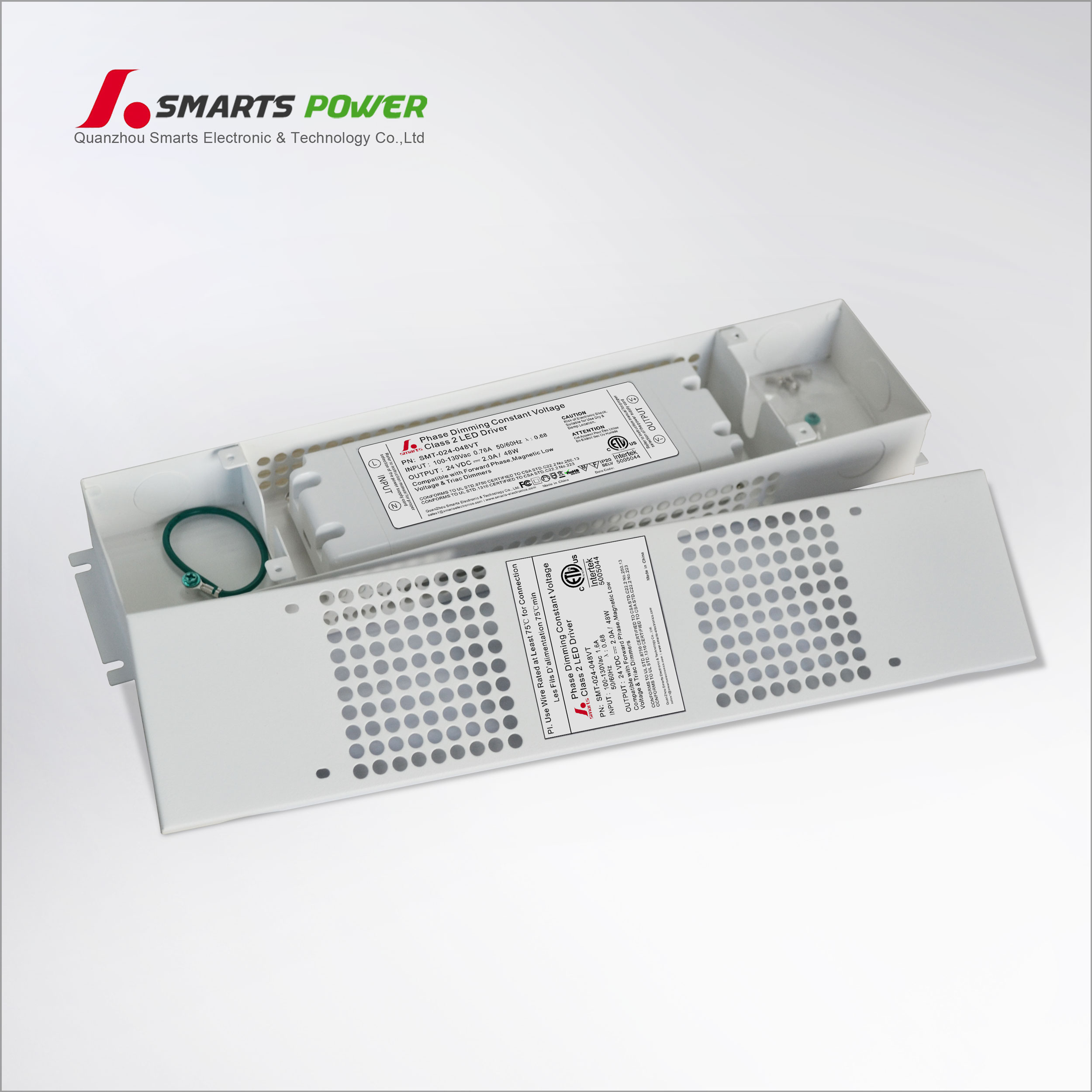

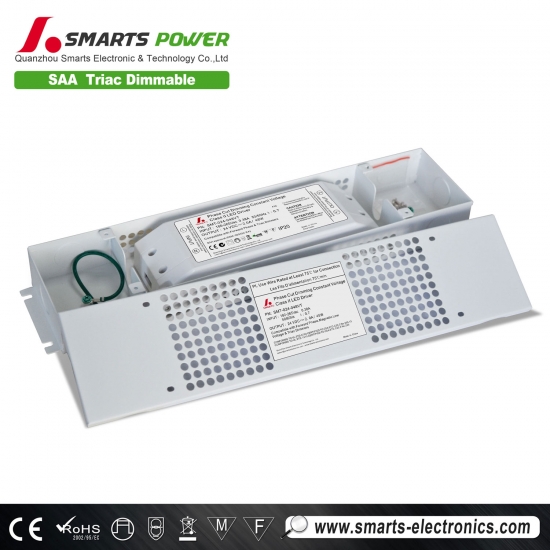

12v 48w class2 triac dimmable led driver with junction box

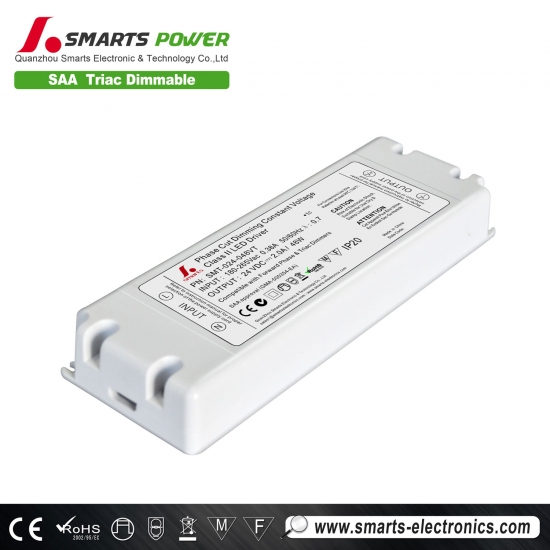

24v 48w class 2 led driver

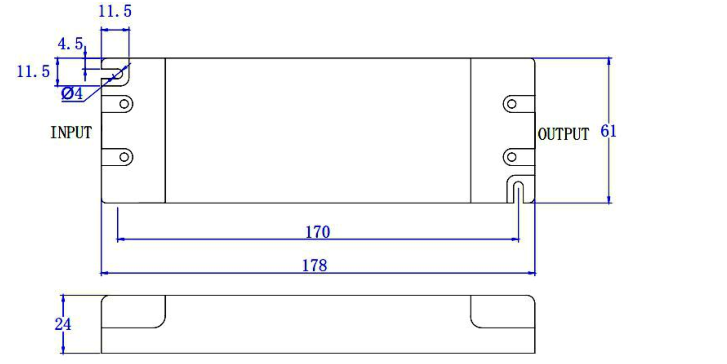

Mechanical Specification for class 2 dimmable led driver:

Mechanical Specification for class 2 dimmable led driver:


Input (L) and (N) with wires to be connected AC.

Output LED SEC :(LED+) (LED-)



Dimming Operation

The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).

Please try to use dimmers with power at least 2.5 times as the output power of the driver.

for Forward phase,Magnetic low voltage and Triac Dimmers
