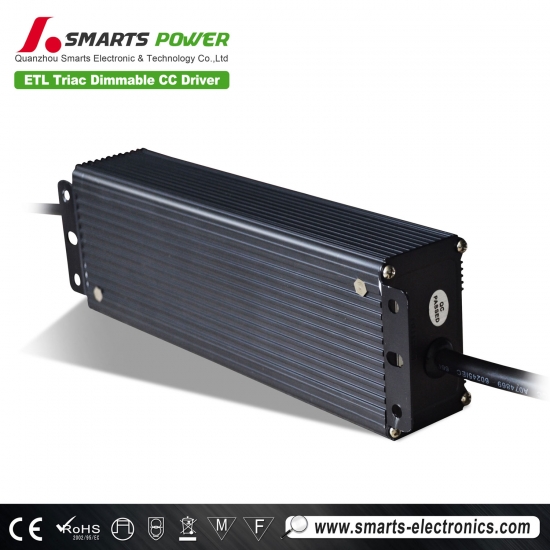

high power 2000mA 80w dimmable led driver
Product parameters
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
|
SMT-115-0700CT |
90-135V/ |
47~63HZ |
80~115V |
0-700mA |
80W |
-25~50°C |
IP67 |
|
SMT-090-0900CT |
90-135V/ |
47~63HZ |
70-90V |
0-900mA | 80W |
-25~50°C |
IP67 |
|
SMT-080-1050CT |
90-135V/ |
47~63HZ |
55-80V |
0-1050mA | 80W |
-25~50°C |
IP67 |
|
SMT-067-1200CT |
90-135V/ |
47~63HZ |
40-67V | 0-1200mA | 80W |
-25~50°C |
IP67 |
|
SMT-058-1400CT |
90-135V/ |
47~63HZ |
40-58V |
0-1400mA | 80W |
-25~50°C |
IP67 |
|
SMT-040-2000CT |
90-135V/ |
47~63HZ |
25-40V |
0-2000mA | 80W |
-25~50°C |
IP67 |
|
SMT-034-2400CT |
90-135V/ |
47~63HZ |
15-34V |
0-2400mA | 80W |
-25~50°C |
IP67 |
 |
 |
 |
 |
Protection & Environment& Safety & EMC
Specifications
- Dimming mode: traic dimmable
- working mode:constant current type
- Full Load Efficiency (Typ.): >85%
- AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
- Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
- Case material:aluminium housing
- Waterproof rate: IP67
- unit weight: 1kg
- product size: 200*68*45 mm
- CE, ETL, ROHS approval
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment
- Output constant current
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function,PF >0.9
- Efficiency > 85%
- Protections:Short circuit/over Voltage
- Fully isolated plastic case
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Meet to safety standard and EMC.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
Environment
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
