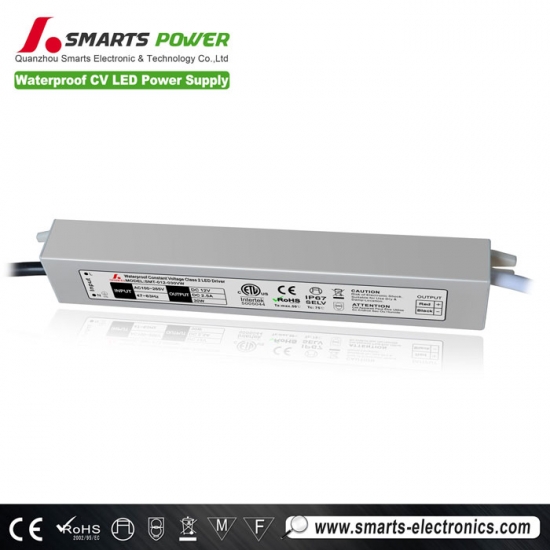

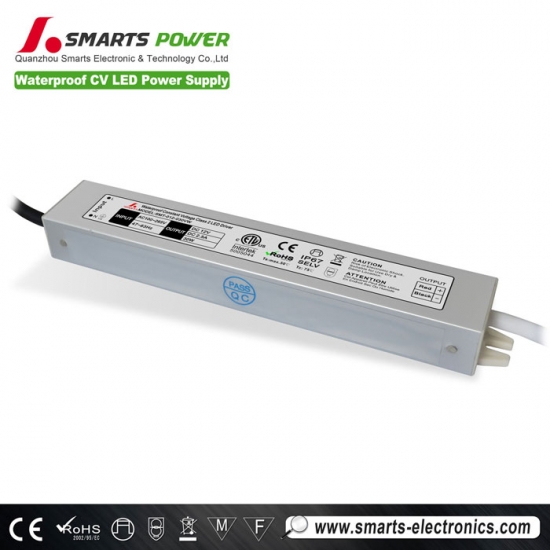

IP67 waterproof super slim 12v 2500ma led driver
IP67 waterproof 12v 30w led driver is compatiable with many indoor and outdoor led application, and pass 100% full load burn in test, it also has Low output ripple and noise, and we provide 2 years warranty , the over load, temp, short circuit protection make this driver more stable in working condition, 12v 2500ma led driver get CE ROHS ETL approved, the slim outer case make it compatiable with many kinds LEDs which has size limitation with LED driver.
| SPECIFICAION | |||||
| MODEL | SMT-012-030WW | SMT-024-030VW | SMT-036-030VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 2.5Amp | 1.25Amp | 0.83Amp | ||
| CURRENT RANGE | 0~2.5A | 0~1.25A | 0~0.83A | ||
| RATED POWER | 30W | 30W | 30W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110-220VAC | 60ms/110-220VAC | 60ms/110-220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >83% | >83% | >83% | ||
| AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | ETL/ROHS/CE Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
Specification of 12v 30w super slim led driver
Input : 100-265vac
Output : 12v 2.5a 30w

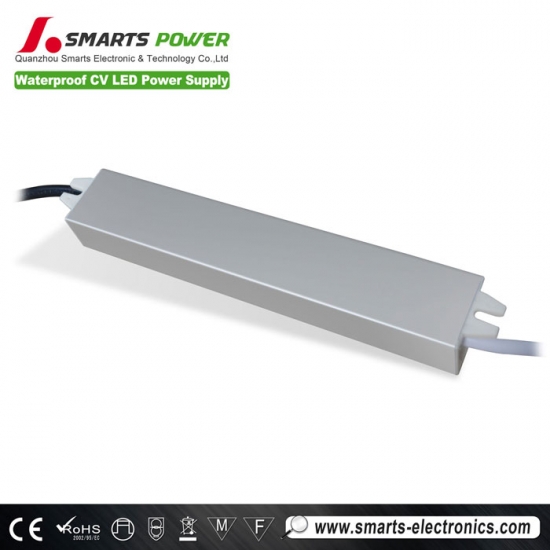

IP67 aluminum case
Single output constant voltage type
Size : 182*29*20mm
CE ETL ROHS approved
2 years warranty
ripple & noise : 150mV
current & tolerance : ±0.5V
setup rise time : 80ms/110,220VAC
hold up time : 60ms/110-220VAC
Efficiency > 0.83
AC current : 3.5A/110,220VAC
INRUSH CURRENT : COLD START 50A/110~220VAC
Protection of 12v 2500ma led driver
Short circuit protection : Protection type:recovers automatically after condition is removed
Overload : overload protected@145-160% above peak rating
Over temperature: Protection type:Shut down o/p voltage,re-power on to removed
