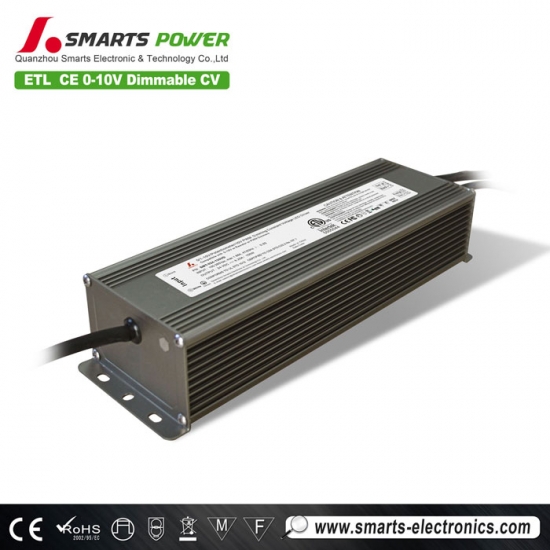

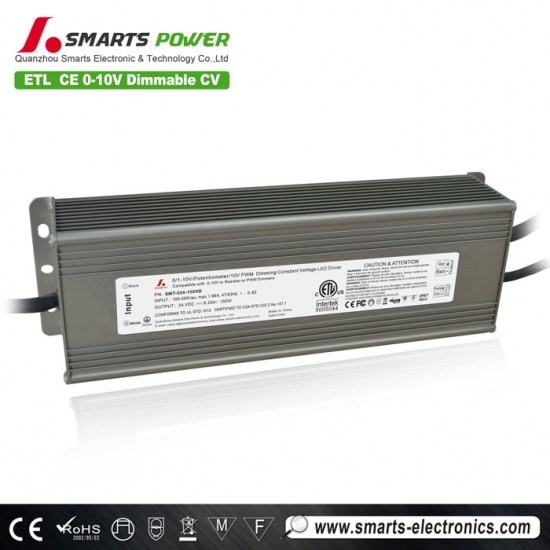

No flicker no noise CE RoHS certificatets 150W 24V pwm dimmable led driver

  • SMT-024-150VD
  • 1
  • Xiamen
  • China
  • about 7 working days for samples
  • CONTACT US NOW
  • Product Detail

Product Item: No flicker no noise CE RoHS certificatets 150W 24V pwm dimmable led driver


Model

SMT-012-150VD

SMT-024-150VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0~12.5A

0~6.25A

Rated power

150W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/110V / PF>0.98/220V

Full Load Efficiency(Typ.)

>87%(110V) / >88%(220V)

>87%(120V) / >88%(220V)

AC Current(Typ.)

1.48A(1200V) / 0.81A(220V)

1.481A(1200V) / 0.801A(220V)

Leakage current

<0.8mA/120VAC / <0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault

condition is removed

Over voltage

<150VAC / <280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z

axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13.IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.8Kg

Size

255*80*53mm(L*W*H)

packing

440*295*145mm/8pcs/CTN    265*98*55 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .


Feature:

Output constant voltage
Range 100-265VAC·
Built-in PFC function, PF>0.9
Efficiency 88%
Protections:short circuit/over current/over voltage/over temperature
Cooling by free air convection
IP67 design for indoor or outdoor installation .
Dimming: 0-10V/ 1-10V/ 10V PWM or resistor dimmable
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry/damp/wet locations

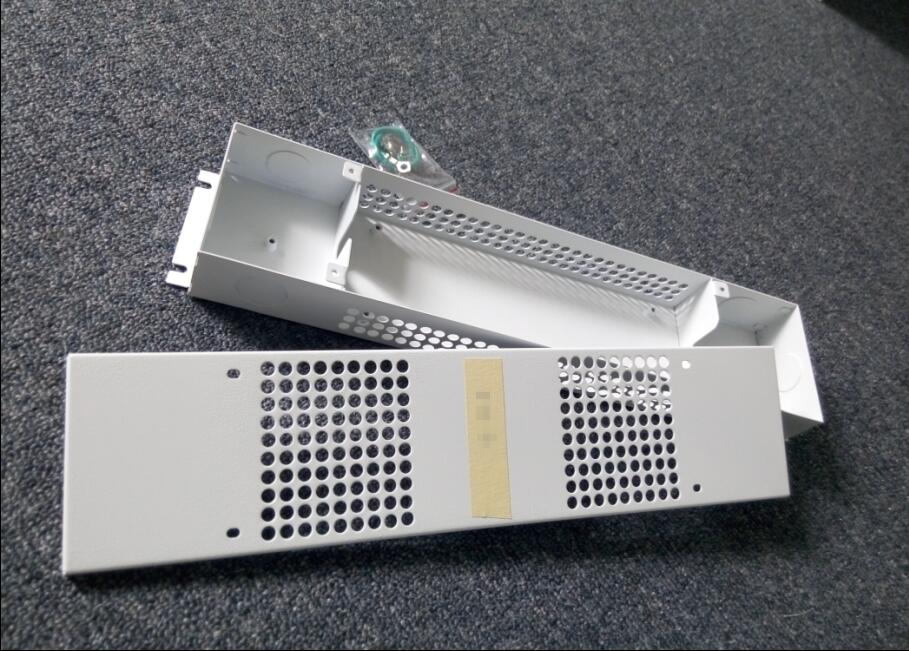

We can supply you Junction Box for all kind of power supply/led driver


What Service we can supply??
All inquiries will be replied within 24 hours

Professional manufacturer,welcom to visit our website

OEM/ODM avaliable:
A.Print logo on our product;

B. Customized specification;


After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;

B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;


High efficiency,long life span,reasonable&competetative price,fast lead time;


We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.

Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
