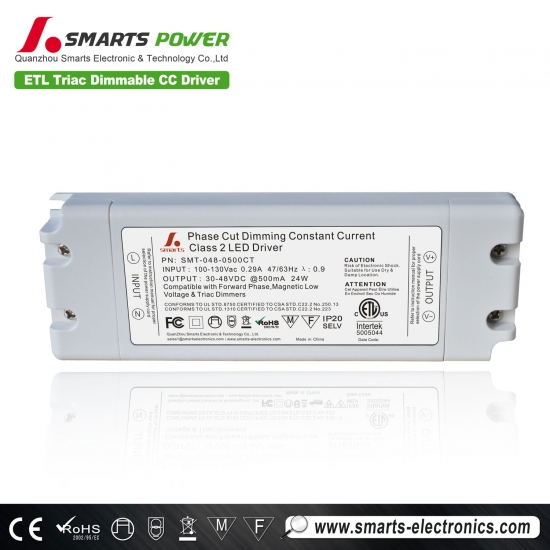

plastic case 48v Triac Dimmable Constant Current LED Driver
Model
SMT-090-0350CT
SMT-048-0500CT
SMT-036-0700CT
SMT-036-0900CT
Output
DC Current
350mA
500mA
700mA
900mA
Current Accuracy
±5%
Voltage Range
50-90V
30-48V
20-40V
20-36V
Rated power
30W
30W
25W
32W
Input
Voltage Range
170～250VAC/(90-130VAC For North America Markets )
Frequency Range
47～63HZ
Power Factor （Typ.）
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
Full Load Efficiency（Typ.）
85%
86%
85%
85%
AC Current（Typ.）
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
Leakage current
<0.27mA/110VAC; ﹤0.25mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over voltage
≦270VAC
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN-61347-1-2
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
Others
Weight
0.34Kg/pcs
Size
180*60*34mm
m
mmm（L*W*H）
packing
324*298*176mm
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
1. 3.Tolerance:includes set us tolerance,line regulation and load regulation .
Features
High efficiency,save energy ,protected environment
Output constant current
Input range :90-135VAC / 170-265VAC
Built-in PFC function,PF >0.9
Efficiency > 85%
Protections:Short circuit/over Voltage
Fully isolated plastic case
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Meet to safety standard and EMC.
100% full load burn-in test.
Brand electrotronic components.
ROHS material.
Applications
Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks
