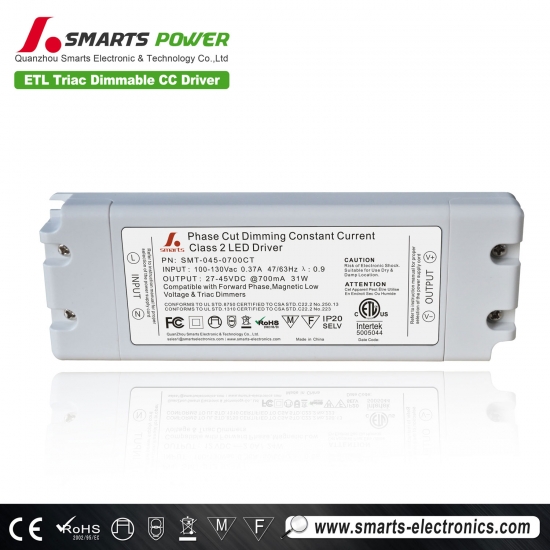

single output 20-45v 700mA led driver
Protection & Environment& Safety & EMC
Specifications
- Dimming mode: traic dimmable
- working mode:constant current type
- PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
- Full Load Efficiency (Typ.): >85%
- AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
- Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment
- Output constant current
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function,PF >0.9
- Efficiency > 85%
- Protections:Short circuit/over Voltage
- Fully isolated plastic case
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Meet to safety standard and EMC.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
