Non-dimmable LED Driver

triac dimmable constant current LED driver

triac dimmable constant current LED driver ; 320mA 10w dimmable led driver ; constant current led power supply

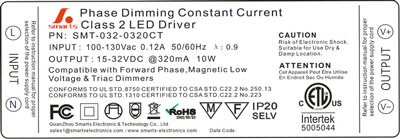

  • item no.:

    SMT-032-320CT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
  • Input Voltage:

    170~265VAC / 90-135VAC
  • Output Voltage:

    15~32V
  • Output Current:

    320ma
  • Working Mode:

    constant current
  • Certification:

    CE ROHS
  • Warranty:

    3 Years
inquiry now
product details

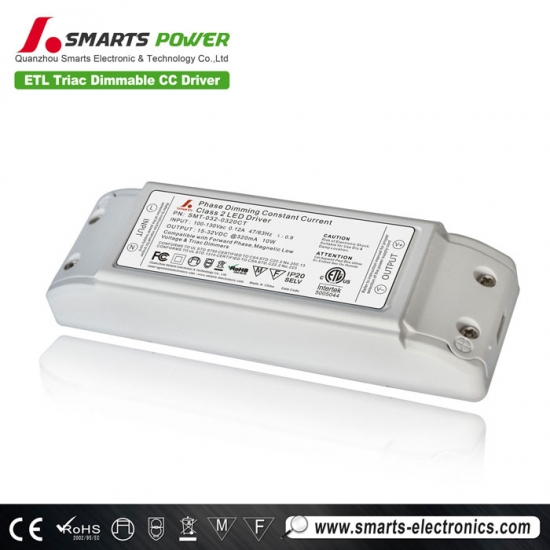

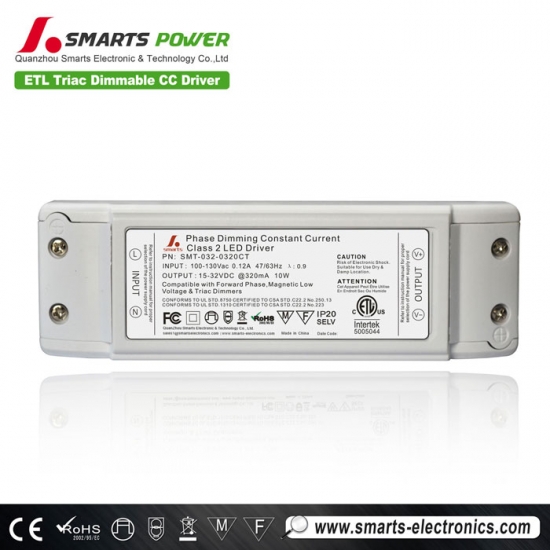

triac dimmable constant current LED driver



 Product parameters


Model

SMT-045-0320CT

SMT-032-0320CT

SMT-040-0500CT

SMT-025-0700CT

Output

DC Current

320mA

320mA

500mA

700mA

Current Accuracy

±5%

Voltage Range

25~45V

15~32V

20~40V

10~25V

Rated power

14W

10W

20W

17.5W

Input

Voltage Range

170265VAC / 90-135VAC

Frequency Range

4763HZ

Power Factor Typ.

PF≧0.92/110V ; PF≧0.95/220V ; PF≧0.93/250V

Full Load EfficiencyTyp.

85%

86%

85%

85%

AC CurrentTyp.

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC

Leakage current

<0.27mA/110VAC; 0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

≦270VAC

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN-61347-1-2

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry

level surge4KV

Others

Weight

0.16Kg/pcs

Size

140*45*28mm

mmmL*W*H

packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

    0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Label   triac dimmable constant current LED driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Specifications



  • Energy transfer: AC-DC
  • Dimming mode: Triac dimmable
  • PF:>0.90
  • Efficiency: 88%
  • RippleI & Noise (max.) : 150mVp-p
  • Voltage Tolerance : ±5%
  • Line Regulation : ±1%
  • Load Regulation : ±2%
  • Case material:  Plastic  housing
  • Waterproof rate:  IP40
  • Produt cord:connecting terminal(IP20) / 18AWG*20CM
  • 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting
  • Brand electrotronic components.
  • ROHS material.


 Environment


  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Application


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
