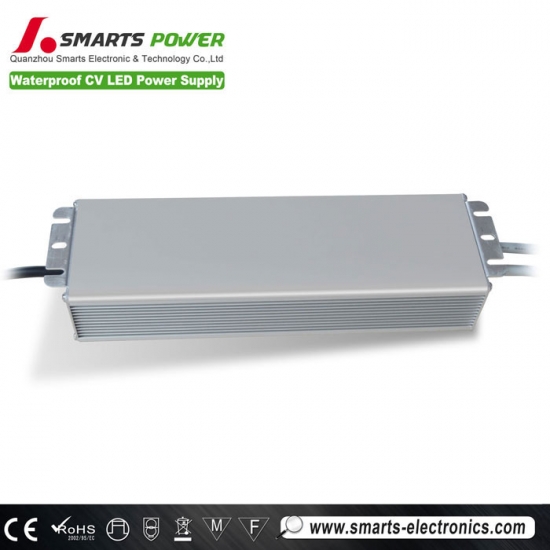

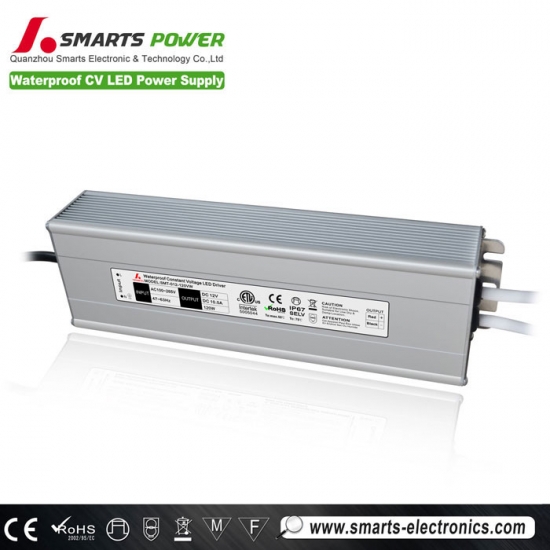

Waterproof IP67 120w 12v power supplies
|
Features
|
SPECIFICAION
MODEL
SMT-012-120VW
SMT-024-120VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
10.0A
5.0A
CURRENT RANGE
0~10.0A
0~5.0A
RATED POWER
120W
120W
RIPPLE&NOISE(max)
150mV
150mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110V,220VAC
HOLD UP TIME(Typ.)
60ms/110V,220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
AC CURRENT(Typ.)
0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
CE ETL. Mark(LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
 |
 |
 |
 |
Our led drivers are widely used for
Vehicle Lights, Controller Panels
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
-
OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; -
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
