Quanzhou Smarts Electronic & Technology Co.,Ltd

Products Home > Enclosure power supply > 110VAC to DC 24V 12V 24V 36V 150W led transformer

110VAC to DC 24V 12V 24V 36V 150W led transformer

  • 1
  • Xiamen port
  • China
  • about 7 working days for samples
  • 100-240AC
  • 12v
  • 12.5a
  • 150w
  • CE ROHS ETL
  • 2 years
  • CONTACT US NOW
  • Product Detail

120VAC to DC 24V 12V 24V 36V 150W led transformer


110VAC to DC 24V 12V 24V 36V 150W led transformer is ideal for making connections that require a high energy consumption.It is particularly recommended for the use of leds that ensures that the leds will not receive voltage and / or peak current.


Specification of 12v 150w Transformer:

entry:
- voltage: ac100-240v (can be selected by switch)

- frequency: 50 / 60hz


departure:
- working voltage: 12VDC

- working current: 12.5A

- working power: 150w


voltage protection: integral short circuit and overload protection - shuts off the unit in case of breakdowns and overloads to protect the unit and connected equipment from damage.
shell material: aluminum
cooling method: convection of natural cooling air
requires power cord (not included)
for indoor use only (dry) /IP20 non-waterproof

security standards: ETL, CE (EMC + LVD) recognized component, gb195110.1-2004 / IEC61347-1: 2003


wiring - connections:
l, n: AC power input

com: DC power output "-"

+ v: salida de potencia cc "+"

+ v / adj: ajustar la tensión de salida


Special Notes of DC 12v Transformer:
for optimum performance, do not exceed the maximum load.

for best use, the transformer must be 10% higher (watt) than the total required to run your system.



part number SMT-012-150SA
Product Dimensions 6,26 x 3,86 x 1,49 inches
material aluminum
style unclosed
terminar unclosed
shape rectangular
power supply C.A
voltage 12 volts
power 150 volts
amperage 12,5 a
item package quantity 1
certification etl ce recognized
special features electric brake, easy to install
use commercial residential

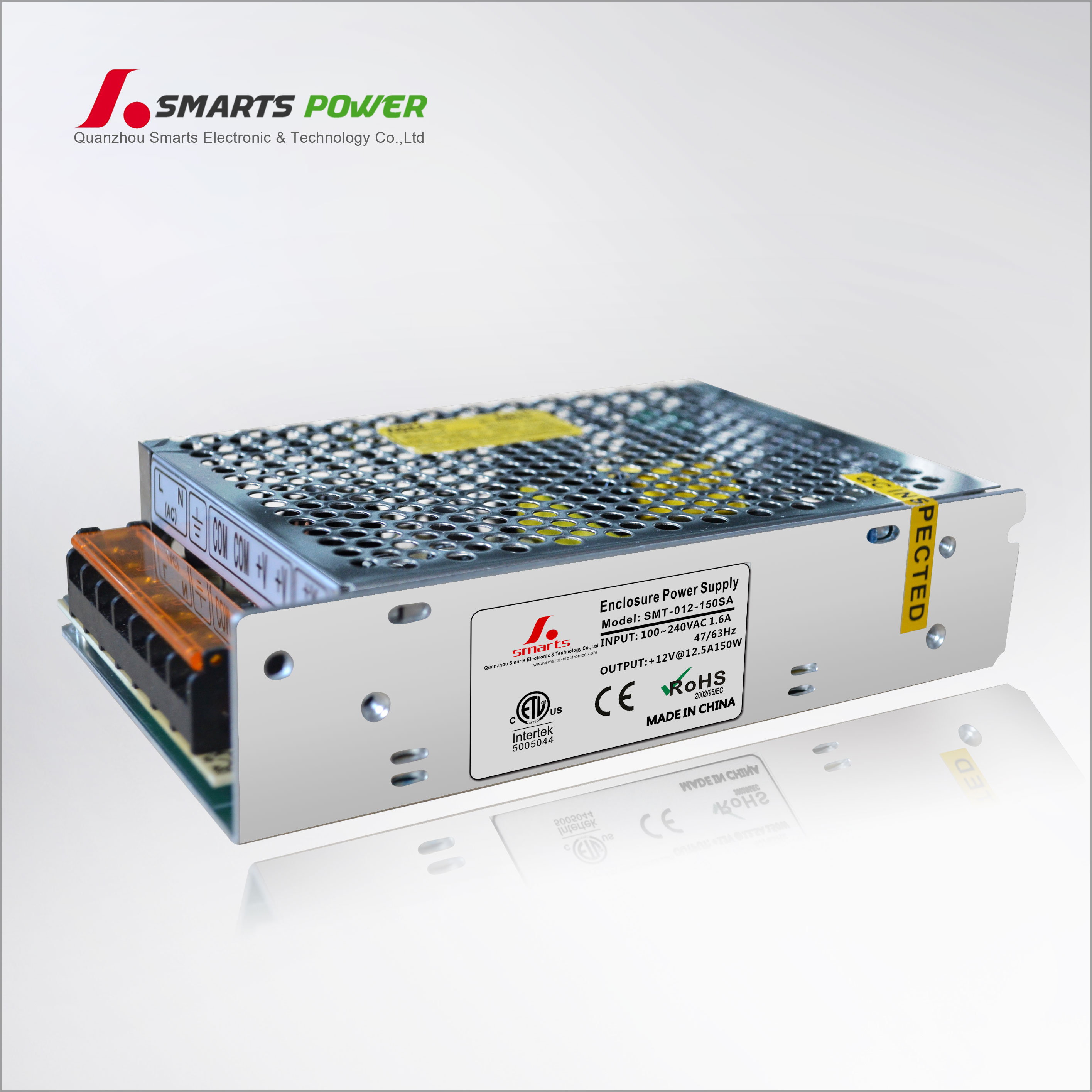

 110vac to 12vdc Transformer picture:

12v 150w transformer



packing and shipping

110vac to 12vdc transformer

Trade Term of Smarts Electronics’ led driver power supply:

1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.

2. Lead time: normally in 7-12 workdays after deposit received.

3. Shipping port: Xiamen, China.

4. Discounts: We offer discount for big quantity.
