12v 24v DC 48W intertek triac dimmable led strip driver model

SMT-024-048VT is the 24v 48w constant voltage triac dimmable led driver which is no load limitation. That is to say, you can lod it into 1-48w led light.No need to consider the load limitation.
  • item no.:

    SMT-024-048VT
  • lead time:

    about 7 days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $16.6
  • Input Voltage:

    100-130v/170-265vac
  • Output Voltage:

    12V & 24V
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL/cETL FCC CE Rohs
  • Warranty:

    5 Year
inquiry now
product details

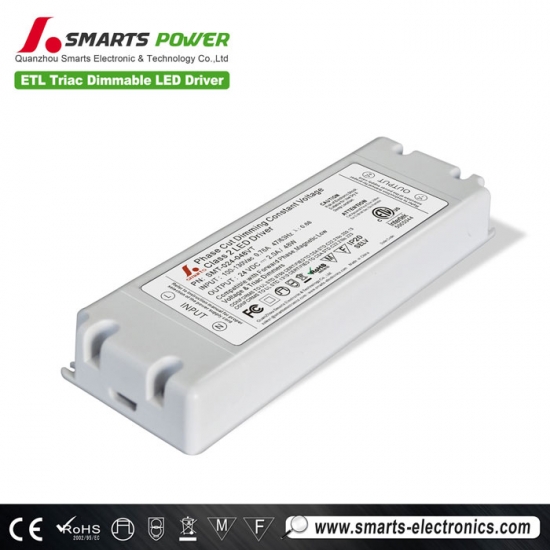

12v 24v DC 48W intertek triac dimmable led strip driver model


SMT-024-048VT is the 24v 48w constant voltage triac dimmable led driver which is no load limitation. That is to say, you can lod it into 1-48w led light.No need to consider the load limitation.  We stock many different types of driver to power your LED lighting products. Our Electronic Intertek Led Transformer has universal AC inputs for both residential and industrial lighting projects.



intertek led drivers model 12v


Smarts Electronics' 24 to 300 Watt Dimmable Drivers offer an elegant and compact dimming solution for any LED light strip or tape light projects in your home or business.  110V/ 220V AC to 24V DC and works with LED Compatible with Lutron, Leviton. PWM output which makes thedimming more smooth. DIMMING from 0 to 100% with no flicker.




 LED Driver Power Supply



Features for intertek led drivers model 12v:

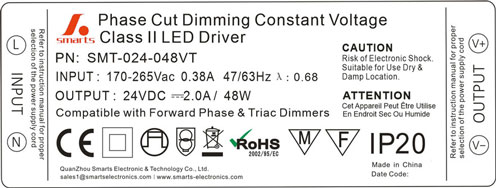

  • Part Number : SMT-024-048VT
  • Input : 100-130/ 170-265V AC Current
  • Output : 24V DC, 48 Watts (2 Amps)
  • Dimensions of Power Supply: 17.5cm x 6cm x 2.5cm
  • Dimensions with Junction box: 35cm x 7.5cm x 3.6cm
  • 5 Year Warranty
  • ETL/cETL CE Rohs Listed

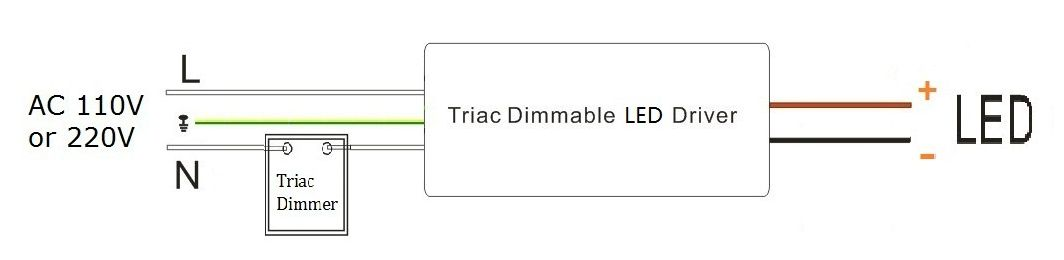

Simple Connection Diagram:

Dimmable LED Driver


Mechanical Specification for triac dimmable led strip driver:

etl ul cul approved triac dimmable 12v 48w 50w led driver



Input (L) and (N) with wires to be connected AC.

Output  LED SEC :(LED+) (LED-)



Dimming Operation for intertek led drivers model 12v:

  • The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  • Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
  • Please try to use dimmers with power at least 2.5 times as the output power of the driver.
  • for Forward phase,Magnetic low voltage and Triac Dimmers


Warning:

  • Prevent to reverse polarity;
  • Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
  • Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
  • Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.


Derating Curve:

Power Supply

  • To extend their life, please refer to the Derating Curve and derate according to the temperature

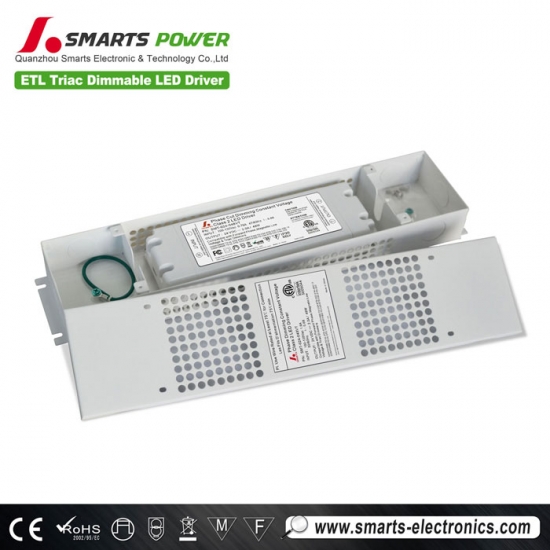

24V 48W triac led dimmable driver tansfomer with Junction Box:

triac dimmable 48w led driver



We have 7 kinds of led drivers or led power supply:
  • Constant Voltage LED Driver
  • Constant Current LED Driver
  • Triac CC&CV Dimmable LED Driver
  • 0-10v  CC&CV Dimmable LED Driver
  • DALI CC&CV Dimmable LED Driver
  • Power Adapter
  • Switching Power Supply

All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.


    Frequently Asked Questions:

    Q1. What's the trade terms you can do??
    A1: We accept EXW,FOB..(Optional)

    Q2. What's shipping mode can we choose?
    A2: Express, Ocean and air transportation (optional).

    Q3. What's the MOQ?
    A3: Our MOQ is 1pcs. better price for large quantity;

    Q4. What can you do if the product is broken?
    A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

    Q5. Can i get products with my own logo??
    A5: Sure, you can, MOQ is 500pcs.



    Q6. Can i get a sample for testing??
    A6: Sure, but sample fees should be charged on your account.

    Q7. What's the mormal lead time??
    A7: 7 working days for samples, 15 working days for mass production.

    Q8. What's the payment conditon?
    A8: T/T in advance or 30% deposit and 70% before delivery (optional)

    Q9. What's the Payment do you have?
    A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
