230v 110v ac 24v 12v dc 6a adapter power supply

  • SMT-012-072VP
  • 1
  • Xiamen
  • China
  • about 7 working days
  • CONTACT US NOW
  • Product Detail

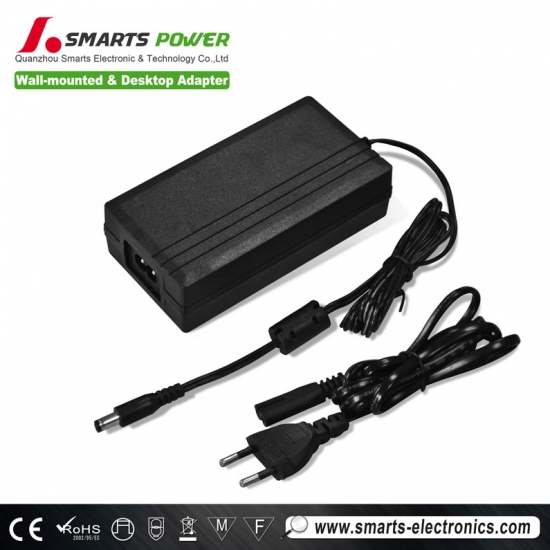

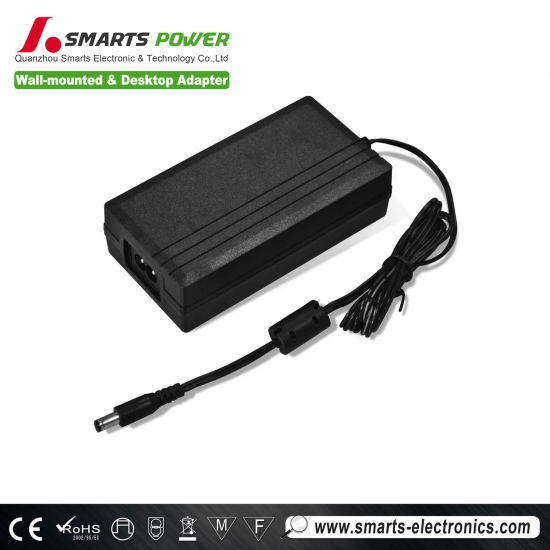

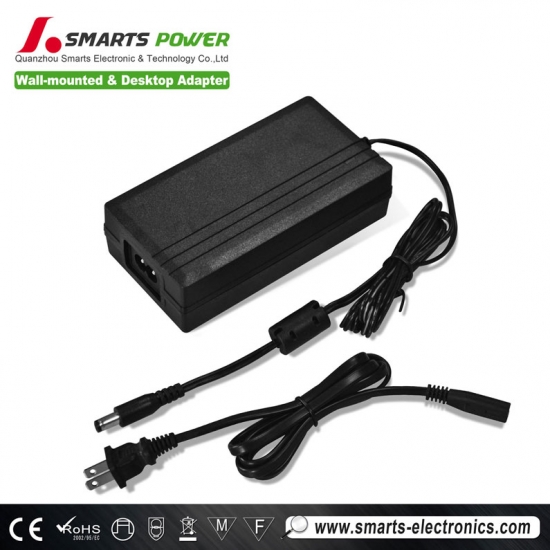

230v 110v ac 24v 12v dc 6a adapter power supply

1.Specification:

model

output voltage

Current

power

Tol.

R&N

Effi.

SMT-012-072VP

12V

6.0A

72W

±3%

80mV

>82%

SMT-024-072VP

24V

 3.0A

72W

±2%

180mV

>82%

2. INPUT REQUIREMENTS:
2.1 Operating range: 90-264VAC
2.2 Rated Input Voltage :100-240VAC
2.3 Input Frequency Range: 50/60Hz +/-3Hz
2.4 Input In-rush Current: 100A max
2.5 Input Current:1.5A max

3.OUTPUT REQUIREMENTS:


3.1   Output Voltage Regulation

   The total output voltage regulation shall be +/-5%,including the effects of line voltage variations,load current,ripple and noise,and the AC component of the load current.

3.2   Output Voltage Ripple
   The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.

   Ripple and Noise:50/60Hz Ripple + Switching Ripple and Noise

Ripple and Noise are measured at the end of output cables which are added a
0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.

4. EFFICIENCY:
   When 220VAC line input voltage (100-240 VAC),the efficiency shall be >82% at rating load.

5. DIELECTRIC STRENGTH (Hi-Pot) TEST:
   Finished product withstands with AC3000Vrms/50Hz,5mA max,
   primary to secondary, 1 minute for type test,1 second for production test.

6. INSULATION RESISTANCE:
   Primary to secondary: 10MΩ min at 500VDC.

7. PROTECTION:
7.1   Short Circuit Protection
   If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.

7.2  Over Shoot
    The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.

7.3  Start-up time
    The start-up time is less than 2 second.

8.ENVIRONMENTAL CONDITIONS:
8.1  Temperature
    Operating temperature:  0℃  to  +40℃
    Storage temperature :  -20℃ to  +60℃

8.2  Humidity
Relative humidity:≤95%

8.3  Operating Ambient Altitude
     Altitude:0-3000m

8.4  Operating at the lower temperature
      At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.
8.5 Operating at the high temperature
    At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

9. COOLING:
    Cooling shall be with natural convection cooling.

10.Burn-in
    The burn-in test will be performed at least 4 hours at centigrade
    degrees under full load Condition.

11.Referenced standard:
11.1  EMI Standards
Reference  EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998
EN55013   EN55020

11.2  Safety Standards
    The adapter shall be meet certified with the following safety standards.




12.  MOUNTING CONNECTORS:
12.1  AC Input Connector
     Spec :2Pin

12.2  DC Output Cable
     Wire : (Optional) SPT-1 18AWG*2C  L=1200mm  Color: Black (.)
     Plug : (Optional) 5.5 x 2.1x 10mm

13.  MECHANICAL FEATURES:
13.1  Dimension(Size)
    Length: 119.5mm
     Width: 62.5mm
     Height: 33.5mm

13.2  Weight

     The Power Supply unit : 240±10g
