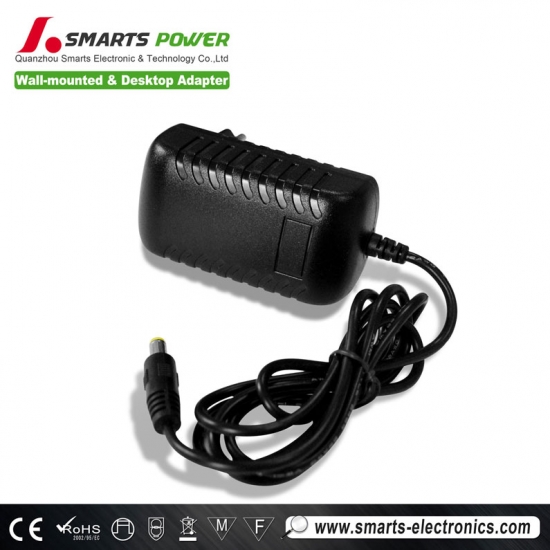

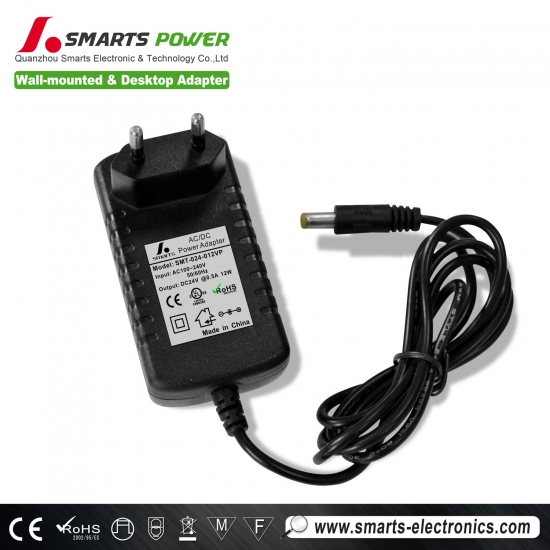

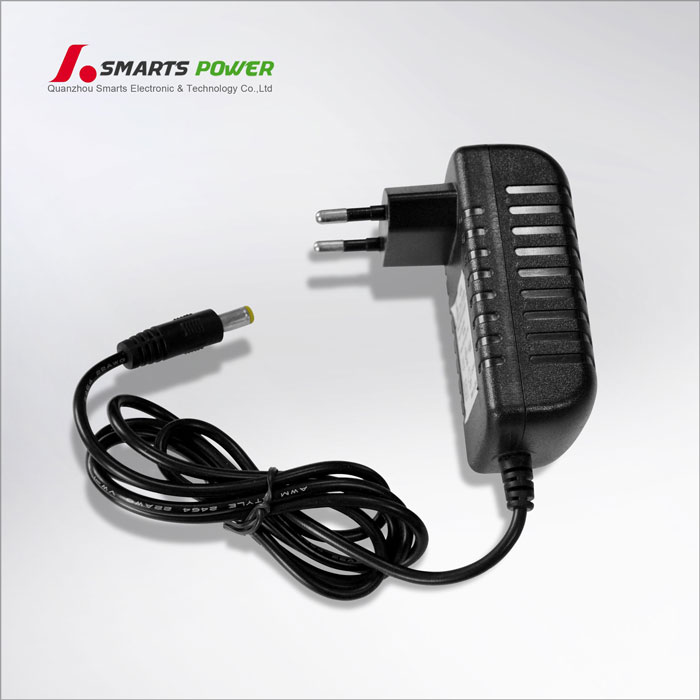

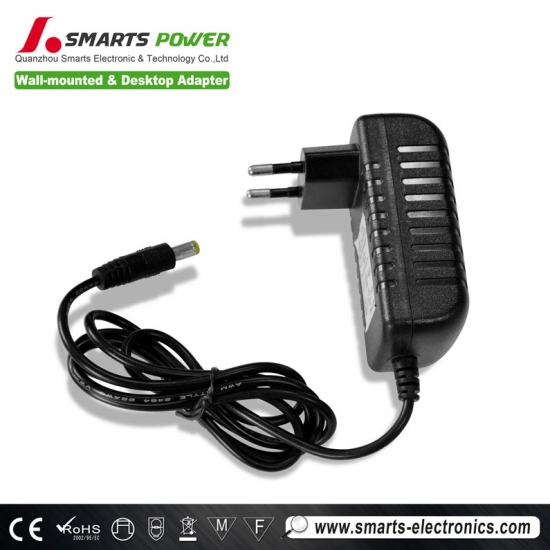

AC/DC Switching Power Supply/Adapter 0.5a 24v 12w for CCTV camera

  • SMT-024-012VP
  • 1
  • Xiamen
  • china
  • about 7 working days for sample order
  • 100~240vAC / 47-63Hz
  • 24vdc
  • 0.5a
  • constant voltage
  • CE ETL ROHS
  • 18 month
  • CONTACT US NOW
  • Product Detail

AC/DC Switching Power Supply/Adapter 0.5a 24v 12w for CCTV camera



Product parameters:

Model No.

Input (Vac)

output (Vdc)

Current (Amp)

power (Watt)

   Tol.

    R&N

    Effi.

SMT-012-012VP

100-240V

12Vdc

1Amp

12W

±4%

100mV

>82%

SMT-024-012VP

100-240V

24Vdc

0.5Amp

12W

±4%

100mV

>82%

  • wall-mount type AC/DC switching power supply
  •  Low standby power consumption
  • Approval CE,ROHS,ETL,
  • 18 months warranty

power adapter

General Specification

  • AC input voltage range ............. 100~240VAC / 0.5A
  • AC inrush current (max.) ...........Cold start, <40A at 230VAC
  • Overload protection................... Hiccup mode, auto-recovery
  • Over voltage protection .............110~140% rated output voltage
  • Hold up time...............................16ms at full load
  • Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
  • Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
  • Safety standards........................ UL1950, TUV EN60950-1 approved
  • EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61347-1
  • Length of output cable................180cm of SPT-1,18AWG x2C
  • Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type

PROTECTION:

  • Short Circuit Protection

   If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.

  • Over Shoot

    The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.

  • Start-up time

    The start-up time is less than 2 second.



ENVIRONMENTAL CONDITIONS:

  • Temperature

    Operating temperature:  0℃  to  +40℃

    Storage temperature :  -20℃ to  +60℃

  • Humidity

Relative humidity:≤95%

  • Operating Ambient Altitude

     Altitude:0-3000m

  • Operating at the lower temperature

      At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

  • Operating at the high temperature

    At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

  • COOLING:

    Cooling shall be with natural convection cooling.

  • Burn-in

    The burn-in test will be performed at least 4 hours at centigrade

    degrees under full load Condition.

  • Referenced standard:

EMI Standards

Reference  EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998

  • Safety Standards

    The adapter shall be meet certified with the following safety standards.

    UL60950-1,EN60950-1,GB4943-2001



MOUNTING CONNECTORS:

  • AC Input Connector

     Spec :2Pin  (CE PIN)

  • DC Output Cable

     Wire : (Optional) UL2468  24AWG*2C  L=1200mm Color: Black

     Plug : (Optional) 5.5 x 2.1x 10mm  Turning fork line



MECHANICAL FEATURES:

  • Dimension(Size)

     Length: 75mm

     Width: 42mm

     Height: 30mm

  • Weight

     The Power Supply unit : 79±10g

  • Vibration and shock

      No Evidence of any mechanical or functional damage after the vibration and shock testing.



Test conditions

Acceptance Criteria

Frequency

10-55Hz

Nominal functional test should be satisfied after the test

Sweep

For each axis(X,Y,Z)

Displacement

0.15mm

Periodicity

10



  • Drop test

After Dropping from a hight  of   100  cm onto a wooden floor , Dropping at  6  sides  totally,  NO breakage should be happened in the test piece.



  • Bending Test

     Fix the power supply and its plug, apply a load of 200g to the other end, turn the cable by +/-60℃ carry out this process 1000 times, at the rate of 20 times per minutes. No abnormality in mechanical and electrical Characteristic and disconnection within 30% after the test.

     230v ac 24v dc 12w adapter



DIAGRAM DATA:( See to attach the diagram)

 230v ac 24v dc 12w adapter



Remarks:



1) UL2468  24AWG*2C  L=1200mm Color: Black



2) PLUG:5.5 x 2.1 x 10mm  Turning fork line
