Non-dimmable LED Driver

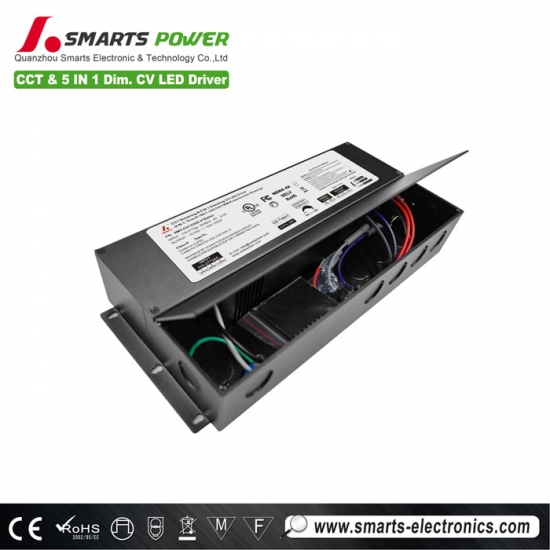

CCT triac 0-10V 1-10V dimming Constant voltage led driver 300W with junction box 277Vac 300w led power supply

277Vac 300w led power supply with junction box Exclusive patent design of “Clamshell” junction box Title 24 JA8 compliant


  • item no.:

    SMT-CV12300-VTDHV3
  • brand:

    SMARTS
  • Output Voltage:

    12-48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    300W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    289*132*42.5mm
  • Weight:

    2.15kg
  • Certification:

    UL cUL ROHS
  • Warranty:

    7 Years
inquiry now
product details

CCT triac 0-10V 1-10V dimming Constant voltage led driver 300W with junction box 277Vac 300w led power supply


UL cUL 5 in 1 dimmable Constant voltage led driver 300W With Short-circuit, over-temperature, over-load protection for indoor and outdoor use; Wet, damp, and dry location.


  Specification


Model Number SMT-CV12300-VTDHV3 SMT-CV24300-VTDHV3
OUTPUT
Rated Power 300W 300W
Rated Voltage 12V 24V
Rated Current 25.0A 12.5A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC   86%@277VAC 86% @ 120VAC  87% @277VAC
AC Current(Typ.) 2.32A
Inrush Current(Typ.) 15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 254x132x42.5mm (L*W*H)  N.W: 1.86kg
Packing 10pcs/CTN   G.W:19.8KG   SIZE: 300*285*250mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Unique Selling Points


      1)Voltage Reduce Output
√Dimming range: 100%-0.01% Ultra Deep Amplitude
√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
√Works with single channel dim to warm LED strip/tape (2 wires).
√Works with two channel CCT warm-dim LED strip/tape (3 wires).


2)Compatible PWM & Voltage Reduce output
√synchronously dimming the LEDs with different starting voltages.
√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape


  Series Information


Include 60-340W, single & multiple outputs



SMT-xxyyy-VTDHV3  in Junction box

SMT-xxyyy-VTD-S    no Junction box



xx=12/24/36/48V

yyy=60/96/100/150/192/200/300/340W


  Block Diagram

  Mechanical Diagram

  Wiring Diagram


Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

Triac & 0-10V Dimmable J-box 96W


2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

Triac & 0-10V Dimmable J-box 96W
