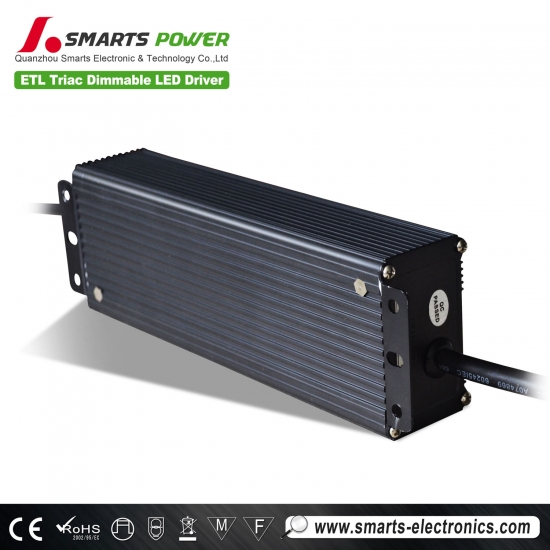

CE single output 120w triac dimmable power supply 36v

  • SMT-036-120VT
  • 1
  • Xiamen
  • China
  • about 7 working days for sample order
  • CONTACT US NOW
  • Product Detail
Product Item: CE single output 120w triac dimmable power supply 36v


model

SMT-012-120VT

SMT-024-120VT

SMT-036-120VT

SMT-048-120VT

Output

DC Voltage

12V

24V

36V

48V

Voltage Accuracy

±0.5V

±0.5V

±0.5V

±0.5V

Rated current

10.00A

5.00A

3.33A

2.50A

Rated power

120W

Input

Voltage Range

90~135V AC/170~265V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.92/110V,PF>0.93/170V,PF>0.95/220V,PF>0.95/265V

Full Load Efficiency(Typ.)

>85%

>85%

>85%

>85%

AC Current(Typ.)

0.66A/110VAC  0.63A/170VAC  0.57A/220VAC  0.52A/265VAC

Leakage current

<0.27mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

<140VAC(90~135V) , <270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Weight

1.3Kg

Size

230*70*46mm(L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Features:
Input voltage range 90-135VAC/170-250VAC
Built-in PFC function, PF> 0.92
Efficiency > 87%
Protections:short circuit/over voltage/over heat
IP67 design for indoor or outdoor installations
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lightings.
3 years warranty


We can supply you Junction Box for all kind of led driver/power supply


What Service we can supply??

  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;

  1. We have our engineer team, if you have any question about your LED applications, let us know freely.


Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.

Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
