class 2 CE ETL approved 60w desktop power supply ac dc adapter 12v 5a

  • SMT-012-060VP
  • 1
  • Xiamen port
  • china
  • about 7 working days for sample order
  • 100~240vAC / 47-63Hz
  • 12V
  • 5A
  • constant voltage
  • CE ETL ROHS
  • 18 month
  • CONTACT US NOW
  • Product Detail

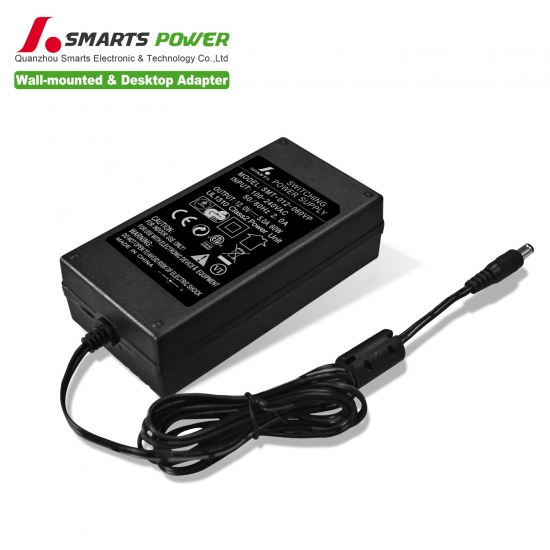

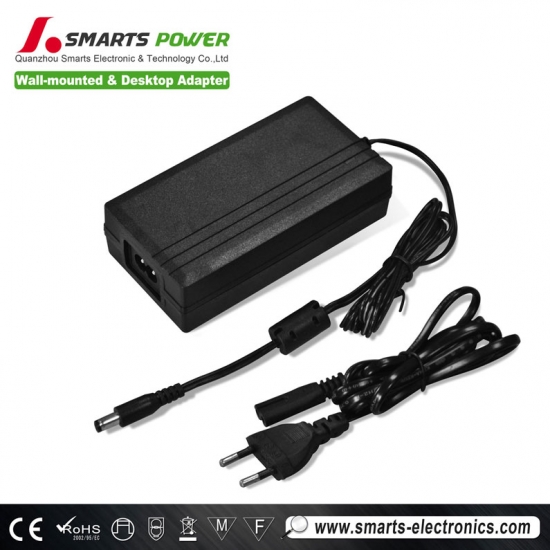

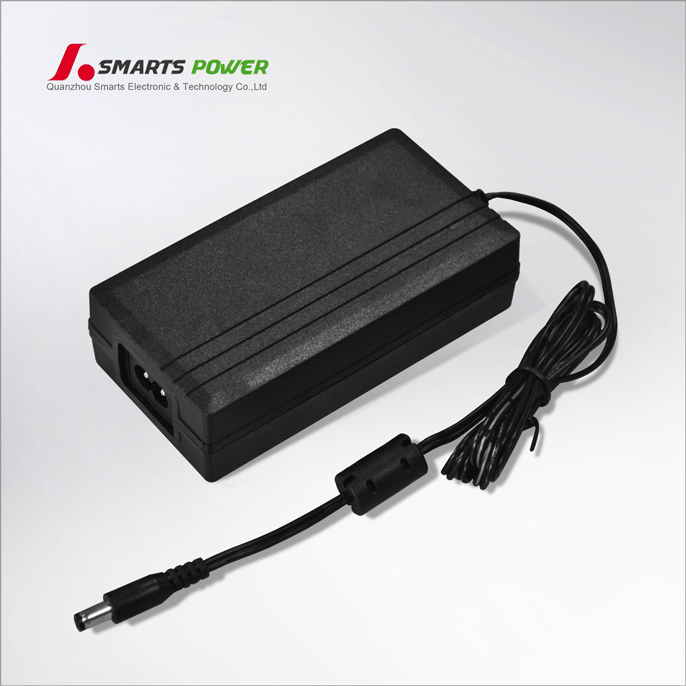

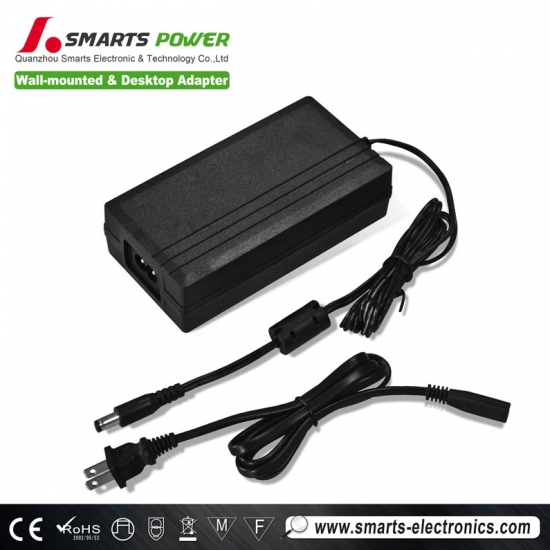

class 2 CE ETL approved 60w desktop power supply ac dc adapter 12v 5a


Description for adapter 12v 5a :


The range of input voltage of adapter 12v 5a is 100-240Vac/ 47-63Hz. The parameters of output are 12vdc 5amp 60watt led power adapter. The efficiency for this model is 83% and its IP rank is IP20. Case material is Plastic Housing. AC cord is US/EU standar US/EU plug and DC Cord is 1.2m UL/CE standard cord with DC connector (5.5*2.1*10mm or  5.5*2.5*10mm ). For this unit we give 18 month warranty and it got CE ETL ROHS certification.


adapter 12v 5a


The relative product for ac adapter 12v 5a:


For power adapter we do 12vdc 24vdc two models. And for 6w 12w 18w 24w 30w switching power adapter we design it as wall-mount type adapter and 36w 48w 60w 72w 90w 100w 120w switching power adapter we design it as desktop power adapter. Any models if workable for just feel free to contact with us.


PROTECTION:


1 Short Circuit Protection

If short circuit occurs,all the output should be protected. After the fault, the

adapter automatically recovers.


2 Over Shoot

The Output over shoot at turn-on shall not exceed 10% of normal voltage value

with or without the load connected.


3 Start-up time

The start-up time is less than 2 second.


ENVIRONMENTAL CONDITIONS:


1Temperature

Operating temperature: 0℃ to +40℃

Storage temperature : -20℃ to +60℃


2 Humidity

Relative humidity:≤95%


3 Operating Ambient Altitude

Altitude:0-3000m


4 Operating at the lower temperature

At -0℃,with the rated voltage 100-240Vac charged to the primary and

unloaded and full load on the secondary 8 hours, no abnormality in electric

and mechanical characteristic, after 2 hours recovery at the room temperature.


5 Operating at the high temperature

At +40℃,with the rated voltage 100-240Vac charged to the primary and

unloaded and full Load on the secondary 8 hours, no abnormality in electric

and mechanical characteristic, after 2 hours recovery at the room

temperature.


Burn-in


The burn-in test will be performed at least 4 hours at centigrade

degrees under full load Condition.


The shipping details :


The price we give is base on EXW price. But we also accept FOB, the Loading port is Xiamen.

For samples we usually use DHL/ FedEx / UPS / TNT international delivery.

As for bulk order, by sea or by air is deciding by our customer.


The payment :


Our customer usually use Western Union, Paypal pay to us for sample order.

As for mass produce, we accept T/T payment. (30% deposit in advance, 70% before shipment)
