Non-dimmable LED Driver

slim types of led driver 12v dc output dimmable power supply

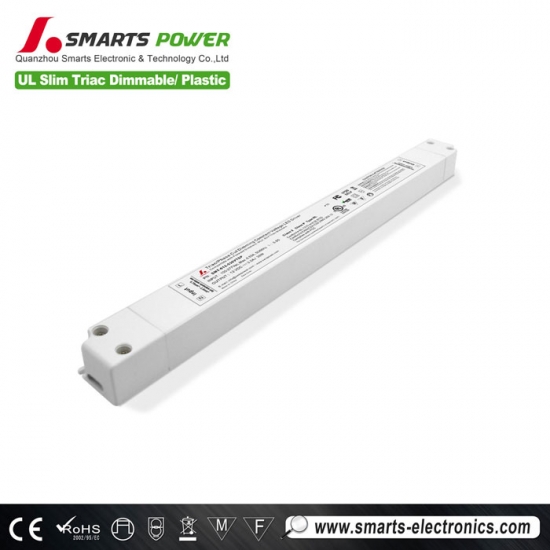

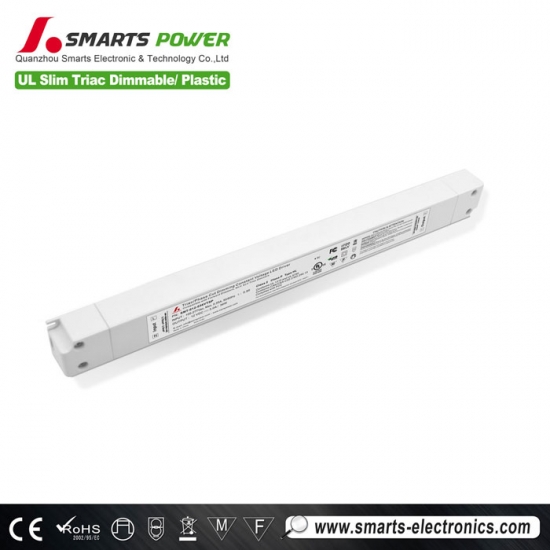

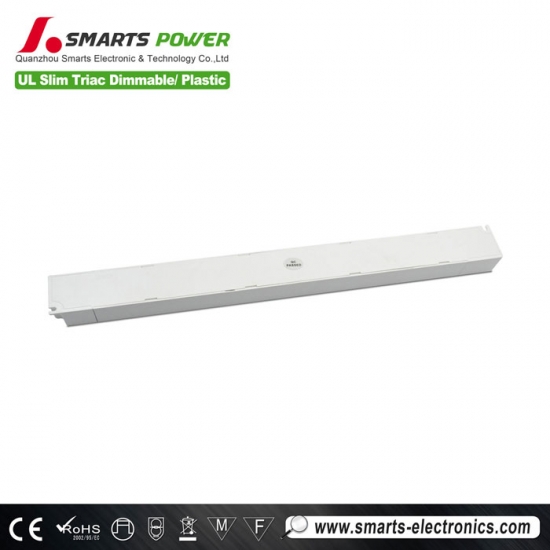

SMT-012-036VTSP is a 12v 36w dimmable led driver. A full range input of 100-277VAC makes this power supply suitable for both residential and commercial applications.

  • item no.:

    SMT-012-036VTSP
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12V
  • Output Current:

    3A
  • Working Mode:

    CV
  • Certification:

    UL
  • Warranty:

    7
inquiry now
product details

slim types of led driver 12v dc output dimmable power supply

SMT-012-036VTSP is a 12v 36w dimmable led driver. A full range input of 100-277VAC makes this power supply suitable for both residential and commercial applications. It is available work with leading edge and trailing edge triac dimmers.


  Features


·Output constant voltage type

·Input voltage range 100-277VAC

·UL/cUL listed, Class 2, Class P, Type HL approval

·Built-in PFC function / Efficiency > 82% / PF> 0.99

·Dimming range: 0~100% / load: 5~100%

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with leading edge and trailing edge triac dimmers available

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


  Specification


model

SMT-012-036VTSP

SMT-024-036VTSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Regulation

±0.5%

Load Regulation

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

0.5A/100VAC  /  0.23A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us

Leakage current

<0.27mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min. each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .
