277Volt input UL 0-10v dimmable led driver 24vdc 96w
Overview
277Volt input UL 0-10v dimmable led driver 24vdc 96w are engineered to work with 0-10V dimming controls for superior dimming performance. IP67 design suitable for dry/damp/wet locations
Features
Flicker-free dimming
12V and 24V models
Class 2
Efficiency > 88%
Aluminum case / IP67 rate
5 years warranty
Built-in PFC function PF>0.90
Product Specs
|
Model |
SMT-012-100V DH |
SMT-024-100VDH |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
|
Voltage Accuracy |
±0.5V |
||
|
|
Rated current |
8.33A |
4.0A (Class 2 ) |
|
|
|
Rated power |
100W |
96W |
|
|
|
Ripple&noise Max. |
200mVp-p 350mVp-p 350mVp-p |
250mVp-p 400mVp-p |
|
|
Input |
Voltage Range |
100～130VAC, 170~265VAC |
||
|
|
Frequency Range |
47～63HZ |
||
|
|
Power Factor ( Typ.） |
>0.90 |
>0.90 |
|
|
|
Full Load Efficiency（Typ.） |
>88% 86% 87% |
>88% 88% |
|
|
|
AC Current（Typ.） |
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/277VAC |
||
|
|
Leakage current |
﹤0.25mA/110V,277VAC |
||
 |
 |
 |
 |

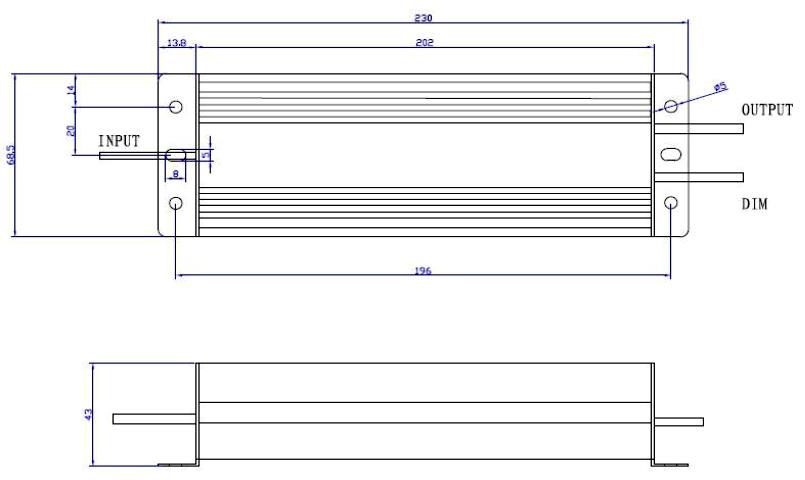

100W dimmable driver Mechanical Specification
※Input 18AWG*3C，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
※Signal 18AWG*2C，Red is（DIM+）,Black is（DIM-）
※Output 18AWG*2C，Blown is output（V+）,Blue is output（V-）
※Note: Any other requests we can customized.
