UL 12v 120w led driver dimmable 0 10v constant voltage 120watt

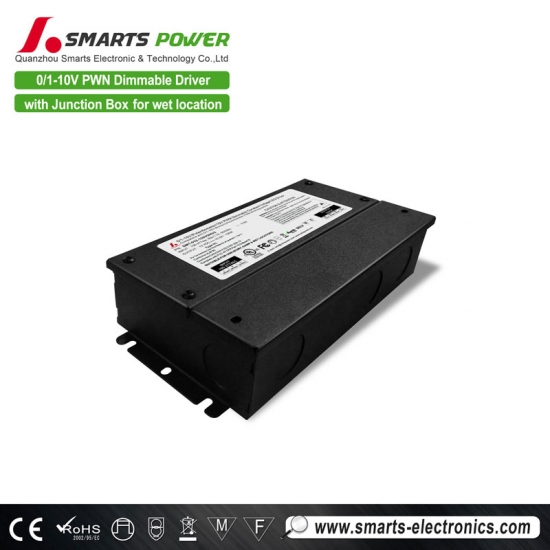

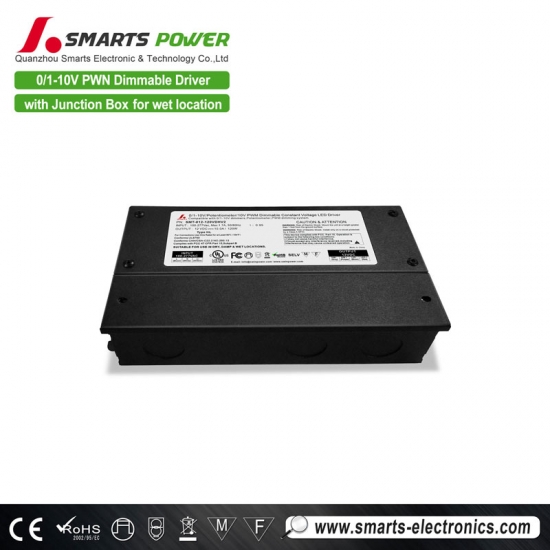

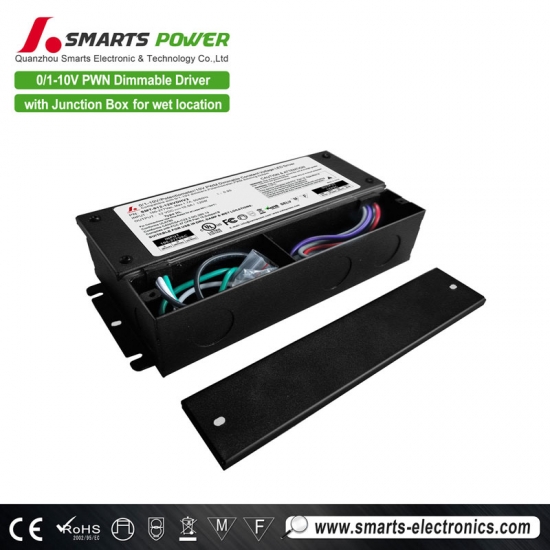

SMT-012-120VDHV2 is 120w led driver dimmable 12v 0/1-10v. It is led driver with junction box integrated, the rema rate is 4X which we have sent them to three party to test it. Hence it can be used at wet, damp, try location for indoor and output projects. It is compatible with AQ Lighting's led strip.
Product parameters
|
model |
SMT-012-120VDH (1.0 version) SMT-012-120VDHV2 (1.0 version)
|
SMT-024-120VDH (1.0 version) SMT-024-120VDHV2 (1.0 version)
|
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2%
|
|
|
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
120W |
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47-63Hz |
|
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
|
|
|
THD（Typ.）@ full load |
<20% |
|
|
|
Efficiency(Typ.)@ full load |
83% @120Vac 86%@277Vac 79% |
|
|
|
AC Current（Max.） |
1.3A@100VAC |
|
|
|
Inrush Current（Typ.） |
20A, 50%, 1.6ms |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20～90%RH, non-condensing |
|
|
|
Storage TEMP. Humidity |
-40～+80℃,10~95%RH |
|
|
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
Others |
Weight |
1.37Kg (1.0 version) |
|
|
|
Size |
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 260*105*45mm |
|
|
|
packing |
10PCS/ctn |
|
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |
Mechanical Specification
CompatibleDimmer Type

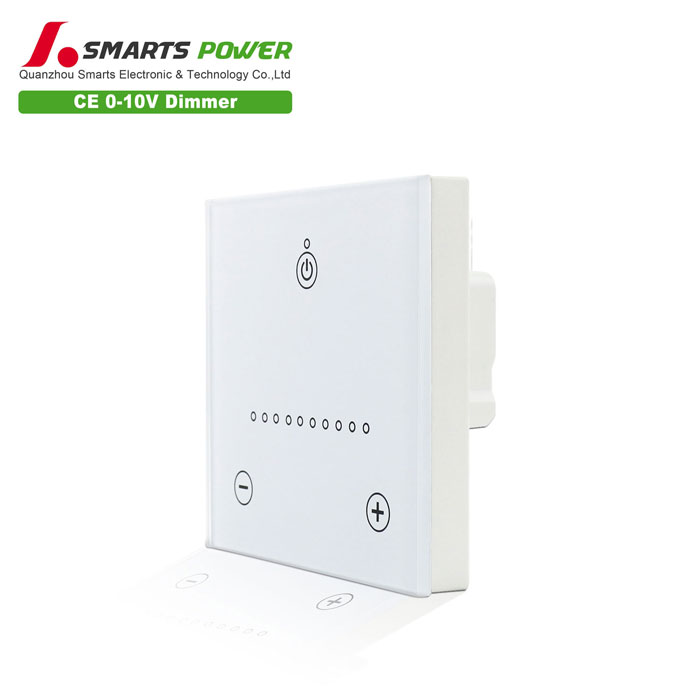

SMT50-D1 is 0-10v switch dimmer. It has CE ROHS approved, 2 years warranty. Its dimension is L86*W86*H38mm. It is very easy to installtion. It is dimming well with ledels cabinet light.
Related Products

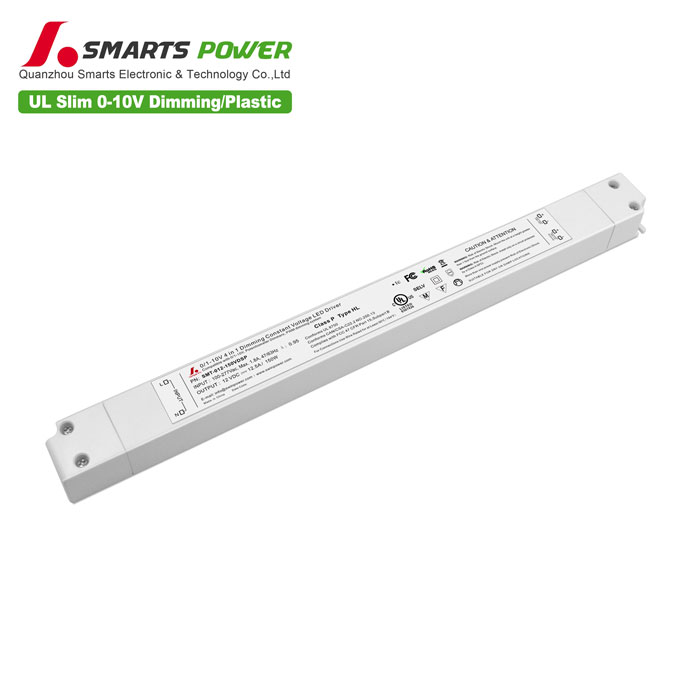

It is super slim 12v 150w 0-10v dimmable led driver. It is compatible with Lutron dimmers. Dimming range 0-100%.
Mode：SMT-012-150VDSP |
