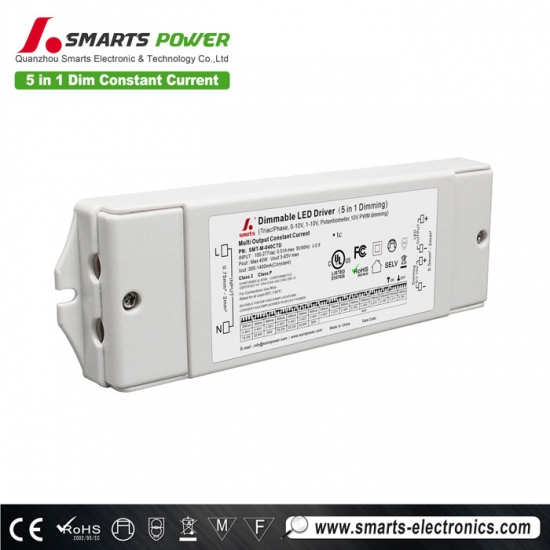

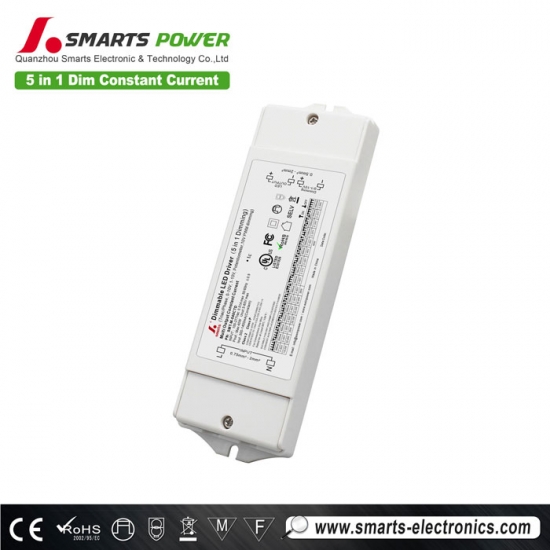

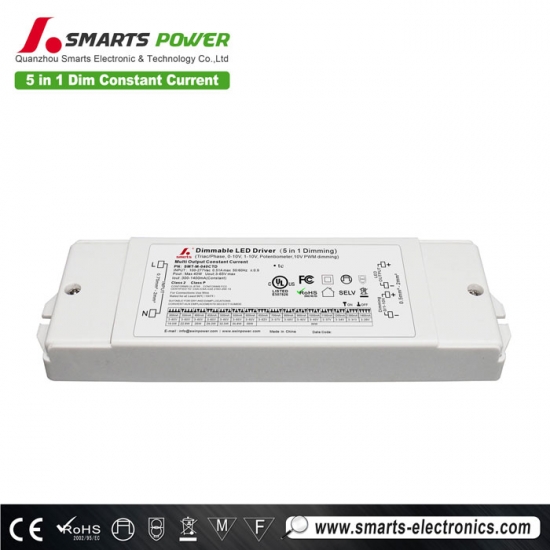

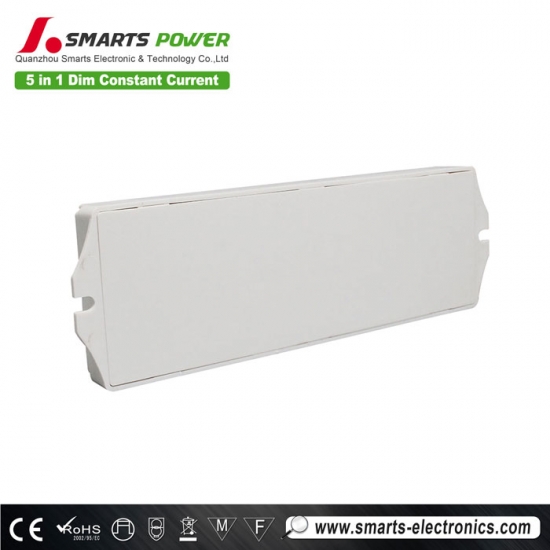

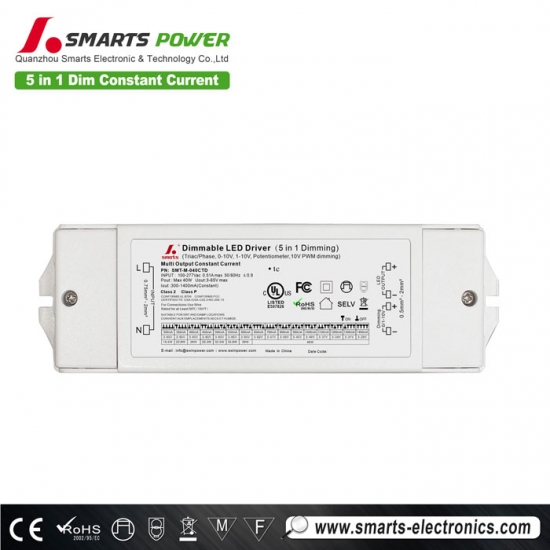

0 10v/triac/pwm 40w constant current led driver power supply 1400ma
This constant current 40w 0-10v/triac/pwm dimmable led driver has an input voltage of 100-277vac and has passed the UL certification. We provide it with a 7-year warranty. The quality is guaranteed, the body is small, and the plastic casing is suitable for indoor installation.

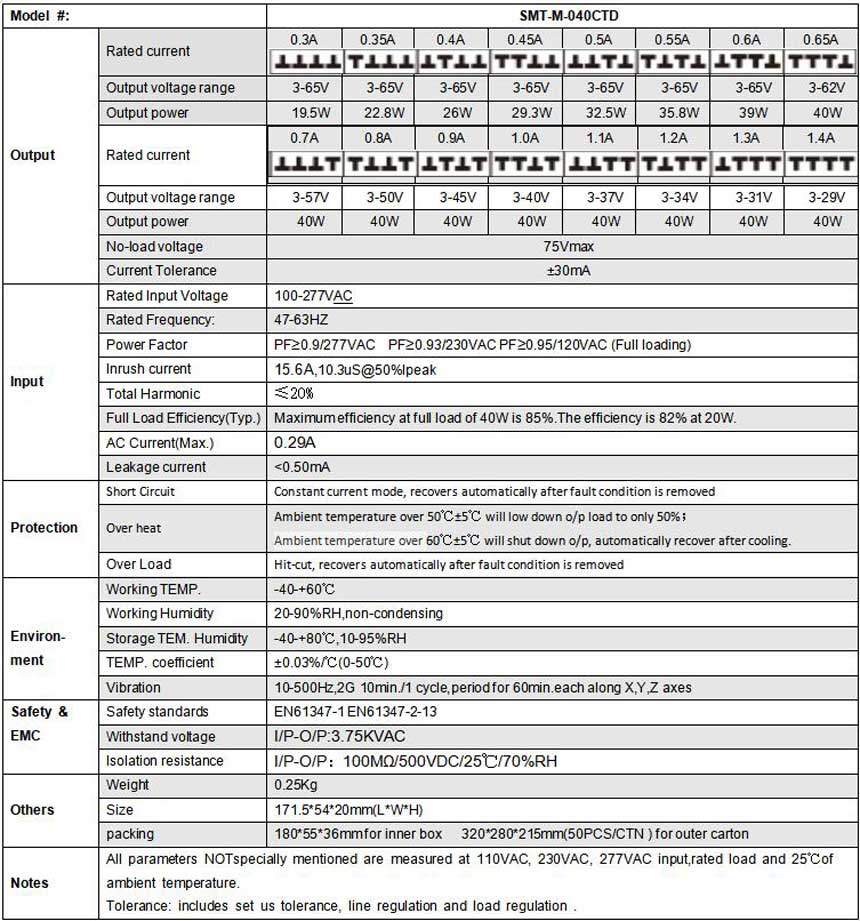

Specification
 |
 |
 |
 |

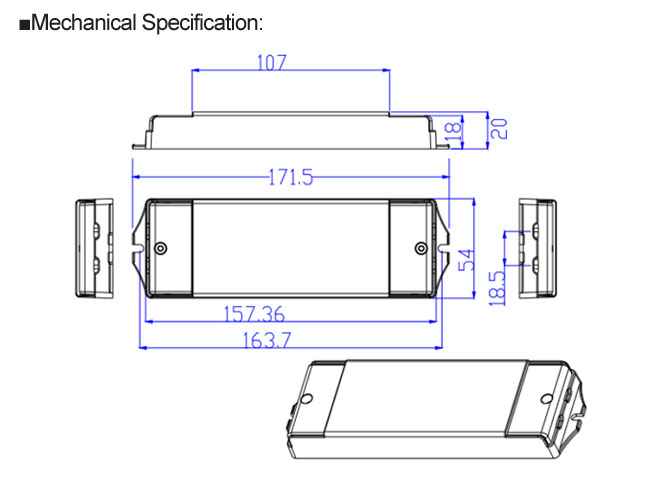

Mechanical Specification
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation
Related Products
|

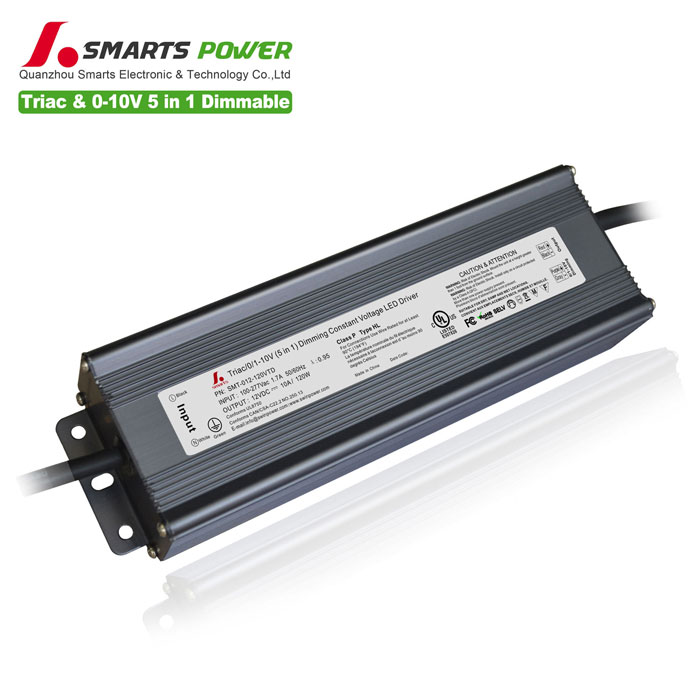

Mode：SMT-012-120VTD intput voltage：100-277V AC
