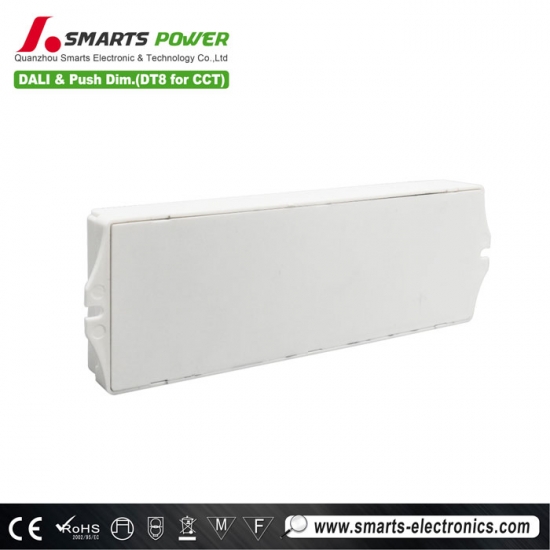

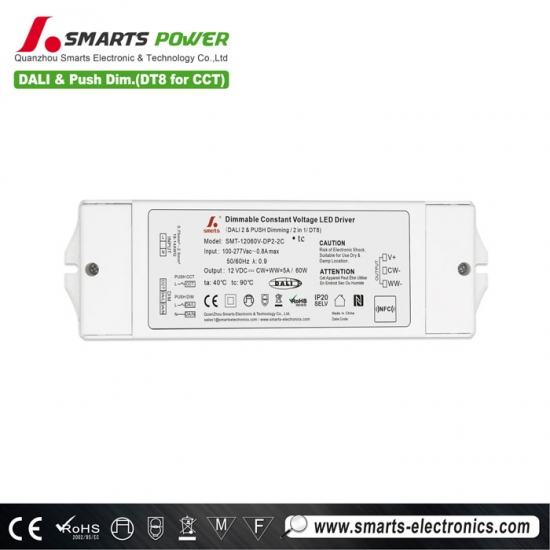

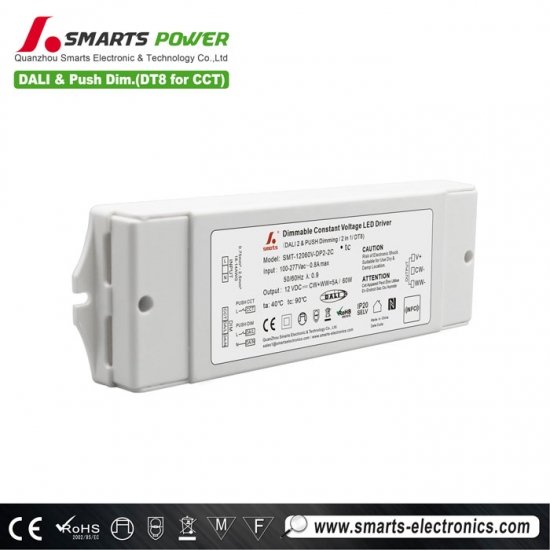

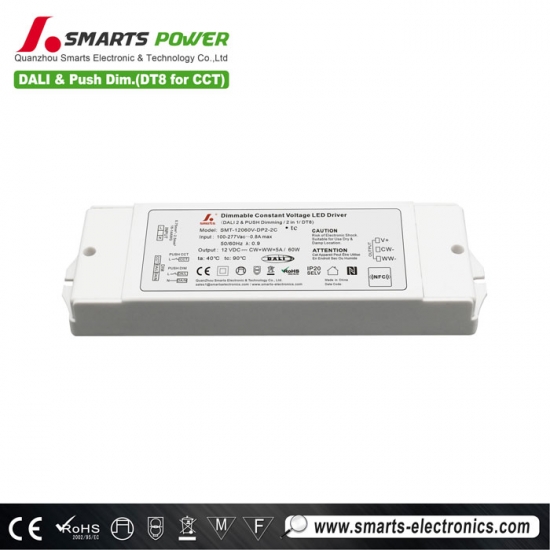

Dali 2&PUSH dimming dt8 60w 24v constant voltage dimmable led driver
The plastic-covered dali 2 & push 60w led driver complies with dali dimming protocol IEC62386 and has built-in NFC function to adjust output voltage, which is suitable for indoor intelligent lighting projects
Specification
| Model | SMT-12060V-DP2-2C | SMT-24060V-DP2-2C | SMT-36060V-DP2-2C | SMT-48060-DP2-2C | |
| Output | DC Voltage | 12V (12-13.5V adjust by NFC) | 24V (24-26V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 5A | 2.5A | 1.67A | 1.25A | |
| Rated power | 60W | ||||
| Load Regulation | ±1% | ||||
| Input | Standby power consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W |
| Voltage Range | 100-277VAC | ||||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤15%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 86.5%@120VAC; 88.5%@230VAC; 88.5%@277VAC; | ||||
| AC Current(Max.) | 0.8A | 0.8A | 0.8A | 0.8A | |
| Inrush Current (Typ.) | 16A, 204s@50%Ipeak (120VAC); 60.8A, 104us@50%Ipeak (230VAC);37.6A, 312us@50%Ipeak (277VAC) | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environ-ment | Working TEMP. | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 - 90%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC (EU); I/P-O/P:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11, EN61547 | ||||
| Others | Weight | 0.35Kg | |||
| Dimension | 192.5x62x24mm(L*W*H) | ||||
| packing | 290*215*140mm (20PCS/CTN ) | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||||
 |
 |
 |
 |

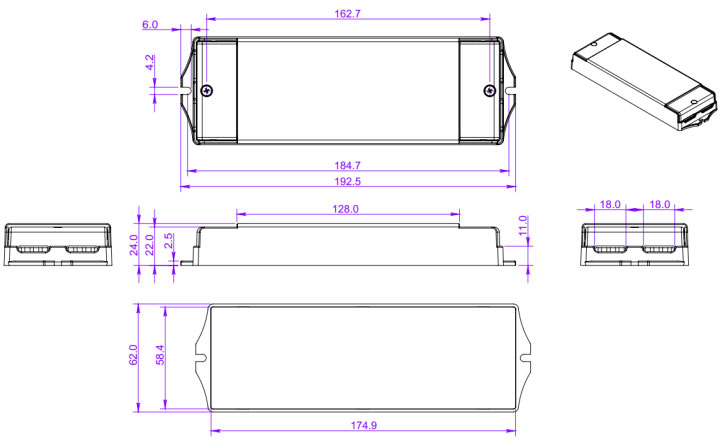

Mechanical Specification
※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
※DALI or PUSH Dim. terminals with DG126 terminals 2P:

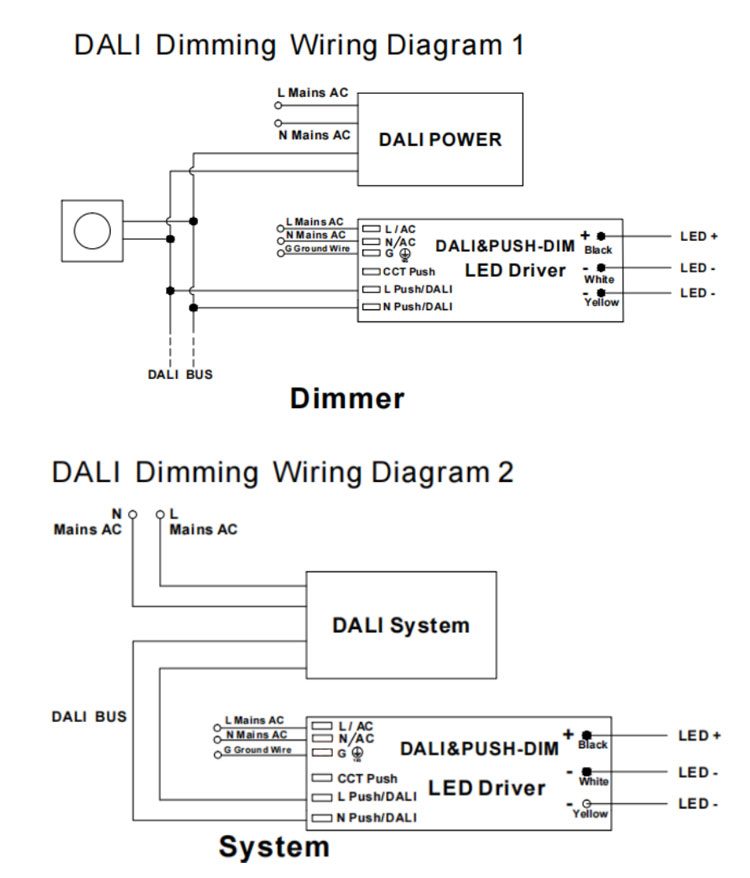

when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;

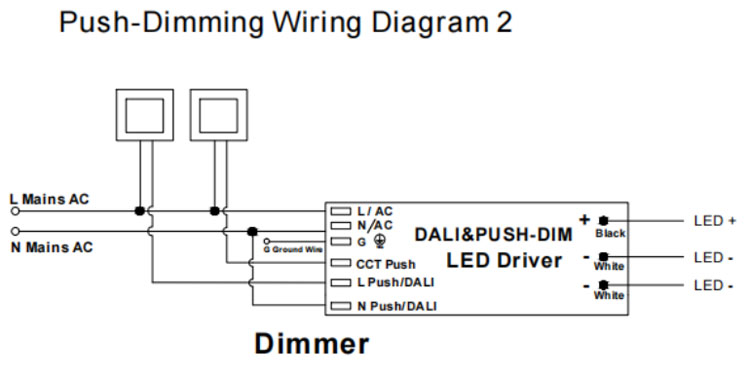

when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;
※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
※Note: Any other requests we can customized.
Dimming operation

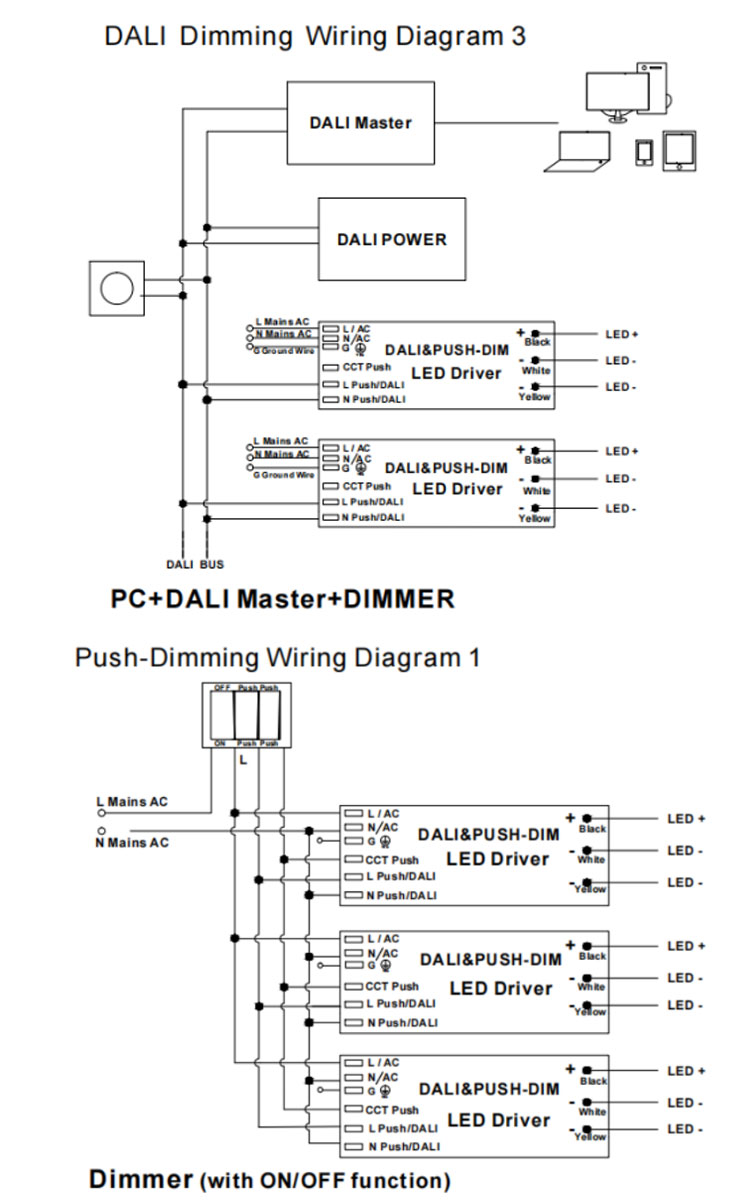

※Note: For DALI Dimming Wiring Diagram 3, please noted that
only one DALI power is need in the DALI bus, so no extra DALI
power is needed if the Master or Dimmer already includes the DALI
Power.
Related Products
|

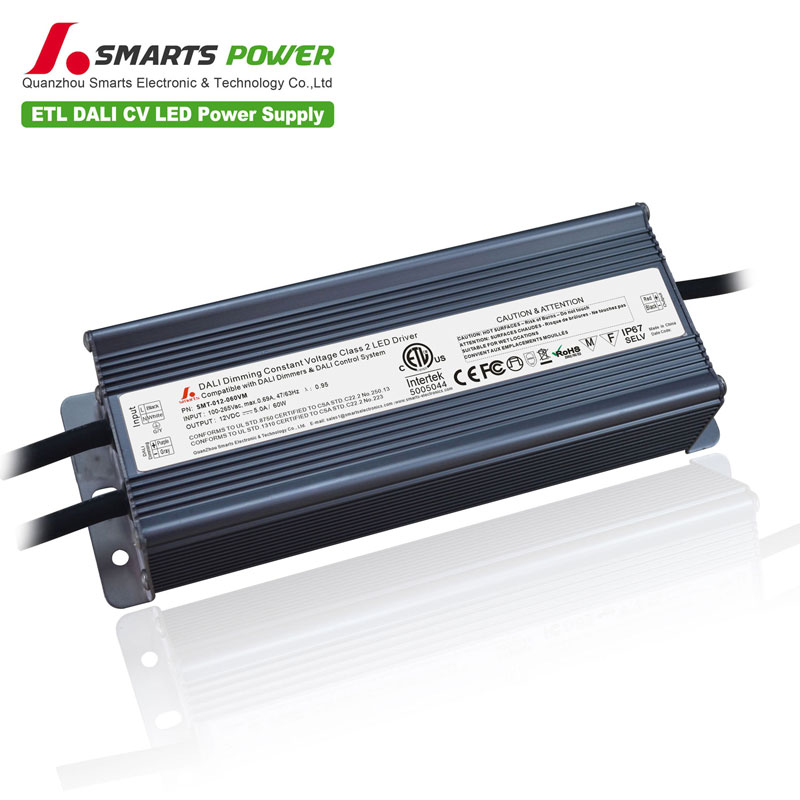

DALI dimming led driver is a 60W aluminum case with an input voltage of 100-265vac. It is ETL certified, easy to install, and effective in water and dust resistance
