Non-dimmable LED Driver

phase cut dimmable led driver 12v 200w 0-10v 5 in 1 power supply

SMT-012-200VTD is phase cut dimmable led driver 12v 200w. It is combine 0-10v dimming and triac dimming two dimming way in one led driver. It can work with ansell led's strip.

  • item no.:

    SMT-012-200VTD
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    16.67A
  • Working Mode:

    Constant Volatge
  • Certification:

    CE UL FCC ROHS
  • Warranty:

    7 years
inquiry now
product details

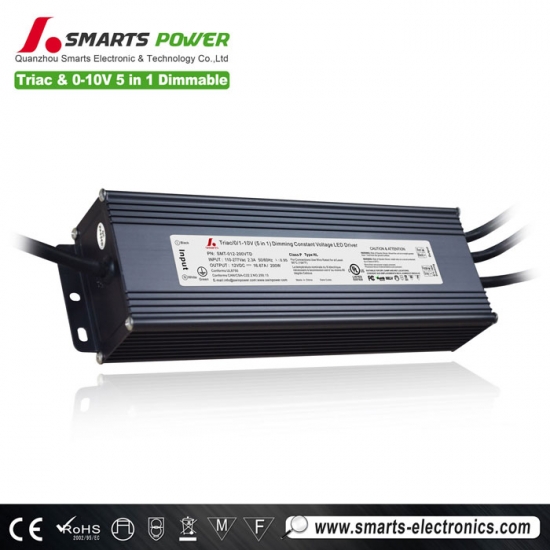

phase cut dimmable led driver 12v 200w 0-10v 5 in 1 power supply


SMT-012-200VTD is phase cut dimmable led driver 200w. Not only with triac dimming mode, it also has 0-10v dimming. Which will help you save sotck SKU. It has 7 years warranty, IP67 waterproof. It is dimming well with AQ Lighting's panel lighting.


  Product parameters

model

SMT-012-200VTD

SMT-024-200VTD

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

16.66A

8.33A



Load Regulation

±2%

±1%



Rated power

200W

200W

Input

Voltage Range

100~277V AC



Frequency Range

4763HZ



THD(Typ.) @full load

<20%@120VAC &277VAC



Power Factor ( Typ.

0.98@120VAC   0.97@277VAC

0.98@120VAC   0.95@277VAC



Full Load Efficiency(Typ.)

84%@120VAC   87%@277VAC

85%@120VAC   88%@277VAC



AC CurrentTyp.

2.3A



Inrush Current Typ.

15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC



Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed.



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Loading

≤120% constant current limiting, auto-recovery

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P:1.88KVac



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.5Kg



Size

256*78*47mm (L*W*H)



packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final

equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

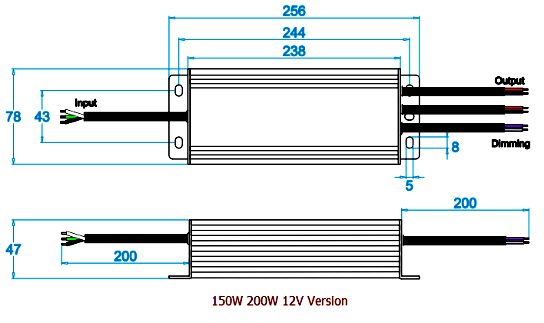

  Mechanical Specification

phase cut dimmable led driver

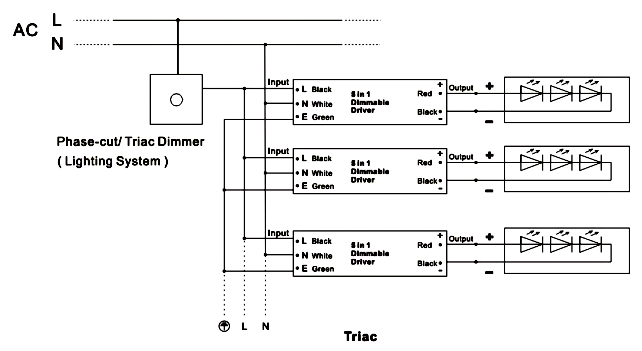

 Connecting solution:


phase cut dimmable led driver

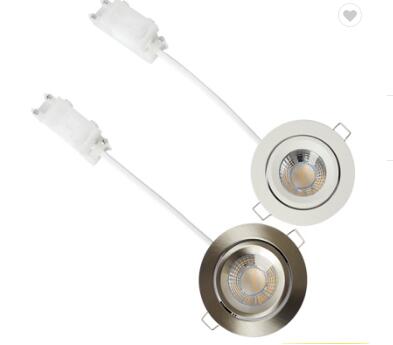

  Compatible Lighting Type


This 12v 200w 5 in 1 dimmable led driver is suitable to install with TCP LED Lights Bulbs’s lighting.


200w 5 in 1 dimmable led driver


  Related Products

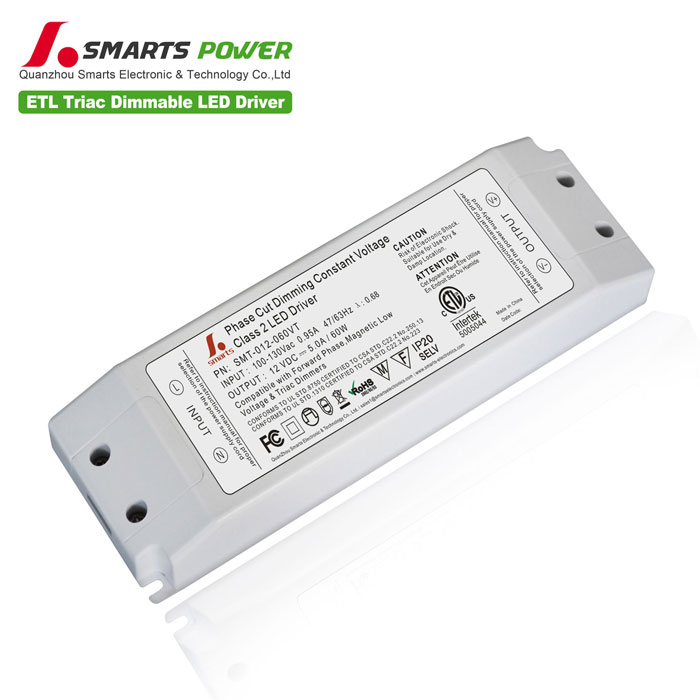

60w triac dimmable led driver
