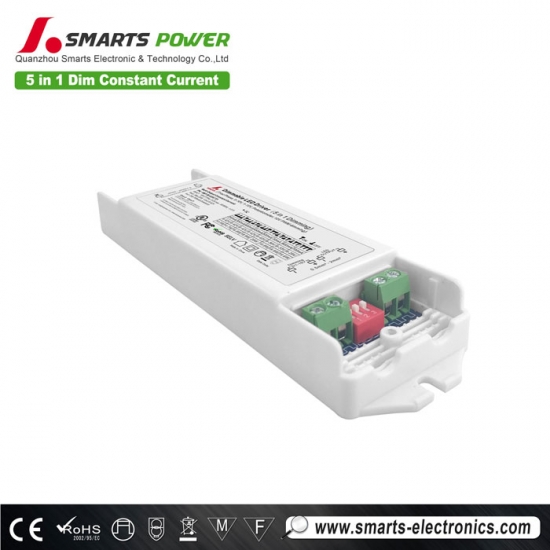

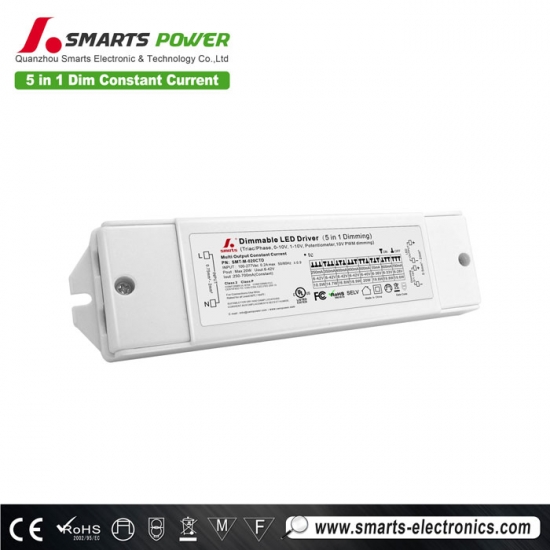

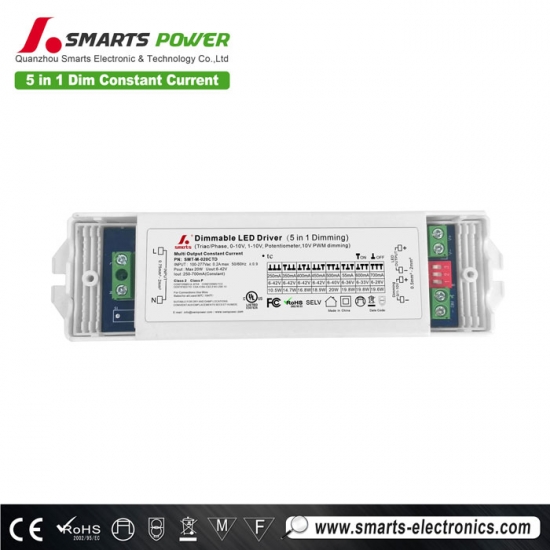

277VAC 250ma triac/0 10v dimmable constant current led power supply led driver
The new 5in1 dimmable led driver with an input voltage of 100-277vac has passed UL certification and is mainly sold to the North American market. This power supply has a DIP module that can adjust the output current according to user needs

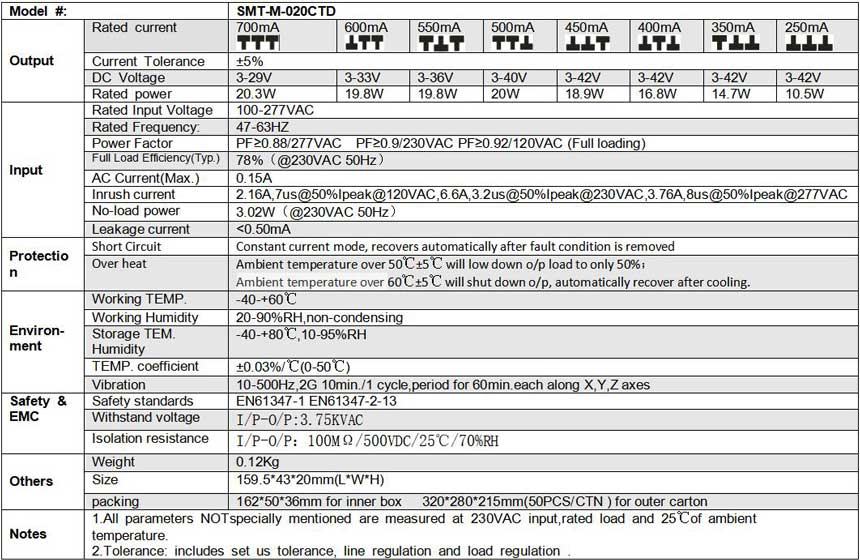

Specification
 |
 |
 |
 |

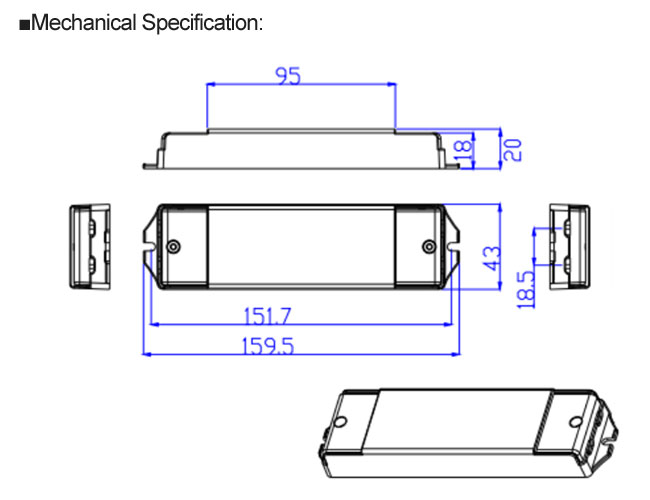

Mechanical Specification
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation
Related Products
|

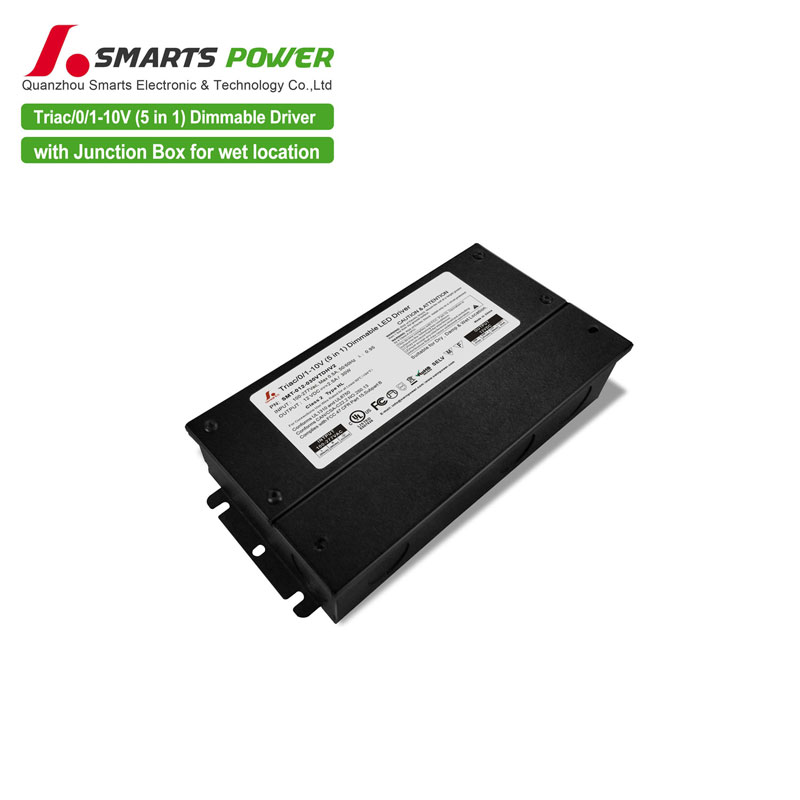

Mode：SMT-012-030VTDHV2 intput voltage：100-277V AC
