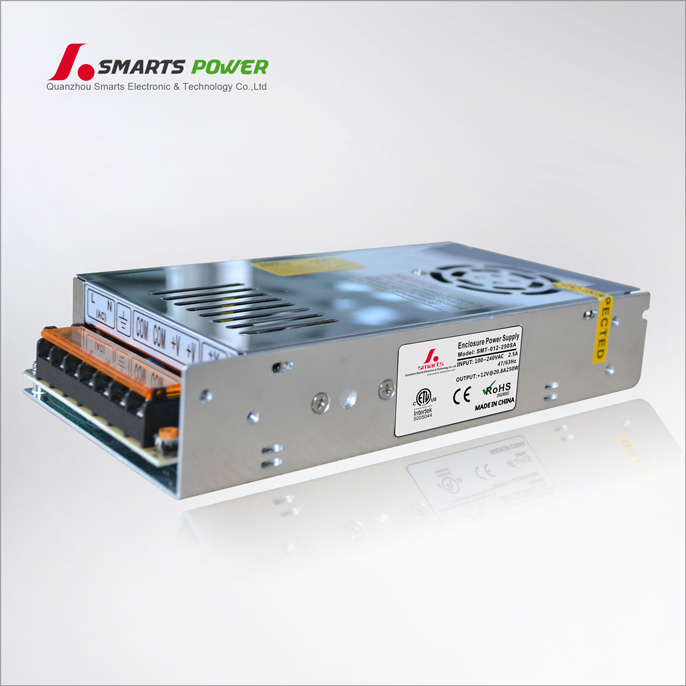

100-240vac 250w 12v 20a switching ac/dc power supply

Model

SMT-012-250SA

SMT-024-250SA

SMT-036-250SA

SMT-048-250SA

output

DC voltage

12V

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

20.83A

10.42A

6.94A

5.21A

Rated power

 250W

250W

250W

250W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

3.2A/115VAC,1.6A/230VAC

efficiency

82%

82%

82%

82%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC

protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage

 26.8-28.6V

30.6~33.2V

43.2~45.6V

54.8~56.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

short cricuit

-----

-----

environment

Working temp,humidity

-10°C~+50°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

EMC standard

Comply with EN55022,CLASSA

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C      of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire                    terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation
