Non-dimmable LED Driver

110vac to 24vdc 2a class II desktop type power supply

24v 2a switching power supply; switch mode power supply 12v 24v; 12vdc power supply
  • item no.:

    SMT-024-048VP
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T, Paypal, Western Union
inquiry now
product details

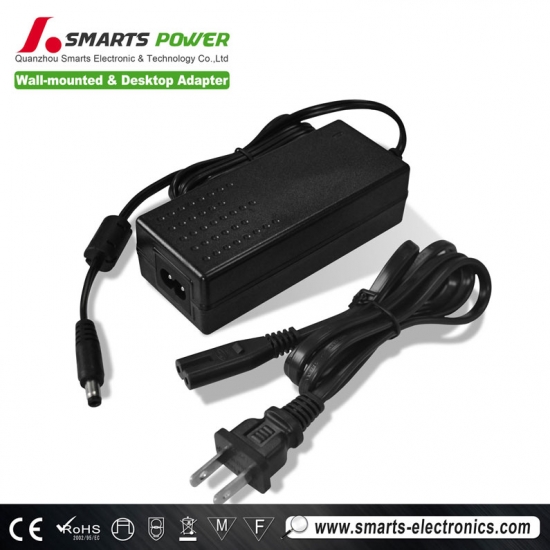

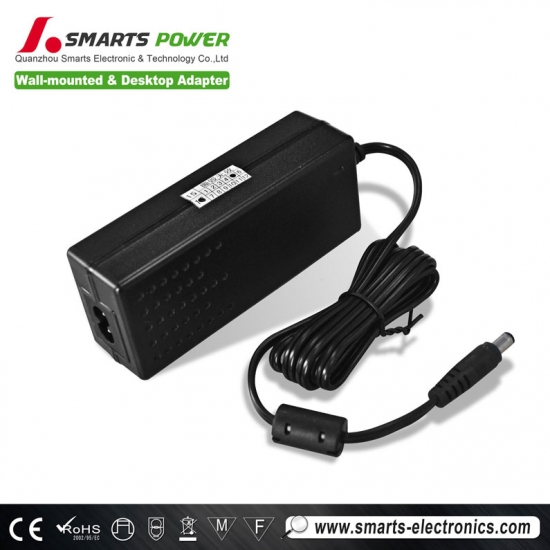

110vac to 24vdc 2a class II desktop type power supply

Product Description

 Parameter:

Model No.

Input (Vac)

output (Vdc)

Current (Amp)

power (Watt)

   Tol.

    R&N

    Effi.

SMT-012-048VP

100-240V

12Vdc

4Amp

48W

±4%

100mV

>82%

SMT-024-048VP

100-240V

24Vdc

2Amp

48W

±4%

100mV

>82%



 Specifications

  •  2 / 3 pole AC inlet IEC320-C8/14
  •  Fully enclosed plastic case
  • Class I power (with earth pin)
  • Pass LPS for 16~48V
  •  Full output 5~120V safety approved
  • LED indicator for power on
  • Protections: Short circuit / Overload /
  • Approvals:  CE / RoHS

General Specification

  • AC input voltage range ............. 100~240VAC / 2A
  • AC inrush current (max.) ...........Cold start, <40A at 230VAC
  • Overload protection................... Hiccup mode, auto-recovery
  • Over voltage protection .............110~140% rated output voltage
  • Hold up time...............................16ms at full load
  • Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
  • Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
  • Safety standards........................  TUV EN60950-1 approved
  • EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61347-1
  • Length of output cable................180cm of SPT-1,18AWG x2C
  • Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type

Environment :

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  • outdoor LED illuminating lights
  • LED Neon, LED City Decoration
  • LED Lighting Advertising
  • LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
high quality 24v 2a 48w desktop type switching power adapter for led light
Packaging & Shipping

Packing:
high quality 24v 2a 48w desktop type switching power adapter for led light



Company Information
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes...View this Supplier's Website

Our team

high quality 24v 2a 48w desktop type switching power adapter for led light


high quality 24v 2a 48w desktop type switching power adapter for led light

 CE ROHS Certification


Our Services
  • We are LED drivers/power supplies enterprise in China
  • Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial  experience. It will guarantee your order 100% safe
  • Price is negotiable if you have large quantity demand
  • 100% QC inspection Before Shipping
  • Best Quality & Best Service with Competitive price
  • Shipping will be the most economical for you and freight cost is informed in advance
  • consideration.decision for the shipping terms will be made according to your requirements
  • We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution
  • Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
  • OEM design & OEM packing welcome
  • Samples will be ready within 7 working days
FAQ

Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
