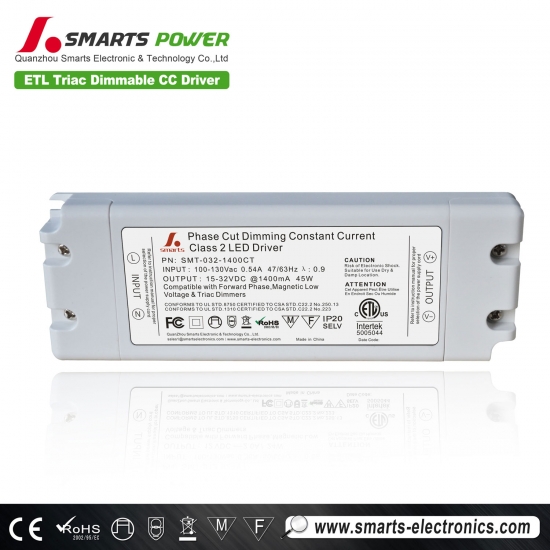

1400mA constant current led driver for triac dimming control
|
model |
SMT-120-0350CT |
SMT-065-0700CT |
SMT-050-0900CT |
SMT-045-1050CT |
SMT-032-1400CT |
||||
|
Output |
Rated current |
350mA |
700mA |
900mA |
1050mA |
1400mA |
|||
|
Voltage Accuracy |
±3% |
||||||||
|
DC Voltage |
90-120V |
40-65V |
25-50V |
25-45V |
15-32V |
||||
|
Rated power |
42W |
45W |
45W |
47W |
45W |
||||
|
Input |
Voltage Range |
90-135/170~265 VAC |
|||||||
|
Frequency Range |
47~63HZ |
||||||||
|
Power Factor ( Typ.) |
PF≧0.92@110V / PF≧0.95@220V (Full load) |
||||||||
|
Full Load Efficiency(Typ.) |
>85% |
>86% |
>86% |
>85% |
>85% |
||||
|
AC Current(Typ.) |
0.34A/180VAC 0.27A/220VAC 0.24A/250VAC |
||||||||
|
Leakage current |
﹤0.6mA/110VAC / ﹤0.7mA/220VAC |
||||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||||||
|
Overload |
≤120% |
||||||||
|
Over voltage |
≦140VAC or ≦270VAC |
||||||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||||||
|
Working Humidity |
20~90%RH,non-condensing |
||||||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||||||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||||||||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 Class 2 unit |
|||||||
|
Withstand voltage |
I/P-O/P:1500VAC |
||||||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||||
|
EMC EMISSION |
FCC Part 15 B |
||||||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV) |
||||||||
|
Others |
Weight |
0.55Kg |
|||||||
|
Size |
180*60*35mm(L*W*H) |
||||||||
|
packing |
350*195*180mm 20PCS/CTN |
||||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and 25℃ of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . 4. Loading should be 60-100%. |
||||||||
 |
 |
 |
 |
Specifications
- Dimming mode: traic dimmable
- working mode:constant current type
- PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
- Full Load Efficiency (Typ.): >85%
- AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
- Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
- Case material:plastic housing
- Waterproof rate: IP40
- unit weight: 0.34kg
- product size: 180*60*34mm
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment
- Output constant current
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function,PF >0.9
- Efficiency > 85%
- Protections:Short circuit/over Voltage
- Fully isolated plastic case
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Meet to safety standard and EMC.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
Environment
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
