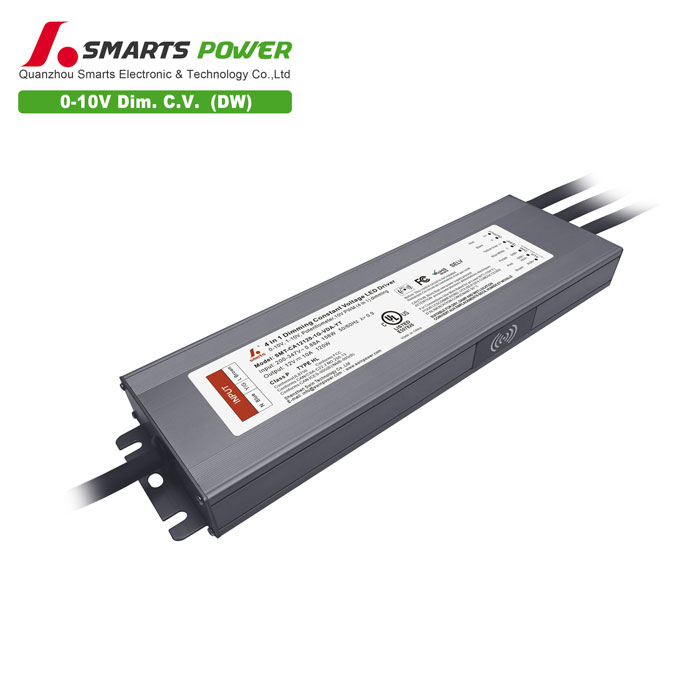

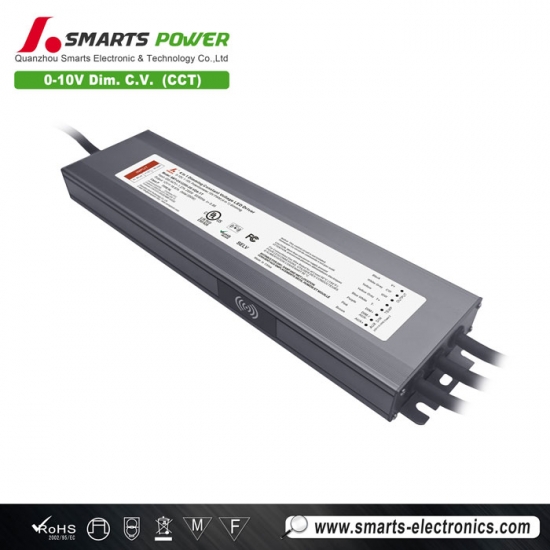

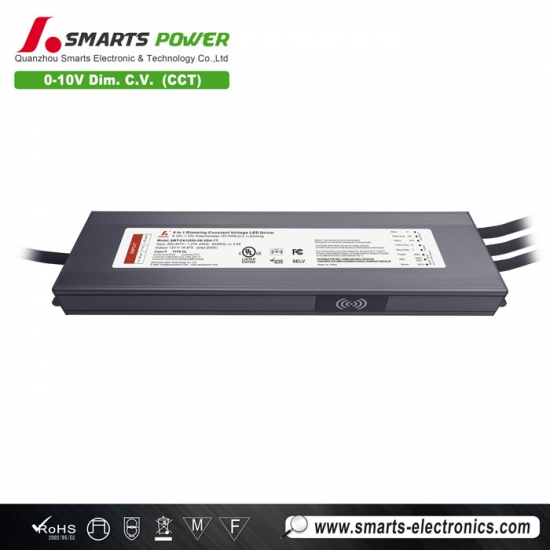

Aluminum housing, constant voltage 0-10V dimmable LED power supply, cooled by natural air convection, waterproof to IP67. Multiple frequencies available, LED driver parameters adjustable via NFC app. Suitable for the Canada Markets.
Specification
| Model | SMT-CA12200-2G-VDA-YT | SMT-CA24200-2G-VDA-YT | SMT-CA48200-2G-VDA-YT | |
| Certificate | cUL / FCC / CE / SELV / Class P /TYPE HL / RoHS / Reach/UKCA/ICES-005/Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12-13.5V | 24-26V | 48-50V | |
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±4% | ±2% | ±2% | |
| Overshoot | <6% | <3.5% | <3% | |
| RIPPLE & NOISE (max.) | 264mVp-p | 437mVp-p | 654mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Standby power | ≤0.5W | |||
| Power Factor (Typ.) @ full load |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
|
| Efficiency(Typ.) @ full load |
≥91.4%@230VAC ≥91.5%@277VAC ≥92%@347VAC |
≥93.5%@230VAC ≥94%@277VAC ≥94%@347VAC |
≥92.6%@230VAC ≥92.5%@277VAC ≥93%@347VAC |
|
| THD(Typ. ) @ full load | <8%@200VAC - 347VAC | |||
| AC Current (Max.) | 1A@230VAC 0.85A@277VAC 0.65A@347VAC | |||
| Inrush Current (Typ.) | 100A,259us@50%Ipeak 230VAC 120A,244us@50%Ipeak 277VAC 150A,259us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥115% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +200℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No.250.13 (US) | ||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity(EMS) | FCC/ICES do not request this test(EU)&FCC Part 15,Subpart B;ANSI C63.4-2014 (US) | |||
| EMC Emission(EMI) | EN55015 EN61000-3-2,3 (≥50%load) (EU) & FCC Part 15 Subpart B (US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 1.15kg each | ||
| Dimension | 279*78*25mm(L*W*H) | |||
| Packing | 330*300*215mm 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
Mechanical Specification
MCB recommendation
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 6 |
| 13A | 7 | |
| 16A | 9 | |
| 20A | 12 | |
| 25A | 15 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 7 |
| 13A | 9 | |
| 16A | 11 | |
| 20A | 14 | |
| 25A | 17 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 9 |
| 13A | 12 | |
| 16A | 14 | |
| 20A | 18 | |
| 25A | 23 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| DT100 | |
| Input wire | Brown(L) Bule(N) Yellow green(G)(3*17AWG) |
| Output wire |
12V:Red(V+) Black(V-)(2*14AWG) 24V:Red(V+) Black(V-)(2*16AWG) 48V:Red(V+) Black(V-)(2*18AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-/AUX-) Brown(AUX +)(3*18AWG) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Dimming Operation
Note：
1. The model name SMT-CAxx200-VDA means that there is no auxiliary power supply and lamp temperature detection, so there is no corresponding wiring for the LED driver.
2. The model name SMT-CAxx200-VDA-Y means that there is an auxiliary power supply but no lamp temperature detection, so the LED driver has no lamp temperature detection wiring.
3. The model name SMT-CAxx200-VDA-T means that there is no auxiliary power supply but there is lamp temperature detection, so the LED driver has no auxiliary power wiring.
4. The model name SMT-CAxx200-VDA-YT means that there is an auxiliary power supply and lamp temperature detection.
FC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|
Mode：SMT-CA12150-2G-VDA-YT intput voltage：200-347vac
Size : 232*78.1*25.3MM |
