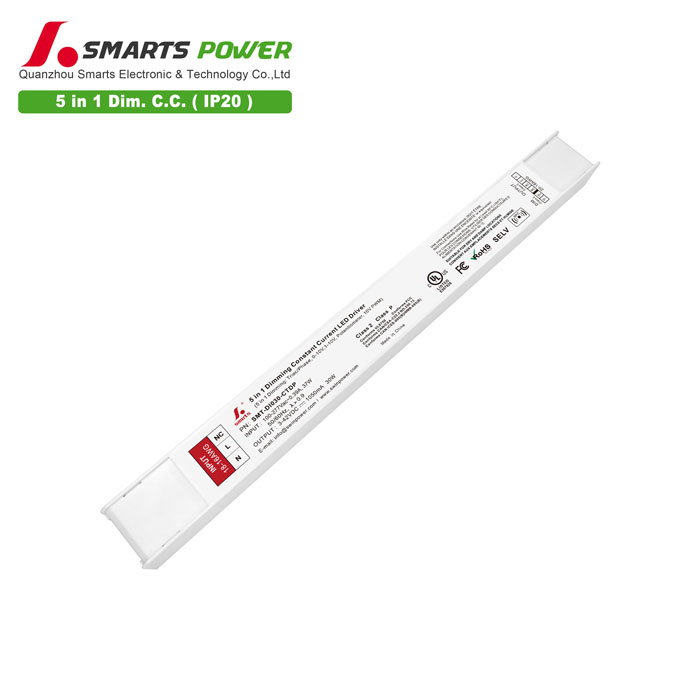

This constant-current 40W TRIAC & 0.10V dimmable LED power supply features built-in active PFC. It boasts an efficiency of up to 83%. Housed in a fully protective plastic housing, it's compatible with most commercially available triac and 0.10V dimmers, achieving smooth, stable, flicker-free dimming.
Specification
| Model | SMT-DI040-CTDP | |
| Certificate | UL / cUL / FCC / Class P | |
| Output | DC Voltage | 3-42V |
| Current Regulation | ±2% | |
| Current Ripple | <5% | |
| Overshoot Current | <0.1% | |
| Rated current | 400-1400mA(The output current can be adjusted arbitrarily within this range using NFC) | |
| Rated power | 40W | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.91@277VAC | |
| THD(Typ. ) @ full load | ≤16%@120VAC ≤23%@277VAC | |
| Efficiency(Typ.) @ full load | >82%@120VAC >83%@277VAC | |
| AC Current (Max.) | 0.51A | |
| Inrush Current (Typ.) | 3.5A, 50%, 28us @120VAC; 9A, 50%, 25us @277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
|
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) |
| Working Humidity | 20 - 90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10-500Hz, 2G 12 minutes/cycle, X, Y, Z axes each 72 minutes | |
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 |
| Withstand voltage | I/P-O/P: 3.75KVac | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | |
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 324.7*34.8*24.1mm(L*W*H) | |
| Packing | 340*270*195mm 50pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Tolerance: includes set up tolerance and load regulation . | ||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||
Mechanical Specification
| American wire gauge | |
| LN30 | |
| Input wire | Black (L) White (N) Green(G) (3C*18AWG) |
| Output wire | Black (V+) White&Gray(CW-) Yellow(WW-) (3C*18AWG) |
| Signal wire | Purple (D+) Pink(D-) (2C*18AWG) |
| Remarks: | |
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Please try to use dimmers with power at least 2 times as the output power of the driver
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|
Mode：SMT-DI030-CTDP intput voltage：100-277vac
Size : 324.7*34.8*24.1MM |
