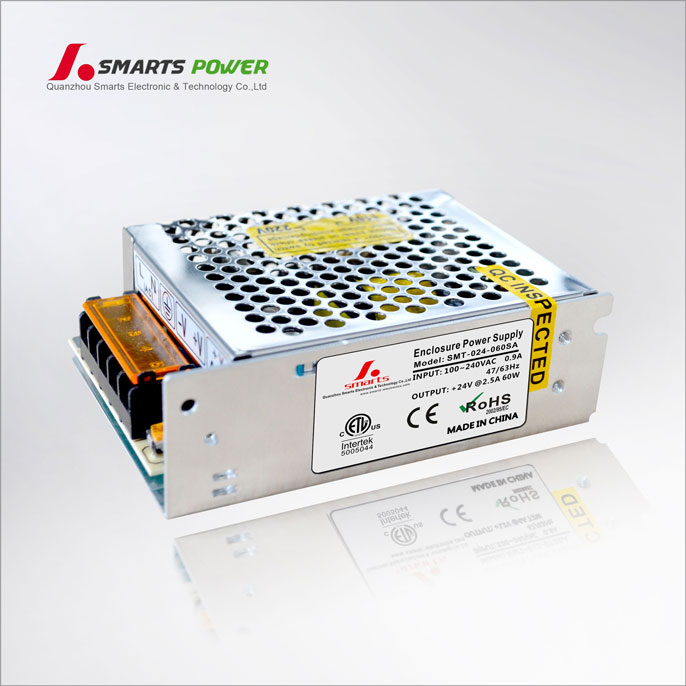

5v 12v 24v 36v 48v smps 60w enclosure power supply
5v 12v 24v 36v 48v smps 60w enclosure power supply is 110v ac 24 volt dc 60w led strip driver transformer
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
|
SMT-005-060SA
|
100-240V |
47~63HZ |
5 |
12.0A |
60W |
-25~50°C |
IP20 |
|
SMT-012-060SA
|
100-240V |
47~63HZ |
12 |
5.0A |
60W |
-25~50°C |
IP20 |
|
SMT-024-060SA
|
100-240V |
47~63HZ |
24 |
2.5A |
60W |
-25~50°C |
IP20 |
|
SMT-036-060SA
|
100-240V |
47~63HZ |
36 |
1.67A |
60W |
-25~50°C |
IP20 |
|
SMT-048-060SA |
100-240V |
47~63HZ |
48 |
1.25A |
60W |
-25~50°C |
IP20 |
Description of 24v 60w enclosure power supply
- Case material:metal case
- Input voltage: 100-240V
- output voltage 24V
- Frequency: 47-63Hz
- CE(EMC,LVD standard)ROHS approval
- 2 years warranty
Feature of smps
- Competitived price and high reliability
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effect
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
Environment of 5v 12v 24v 36v 48v smps
- Working temp,humidity: -10°C~+60°C,20%~90%RH
- storage temp,humidity: -20°C~+85°C,10%~95%RH non-condensing
- Withstand vibration: 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
Safety
- Withstand voltage: I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- Isolated resistance: I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
- EMC standard: Comply with EN55022,CLASSA
- MOQ: 1 pcs
- Payment: T/T, Western Union, Paypal, Trade Assurance.
- Delivery: 7 working days for sample order,12 working days for 500pcs.
- FOB , EXW and CIF all are available.
- Shipping freight are quoted under your requests.
- Loading port: Xiamen
- Discounts are offered based on large quantities.
