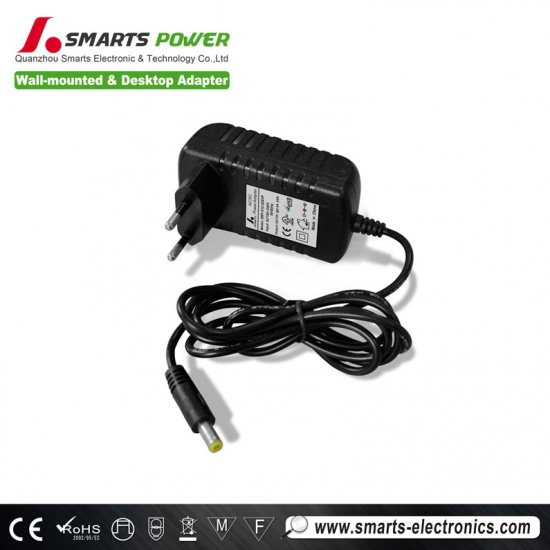

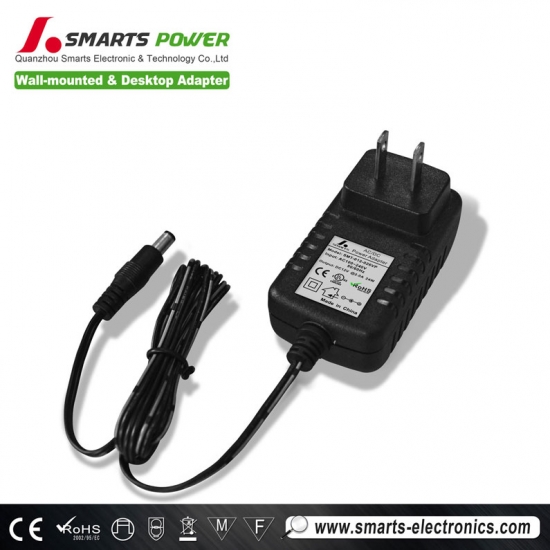

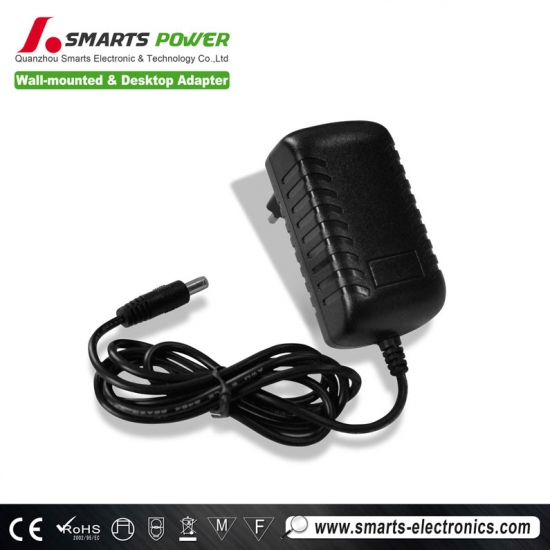

CE ETL VI transformer 12v 2.0a 2000ma 24W mini constant voltage LED drivers Power Adapters
The power adapter assure LED stability long lift and light efficiency by constant voltage, CE, ETL, ROHS VI approval 24 months warranty,we promise to replace new ones to you if there is any defective happen during the warranty period. We give Short circuit/Overload/Over temperature protection.
Item number
SMT-012-026VP---output: 12Vdc @2Amp 24watt IP20/non-waterproof
SMT-024-026VP---output: 24Vdc @1Amp 24watt IP20/non-waterproof
Output
Output Regulation(V)
Harf Load
Rating Load (A)
Voltage(V)
Minimum
Maximum
Current(A)
Continuous Current(A)
12V
11.4V
12.6V
0A
2.0A
Mounting Connectors
AC Input Connector
Spec :2Pin (CE UL PLUG)
DC Output Cable
Wire : (Optional) 24AWG*2C L=1200mm Color: Black
Plug : (Optional) 5.5 x 2.1x 10mm Turning fork line
Dimension(Size)
Length: 59.8mm
Width: 38.8mm
Height: 45mm
Safety
----Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
----Withstand Voltage : I/P-O/P: 3000KVAC
----Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Temperature
---Working temp: -30~+50℃ (Refer to output load derating curve)
---Working humidity: 20~99% RH non-condensing(Waterproof)
---Storage temp. humidity: -40~+80℃,10~99%RH
US,EU,UK, AU etc plug can be customized, samples will be ready within 7 working days
