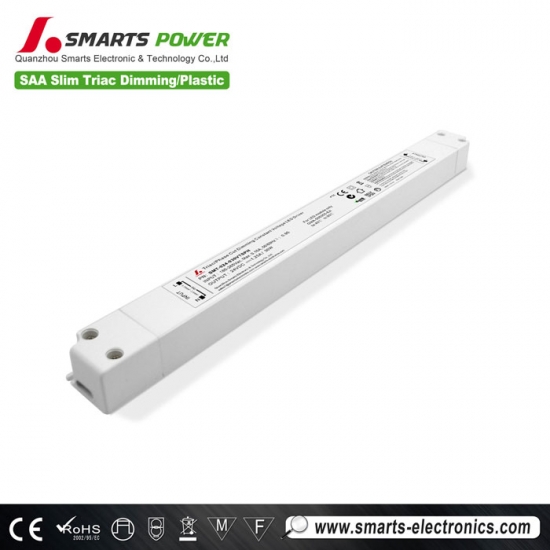

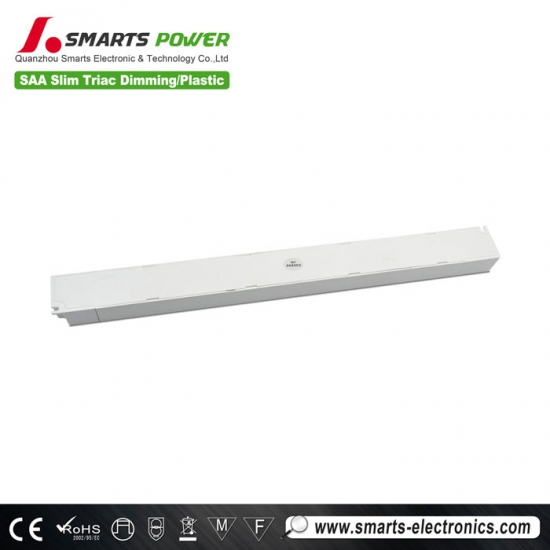

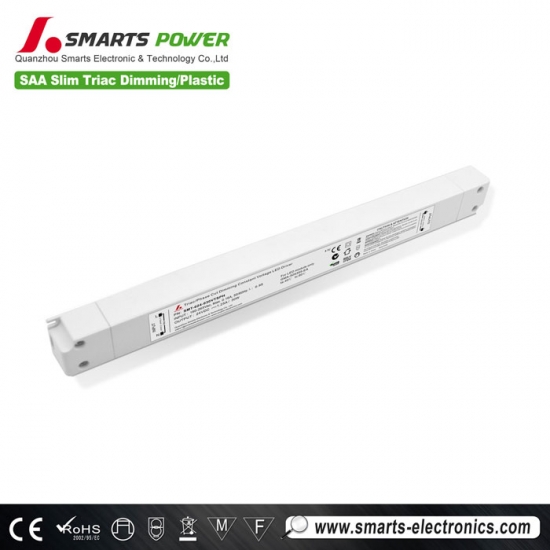

CE listed IP20 plastic slim 24 volt 30W triac dimmable led power supply
SMT-024-030VTSPH is CE listed IP20 plastic slim 24 volt 30W triac dimmable led power supply. Input voltage is 200-240Vac, super slim with height<30mm, widely<18.5mm. 7 years warranty.
Features for triac dimmable led power supply
·Output constant voltage
·Input voltage range 200-240VAC
·CE, ROHS approval
·Built-in PFC function / E fficiency > 88% / PF> 0.95
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP20 non-waterproof version
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output
·Strong compatibility, flicker-free dimming
·7 years warranty
model
SMT-012-030VTSPH
SMT-024-030VTSPH
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
2.5Amp
1.25Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
200-240 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.98/277V
Full Load Efficiency（Typ.）
>79%
>81%
AC Current（Typ.）
0.5A/100VAC / 0.13A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us
Leakage current
<0.27mA/110VAC; ﹤0.25mA/277VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
Others
Weight
0.35Kg
Size
260*32*20mm (L*W*H)
packing
50PCS/CTN
Label
 |
 |
 |
 |
 |
|

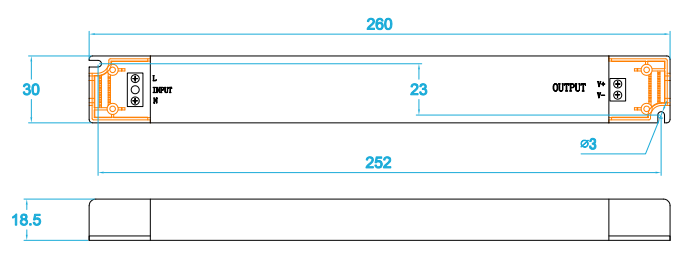

Mechanical Specification
Simple Connection Diagram for Triac Dimmable LED Driver
