Non-dimmable LED Driver

dc 36v lighting dimmable constant current led power supply 200ma

Dimmable led power supply for LED lighting with 100ma, 150ma or 200ma output current, with mini size to be used as inner driver or external power supply.


  • item no.:

    SMT-40-0200CDH
  • lead time:

    10 working days
  • product orgin:

    CHINA
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    T/T
  • color:

    WHITE
  • Input Voltage:

    180-265V
  • Output Voltage:

    28-40V
  • Output Current:

    200ma
  • Working Mode:

    constant current
  • Certification:

    CE ROHS
  • Warranty:

    3 years warranty
inquiry now
product details

dc 36v lighting dimmable constant current led power supply 200ma


28v - 40v dc dimmable led power supply for LED lighting with 100ma, 150ma or 200ma output current, with mini size to be used as inner driver or external power supply.



  Specification:


Model

SMT-50-0150CDH


SMT-40-0200CDH

SMT-32-0250CDH

SMT-28-0300CDH

Output

DC Current

150mA

200mA

250mA

300mA

Current Accuracy

±3%

Voltage Range

38-50V

28-40V

20-32V

16-28V

Rated power

8W

8W

8W

8W

Input

Voltage Range

180265VAC

Frequency Range

4763HZ

PF(Typ.

PF>0.9

Full Load EfficiencyTyp

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

AC Current (Typ.

0.104A(110V)

0.106A(220V)

0.102A(110V)

0.103A(220V)

0.102A(110V)

0.103A(220V)

0.101A(110V)

0.103A(220V)

Leakage current

<0.72mA/110VAC / 0.75mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

1.4*Iout

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13. IP20

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

0.2Kg

Size

85*45*26mmL*W*H

packing

320*280*215mm/50pcs /CTN   145*50*36mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated

   load and 25of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

   terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .



  Do all of the 0-10v dimming led power supply has protection?

All of the 0-10v dimming LED power supply in SMARTS have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge, this can garrantee the safety work suiitation for power supplies.


For example, if doing testing with this 200ma constant current led driver, the short- circuit test, put together The positive and negative wires, this will stop the working of power supply, and once seperate them, power supply will resume work.

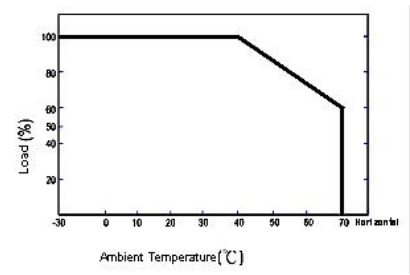

  Derating curve:



dimmable led power supply


Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
