Non-dimmable LED Driver

led driver 100 watt 12 volt dimmable driver with 5 years warranty

SMT-012- 100TDDR is 12vdc 100w din rail 5 in 1 dimmable constant voltage led driver with 5 years warranty.
  • item no.:

    SMT-012- 100TDDR
  • lead time:

    about 7 days after payment
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T,Paypal,westen union
  • color:

    white
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    8.33amp
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL. FCC Pending Class 2 .RoHs
  • Warranty:

    5 years warranty
inquiry now
product details
led driver 100 watt 12 volt dimmable driver with 5 years warranty

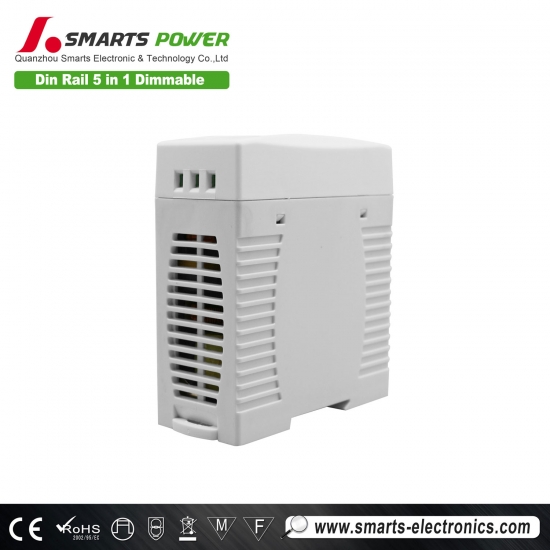

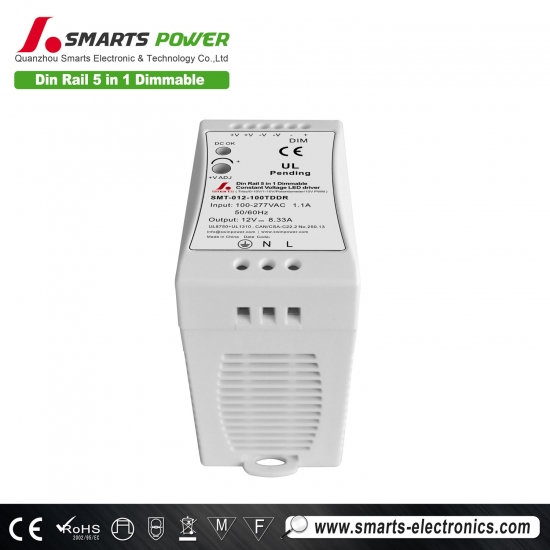

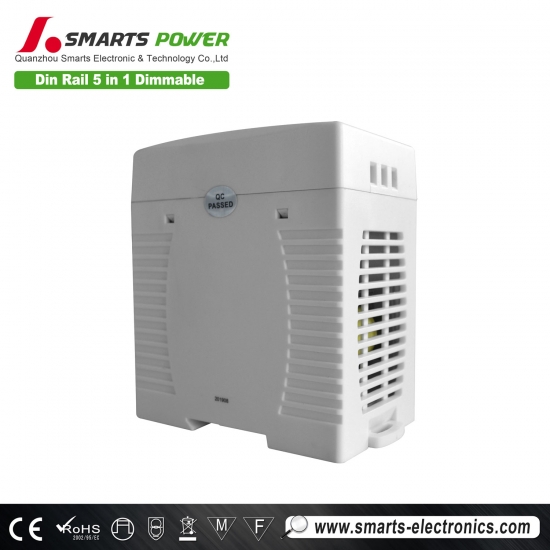

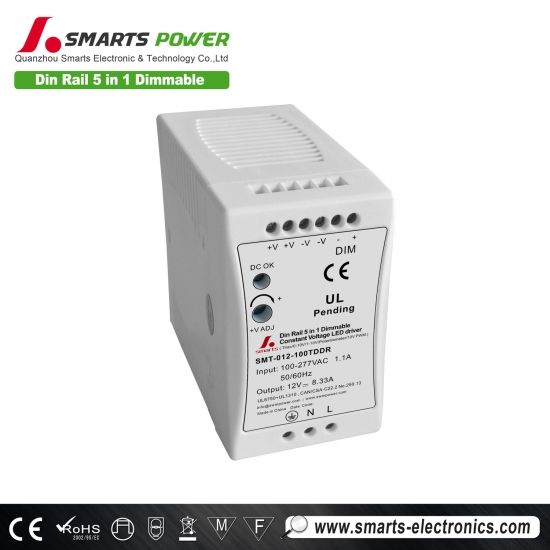

Smarts Electronics SMT-012- 100TDDR is Din Rail 5 in 1 (Triac/0-10V/1-10V/Potentiometer/10V PWM) led driver power supply which could meet UL cUL. FCC Pending Class 2 .RoHs certificate with 5 years warranty.


  Specification


model

SMT-012-100TDDR

SMT-024-096TDDR

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4.0Amp

Rated power

100W

96W (Class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC ,0.95@277VAC

0.98@120VAC ,0.95@277VAC



THD(Typ. ) @ full load

<20%@120VAC & 277VAC

Full Load Efficiency(Typ.)

83%@120VAC, 85%@277VAC

83%@120VAC, 86%@277VAC

AC Current(Typ.)

1.3A

Inrush Current(Typ.)

20A, 50%, 1.6ms @120VAC;  25A, 50% 1.2ms @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310 , CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

0.4Kg

Size

55*90*100mm(L*W*H)

packing

50PCS/CTN ,  carton size:330*330*130mm



Notes

1. What is class 2 standard?


Answer:  the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.




Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver

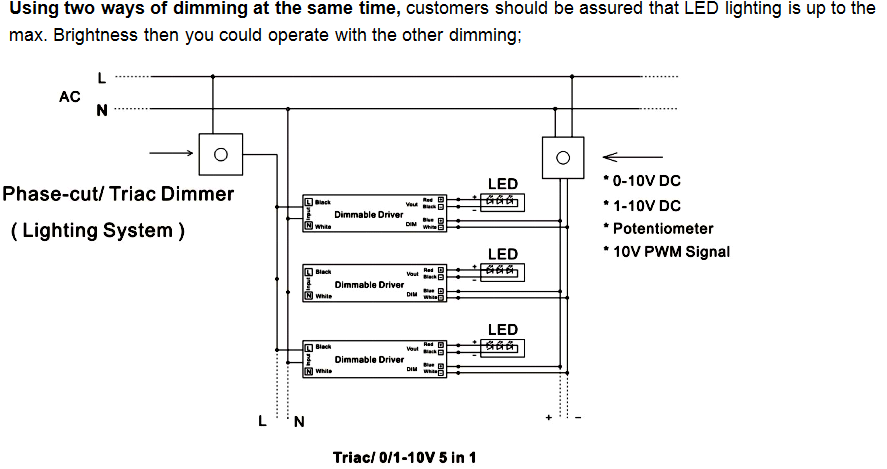

  Dimming Operation and Connecting Diagram


led driver 12v

led driver 100 watt

led driver 100 watt
