Non-dimmable LED Driver

Pass CE EMC Constant current led tube driver 900mA 24w for 3 years warranty

900mA  triac dimming led driver must be used parallel circuit ,that means is a constant current led driver model,which is 100% full-load burn-in test
  • item no.:

    SMT-025-0900CTH
  • lead time:

    About 7 working days for samples after r
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union
  • color:

    White
  • Input Voltage:

    180-265vAC
  • Output Voltage:

    13-25v
  • Output Current:

    900ma
  • Working Mode:

    constant current
  • Certification:

    CE ROHS
  • Warranty:

    3 years warranty
inquiry now
product details

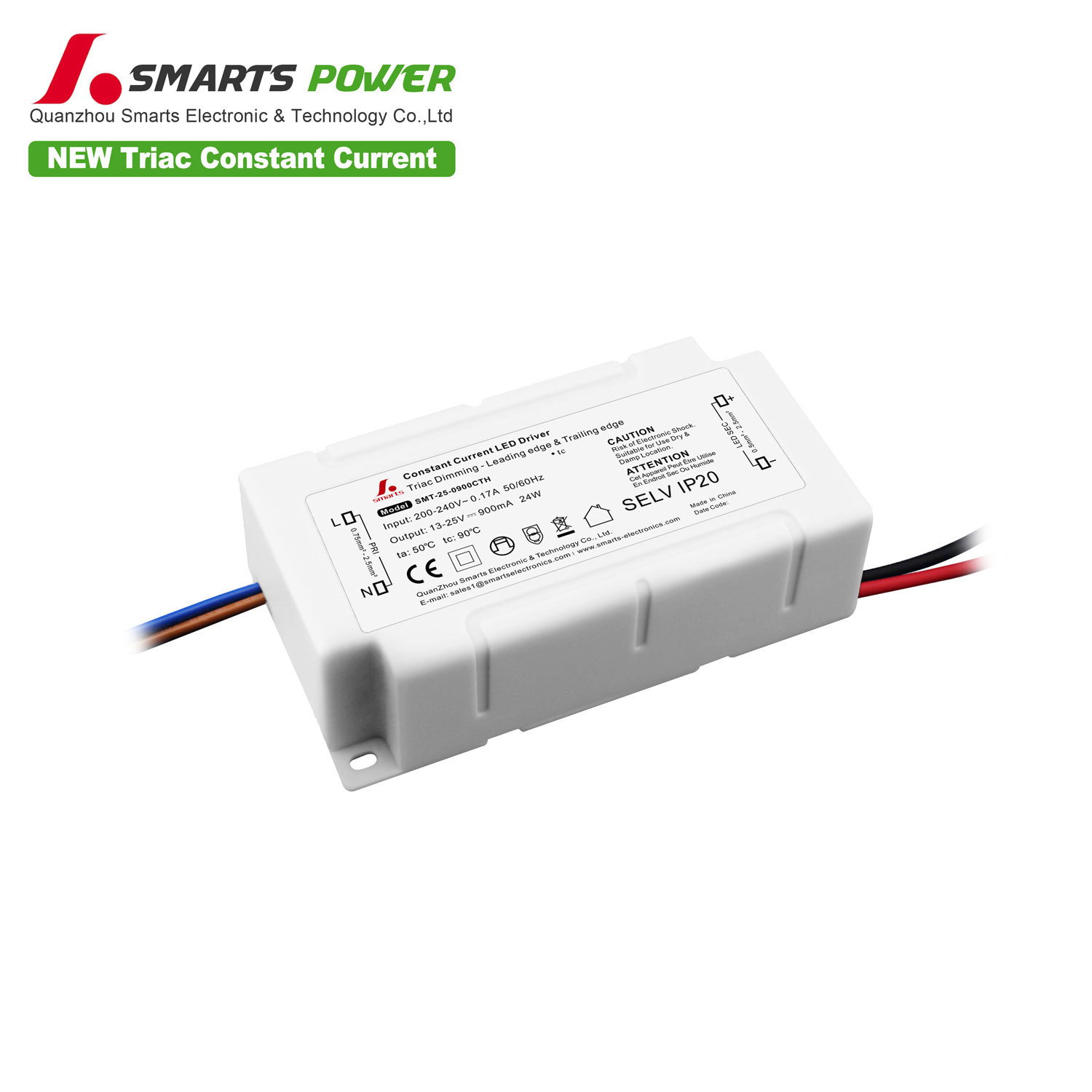

Pass CE EMC Constant current led tube driver 900mA 24w for 3 years warranty


900mA 24w led driver can be used in t5 t8 t10 isolated led tube light,that is a parallel circuit triac dimmable constant current led driver


Specification:


triac dimmable led driver


 Feture:


Model: SMT-025-0900CTH

DC Current :900mA

Output Voltage Range :13-25V

Output Rated power :24W

Input voltage range:180-265vAC

Frequency Range 47~63HZ

Current Accuracy±5%

Warranty:3 years

CE ROHS approval

PFC>0.90, Efficiency>0.85

Compact size,light weight

100% full-load burn-in test

With short-circuit and overload projection


Analysis problem

Question

What is class 2 standard?

Answer:

 the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.




Packing & Shipping:

inner box-white box + outer carton- standard exporting carton for packing



triac dimmable led driver





  1. MOQ: 1 pcs
  2. Delivery: 7 working days for sample order,12 working days for 500pcs.
  3. Shipping freight are quoted under your requests.
  4. Loading port: Xiamen





Send Us An Inquiry

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
