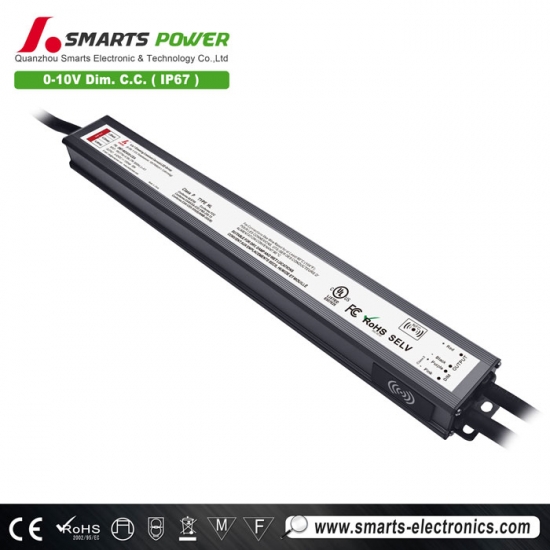

The fully aluminum housing is IP67 waterproof and features a 0 10V dimmable LED power supply 30W with short-circuit, over-temperature, overload, and overvoltage protection. The dimming range is stable and smooth from 1-100%, with no flicker.
Specification
| Model | SMT-WDI030-CDA | ||
| Certificate | ENEC / UL / cUL / FCC / SELV / CE / ROHS / Reach / Class P / Type HL / UKCA | ||
| Output | DC Voltage | 3-42V | |
| Current Regulation | ±2% | ||
| Current Ripple | <3% | ||
| Overshoot Current | <0.1% | ||
| Rated current | 300-1050mA(The output current can be adjusted arbitrarily within this range using NFC) | ||
| Rated power | 30W | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.95@230VAC >0.9@277VAC | ||
| THD(Typ. ) @ full load | ≤14%@120VAC ≤18%@230VAC ≤23%@277VAC | ||
| Efficiency(Typ.) @ full load | >83%@120VAC >83%@230VAC >82%@277VAC | ||
| AC Current (Max.) | 0.39A | ||
| Inrush Current (Typ.) | 4.5A, 50%, 84us @120VAC; 9A, 50%, 84us @230VAC; 11A, 50%, 84us @277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination | |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 12 minutes/cycle, 72 minutes each in X, Y, and Z axes | ||
| Safety & EMC | Safety standards | American regulations: | European regulations: |
| UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 | EN61347-1 EN61347-2-13 | ||
| Withstand voltage | American regulations: | European regulations: | |
| I/P-O/P: 3.75KVac; I/P-FG: 1.88KVac; O/P-FG: 1.88KVac | I/P-O/P: 3.75KVac; I/P-FG: 1.5KVac; O/P-FG: 0.5KVac | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||
| EMC Emission | American regulations: | European regulations: | |
| FCC 47 CFR Part 15, Subpart B (US) | EN55015 EN 61000-3-3 | ||
| Others | Net Weight | 0.5KG | |
| Dimension | 314.7*38.5*23.6mm(L*W*H) | ||
| Packing | 380*295*210mm 30pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
Mechanical Specification
| American wire gauge | |
| LN30 | |
| Input wire | Black (L) White (N) Green(G) (3C*18AWG) |
| Output wire | Black (V+) White&Gray(CW-) Yellow(WW-) (3C*18AWG) |
| Signal wire | Purple (D+) Pink(D-) (2C*18AWG) |
| Remarks: | |
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm2) x 10A/mm2.
For example: 1mm2output cable, Recommended Max. Carrying Current (A) = 1mm2 x 10A/mm2=10A
Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|

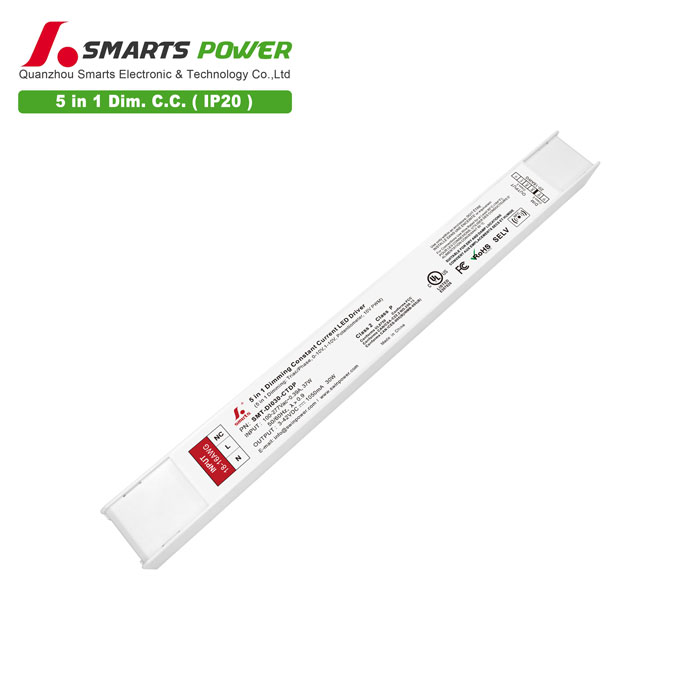

Mode：SMT-DI030-CTDP intput voltage：100-277vac
Size : 314.7*38.5*23.6MM |
